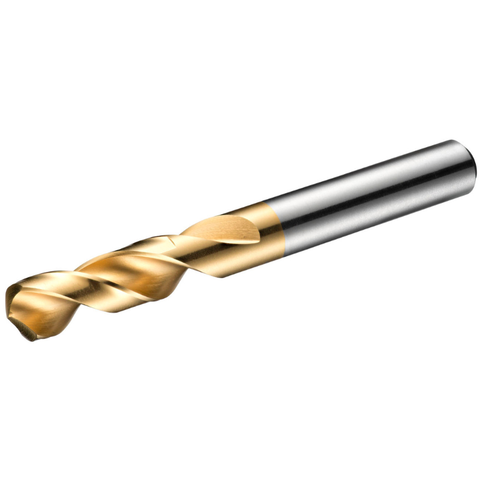

Dormer Pramet A520 9.60 mm HSS TiN ADX STRAIGHT SHANK STUB DRILL DIN 1897
| Type | Short Series |
| Drill Diameter | 9.60 |
| Flute Length | 43 |
| Overall Length | 89 |
Learn more about Klarna
Description
The Dormer Pramet A520 9.60 mm HSS TiN ADX Straight Shank Stub Drill (DIN 1897) is a versatile, high-performance drill designed for precise holemaking across a wide range of metals, including steel, aluminium, and stainless steel. With a 9.60 mm diameter and a straight shank, it’s built for dependable, repeatable results in production runs, maintenance tasks, and DIY projects. It delivers high-quality, accurate holes even at higher speeds and feeds, achieving H9 hole tolerance for consistent fits.
- 130° Thinned Point for Easy Self-Centering: Promotes clean starts by self-centering the hole and reducing the push force required from the operator, helping you begin drilling with confidence.
- TiN Coating for Longer Life and Performance: Titanium Nitride coating extends tool life and enhances performance when drilling harder materials, reducing tool changes and downtime.
- Convex Cutting Edges for Efficient Chip Control: Convex edges break chips more effectively, aid removal, and permit higher cutting speeds and feeds for faster, smoother drilling.
This combination of a premium HSS base, TiN coating, and a precisely engineered 130° point, all in a DIN 1897 straight-shank form, makes the drill a reliable choice for engineers, machinists, and hobbyists alike. Expect consistent hole quality, reduced rework, and dependable performance across common metals, from everyday steel to stainless applications.
Part Numbers
- Protool Part Number
- DOR-A5209.6
- Brand
- Dormer Pramet
- Category
- Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet A520 HSS TiN ADX STRAIGHT SHANK STUB DRILLS DIN 1897
View full collection →You are viewing DOR-A5209.6. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| DOR-A5203.0 | 3.00 | 16 | 46 | 3 | £7.80 | 2 days | |
| DOR-A5203.1 | 3.10 | 18 | 49 | 3.1 | £11.10 | 2 days | |
| DOR-A5201/8 | 1/8 | 18 | 49 | 3.18 | £7.83 | 2 days | |
| DOR-A5203.2 | 3.20 | 18 | 49 | 3.2 | £11.10 | 2 days | |
| DOR-A5203.3 | 3.30 | 18 | 49 | 3.3 | £7.63 | 2 days | |
| DOR-A5203.4 | 3.40 | 20 | 52 | 3.4 | £13.22 | 2 days | |
| DOR-A5203.5 | 3.50 | 20 | 52 | 3.5 | £9.01 | 2 days | |
| DOR-A5203.6 | 3.60 | 20 | 52 | 3.6 | £12.72 | 2 days | |
| DOR-A5203.7 | 3.70 | 20 | 52 | 3.7 | £12.63 | 2 days | |
| DOR-A5203.8 | 3.80 | 22 | 55 | 3.8 | £13.04 | 2 days | |
| DOR-A5203.9 | 3.90 | 22 | 55 | 3.9 | £13.57 | 2 days | |
| DOR-A5204.0 | 4.00 | 22 | 55 | 4 | £10.00 | 2 days | |
| DOR-A5204.1 | 4.10 | 22 | 55 | 4.1 | £10.00 | 2 days | |
| DOR-A5204.2 | 4.20 | 22 | 55 | 4.2 | £11.67 | 2 days | |
| DOR-A5204.3 | 4.30 | 24 | 58 | 4.3 | £15.88 | 2 days | |
| DOR-A52011/64 | 11/64 | 24 | 58 | 4.37 | £11.92 | 2 days | |
| DOR-A5204.4 | 4.40 | 24 | 58 | 4.4 | £16.20 | 2 days | |
| DOR-A5204.5 | 4.50 | 24 | 58 | 4.5 | £11.95 | 2 days | |
| DOR-A5204.6 | 4.60 | 24 | 58 | 4.6 | £15.18 | 2 days | |
| DOR-A5204.7 | 4.70 | 24 | 58 | 4.7 | £16.20 | 2 days | |
| DOR-A5203/16 | 3/16 | 26 | 62 | 4.76 | £11.92 | 2 days | |
| DOR-A5204.8 | 4.80 | 26 | 62 | 4.8 | £16.20 | 2 days | |
| DOR-A5204.9 | 4.90 | 26 | 62 | 4.9 | £12.84 | 2 days | |
| DOR-A5205.0 | 5.00 | 26 | 62 | 5 | £12.13 | 2 days | |
| DOR-A5205.1 | 5.10 | 26 | 62 | 5.1 | £19.26 | 2 days | |
| DOR-A5205.2 | 5.20 | 26 | 62 | 5.2 | £18.76 | 2 days | |
| DOR-A5205.3 | 5.30 | 26 | 62 | 5.3 | £19.26 | 2 days | |
| DOR-A5205.4 | 5.40 | 28 | 66 | 5.4 | £20.70 | 2 days | |
| DOR-A5205.5 | 5.50 | 28 | 66 | 5.5 | £15.40 | 2 days | |
| DOR-A5207/32 | 7/32 | 28 | 66 | 5.56 | £16.04 | 2 days | |
| DOR-A5205.6 | 5.60 | 28 | 66 | 5.6 | £20.43 | 2 days | |
| DOR-A5205.7 | 5.70 | 28 | 66 | 5.7 | £20.67 | 2 days | |
| DOR-A5205.8 | 5.80 | 28 | 66 | 5.8 | £19.71 | 2 days | |
| DOR-A5205.9 | 5.90 | 28 | 66 | 5.9 | £25.25 | 2 days | |
| DOR-A5206.0 | 6.00 | 28 | 66 | 6 | £15.06 | 2 days | |
| DOR-A5206.1 | 6.10 | 31 | 70 | 6.1 | £25.93 | 2 days | |
| DOR-A5206.2 | 6.20 | 31 | 70 | 6.2 | £26.04 | 2 days | |
| DOR-A5206.3 | 6.30 | 31 | 70 | 6.3 | £26.31 | 2 days | |
| DOR-A5201/4 | 1/4 | 31 | 70 | 6.35 | £19.44 | 2 days | |
| DOR-A5206.4 | 6.40 | 31 | 70 | 6.4 | £25.78 | 2 days | |
| DOR-A5206.5 | 6.50 | 31 | 70 | 6.5 | £19.65 | 2 days | |
| DOR-A5206.6 | 6.60 | 31 | 70 | 6.6 | £26.81 | 2 days | |
| DOR-A5206.7 | 6.70 | 31 | 70 | 6.7 | £26.55 | 2 days | |
| DOR-A52017/64 | 17/64 | 34 | 74 | 6.75 | £26.57 | 2 days | |
| DOR-A5206.8 | 6.80 | 34 | 74 | 6.8 | £27.98 | 2 days | |
| DOR-A5206.9 | 6.90 | 34 | 74 | 6.9 | £32.73 | 2 days | |
| DOR-A5207.0 | 7.00 | 34 | 74 | 7 | £21.23 | 2 days | |
| DOR-A5207.1 | 7.10 | 34 | 74 | 7.1 | £35.54 | 2 days | |
| DOR-A5209/32 | 9/32 | 34 | 74 | 7.14 | £21.89 | 2 days | |
| DOR-A5207.2 | 7.20 | 34 | 74 | 7.2 | £35.32 | 2 days | |
| DOR-A5207.4 | 7.40 | 34 | 74 | 7.4 | £35.32 | 2 days | |
| DOR-A5207.5 | 7.50 | 34 | 74 | 7.5 | £25.14 | 2 days | |
| DOR-A5207.8 | 7.80 | 37 | 79 | 7.8 | £37.35 | 2 days | |
| DOR-A5207.9 | 7.90 | 37 | 79 | 7.9 | £42.83 | 2 days | |
| DOR-A5205/16 | 5/16 | 37 | 79 | 7.94 | £26.07 | 2 days | |
| DOR-A5208.0 | 8.00 | 37 | 79 | 8 | £26.28 | 2 days | |
| DOR-A5208.1 | 8.10 | 37 | 79 | 8.1 | £43.62 | 2 days | |
| DOR-A5208.2 | 8.20 | 37 | 79 | 8.2 | £45.22 | 2 days | |
| DOR-A5208.3 | 8.30 | 37 | 79 | 8.3 | £45.17 | 2 days | |
| DOR-A5208.4 | 8.40 | 37 | 79 | 8.4 | £45.22 | 2 days | |
| DOR-A5208.5 | 8.50 | 37 | 79 | 8.5 | £34.22 | 2 days | |
| DOR-A5208.6 | 8.60 | 40 | 84 | 8.6 | £47.35 | 2 days | |
| DOR-A5208.7 | 8.70 | 40 | 84 | 8.7 | £46.28 | 2 days | |
| DOR-A52011/32 | 11/32 | 40 | 84 | 8.73 | £36.60 | 2 days | |
| DOR-A5208.8 | 8.80 | 40 | 84 | 8.8 | £45.28 | 2 days | |
| DOR-A5209.0 | 9.00 | 40 | 84 | 9 | £33.68 | 2 days | |
| DOR-A5209.1 | 9.10 | 40 | 84 | 9.1 | £57.46 | 2 days | |
| DOR-A5209.5 | 9.50 | 40 | 84 | 9.5 | £44.75 | 2 days | |
| DOR-A5203/8 | 3/8 | 43 | 89 | 9.52 | £44.75 | 2 days | |
| DOR-A5209.6 Viewing | 9.60 | 43 | 89 | 9.6 | £59.05 | 2 days | |
| DOR-A5209.7 | 9.70 | 43 | 89 | 9.7 | £57.46 | 2 days | |
| DOR-A52025/64 | 25/64 | 43 | 89 | 9.92 | £64.37 | 2 days | |
| DOR-A52010.0 | 10.00 | 43 | 89 | 10 | £42.35 | 2 days | |
| DOR-A52010.1 | 10.10 | 43 | 89 | 10.1 | £59.58 | 2 days | |
| DOR-A52010.2 | 10.20 | 43 | 89 | 10.2 | £59.58 | 2 days | |
| DOR-A52010.3 | 10.30 | 43 | 89 | 10.3 | £64.90 | 2 days | |
| DOR-A52013/32 | 13/32 | 43 | 89 | 10.32 | £70.76 | 2 days | |
| DOR-A52010.5 | 10.50 | 43 | 89 | 10.5 | £60.12 | 2 days | |
| DOR-A52027/64 | 27/64 | 47 | 95 | 10.72 | £82.46 | 2 days | |
| DOR-A52010.8 | 10.80 | 47 | 95 | 10.8 | £87.78 | 2 days | |
| DOR-A52011.0 | 11.00 | 47 | 95 | 11 | £58.52 | 2 days | |
| DOR-A52011.1 | 11.10 | 47 | 95 | 11.1 | £82.46 | 2 days | |
| DOR-A5207/16 | 7/16 | 47 | 95 | 11.11 | £60.12 | 2 days | |
| DOR-A52011.3 | 11.30 | 47 | 95 | 11.3 | £86.72 | 2 days | |
| DOR-A52011.5 | 11.50 | 47 | 95 | 11.5 | £71.82 | 2 days | |
| DOR-A52011.7 | 11.70 | 47 | 95 | 11.7 | £86.72 | 2 days | |
| DOR-A52011.8 | 11.80 | 47 | 95 | 11.8 | £86.72 | 2 days | |
| DOR-A52012.0 | 12.00 | 51 | 102 | 12 | £68.63 | 2 days | |
| DOR-A52012.1 | 12.10 | 51 | 102 | 12.1 | £108.00 | 2 days | |
| DOR-A52012.2 | 12.20 | 51 | 102 | 12.2 | £103.21 | 2 days | |
| DOR-A52031/64 | 31/64 | 51 | 102 | 12.3 | £110.66 | 2 days | |
| DOR-A52012.5 | 12.50 | 51 | 102 | 12.5 | £89.38 | 2 days | |
| DOR-A5201/2 | 1/2 | 51 | 102 | 12.7 | £69.16 | 2 days | |
| DOR-A52012.8 | 12.80 | 51 | 102 | 12.8 | £109.59 | 2 days | |
| DOR-A52013.0 | 13.00 | 51 | 102 | 13 | £79.27 | 2 days |
