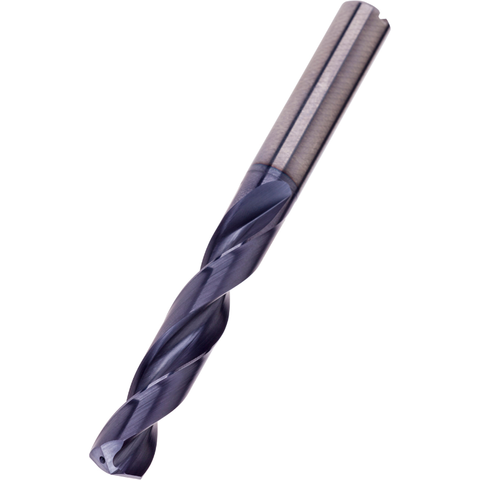

Dormer Pramet R463 13.00 mm CARBIDE TIALN FORCE-M STEPPED SHANK COOLANT FEED LONG SERIES (X5D) DRILL DIN 6537 L

The Dormer Pramet R463 13.00 mm carbide drill is engineered for stainless steel and other heat‑resistant alloys, delivering clean, accurate holes in demanding metalworking tasks. With a DIN 6537 L long-series shank and a coolant‑fed design, it’s built for deep‑hole drilling where reach and reliability matter.

This drill combines a 140° four‑facet split point for easy starts and self‑centering, a Titanium Aluminum Nitride (TiAlN) coating to extend tool life, and premium carbide material to maintain high performance at faster speeds and feeds.

• Titanium Aluminum Nitride Coating: TiAlN coating increases wear resistance and extends tool life when drilling stainless steel and other heat‑resistant alloys, helping you finish more holes with fewer tool changes.
• 140° Four‑Facet Split Point: Self‑centering geometry reduces wander and lowers the start‑up push force, yielding cleaner holes and easier, more dependable starts.
• Special Flute Design with Coolant Feed: CTW flute design with coolant feed supports higher cutting speeds and feeds, improves chip evacuation, and, with the long-series stepped shank, enables deeper reach and stable, accurate drilling.

Designed for professionals who demand consistency, this drill delivers reliable hole quality (H9 tolerance) at speed, empowering faster cycles, fewer interruptions, and professional finishes on challenging materials. Its rugged carbide core and coating work together to maximize productivity while maintaining precise results across multiple demanding applications.
