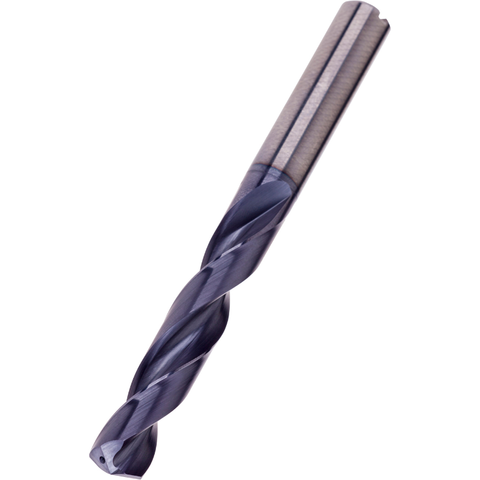

Dormer Pramet R463 15.50 mm CARBIDE TIALN FORCE-M STEPPED SHANK COOLANT FEED LONG SERIES (X5D) DRILL DIN 6537 L

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Dormer Pramet R463 15.50 mm CARBIDE TIALN FORCE-M STEPPED SHANK COOLANT FEED LONG SERIES (X5D) DRILL DIN 6537 L

Name: Dormer Pramet R463 15.50 mm CARBIDE TIALN FORCE-M STEPPED SHANK COOLANT FEED LONG SERIES (X5D) DRILL DIN 6537 L
Brand: Dormer Pramet
SKU: DOR-R46315.5
Price: 226.65 GBP
Availability: InStock

SKU:DOR-R46315.5

The Dormer Pramet R463 is a 15.50 mm carbide drill built for serious metalworking tasks. With a long DIN 6537 L shank and coolant feed, it is designed to deliver precise holes in stainless steel ... Read more ↓

Material Compatibility

Specifications at a glance

Type	Long Series
Drill Diameter	15.50
Flute Length	82
Overall Length	133

View all specifications ↓

£226.65

Prices shown ex. VAT

2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

Self-centering point design: 140° four‑facet split point helps the drill start cleanly, reduces the push force needed at entry, and minimizes wandering for accurate hole starts.
TiAlN coating for longer life: The titanium aluminum nitride coating boosts wear resistance and tool life, delivering consistent performance when drilling hard materials.
Special CTW flute design with coolant feed: Enhanced strength and chip evacuation allow higher cutting speeds and feeds, while the coolant channel helps maintain cooler operation and stable holes.

Designed for high-precision, high-speed drilling, this drill maintains hole quality (h9 tolerance) even in demanding materials. Its premium carbide composition, coating, and advanced flute geometry translate to fewer Tool changes, lower rework, and more reliable results across workshops, fabrication shops, and maintenance tasks. The long shank and coolant feed further support deep-hole drilling in production environments, helping you complete jobs faster with confidence.

Part Numbers

Protool Part Number: DOR-R46315.5
Brand: Dormer Pramet
Category: Drill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Dormer Pramet R463 CARBIDE TIALN FORCE-M STEPPED SHANK COOLANT FEED LONG SERIES (X5D) DRILLS DIN 6537 L

View full collection →

You are viewing DOR-R46315.5. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

DOR-R4633.0	3.00	28	66	6	£69.74	2 days
DOR-R4633.1	3.10	28	66	6	£69.74	2 days
DOR-R4631/8	1/8	28	66	6	£69.74	2 days
DOR-R4633.2	3.20	28	66	6	£69.74	2 days
DOR-R4633.3	3.30	28	66	6	£69.74	2 days
DOR-R4633.4	3.40	28	66	6	£69.74	2 days
DOR-R463N29	3.45	28	66	6	£69.74	2 days
DOR-R4633.5	3.50	28	66	6	£69.74	2 days
DOR-R4639/64	9/64	28	66	6	£69.74	2 days
DOR-R4633.6	3.60	28	66	6	£69.74	2 days
DOR-R4633.7	3.70	28	66	6	£69.74	2 days
DOR-R4633.8	3.80	36	74	6	£69.74	2 days
DOR-R4633.9	3.90	36	74	6	£69.74	2 days
DOR-R4635/32	5/32	36	74	6	£69.74	2 days
DOR-R4634.0	4.00	36	74	6	£69.74	2 days
DOR-R4634.05	4.05	36	74	6	£71.99	2 days
DOR-R4634.1	4.10	36	74	6	£71.99	2 days
DOR-R4634.2	4.20	36	74	6	£71.99	2 days
DOR-R4634.3	4.30	36	74	6	£71.99	2 days
DOR-R46311/64	11/64	36	74	6	£71.99	2 days
DOR-R4634.4	4.40	36	74	6	£71.99	2 days
DOR-R4634.5	4.50	36	74	6	£71.99	2 days
DOR-R4634.6	4.60	36	74	6	£71.99	2 days
DOR-R4634.7	4.70	36	74	6	£71.99	2 days
DOR-R4633/16	3/16	44	82	6	£71.99	2 days
DOR-R4634.8	4.80	44	82	6	£71.99	2 days
DOR-R4634.9	4.90	44	82	6	£71.99	2 days
DOR-R4635.0	5.00	44	82	6	£71.99	2 days
DOR-R4635.05	5.05	44	82	6	£71.99	2 days
DOR-R4635.1	5.10	44	82	6	£71.99	2 days
DOR-R463N7	5.11	44	82	6	£71.99	2 days
DOR-R46313/64	13/64	44	82	6	£71.99	2 days
DOR-R4635.2	5.20	44	82	6	£71.99	2 days
DOR-R463N5	5.22	44	82	6	£71.99	2 days
DOR-R4635.3	5.30	44	82	6	£71.99	2 days
DOR-R4635.5	5.50	44	82	6	£71.99	2 days
DOR-R4637/32	7/32	44	82	6	£71.99	2 days
DOR-R4635.6	5.60	44	82	6	£71.99	2 days
DOR-R4635.7	5.70	44	82	6	£71.99	2 days
DOR-R4635.8	5.80	44	82	6	£71.99	2 days
DOR-R4635.9	5.90	44	82	6	£71.99	2 days
DOR-R46315/64	15/64	44	82	6	£71.99	2 days
DOR-R4636.0	6.00	44	82	6	£71.99	2 days
DOR-R4636.05	6.05	53	91	8	£82.67	2 days
DOR-R4636.1	6.10	53	91	8	£82.67	2 days
DOR-R4636.2	6.20	53	91	8	£82.67	2 days
DOR-R4636.3	6.30	53	91	8	£82.67	2 days
DOR-R4631/4	1/4	53	91	8	£82.67	2 days
DOR-R4636.4	6.40	53	91	8	£82.67	2 days
DOR-R4636.5	6.50	53	91	8	£82.67	2 days
DOR-R4636.6	6.60	53	91	8	£82.67	2 days
DOR-R4636.7	6.70	53	91	8	£82.67	2 days
DOR-R46317/64	17/64	53	91	8	£82.67	2 days
DOR-R4636.8	6.80	53	91	8	£82.67	2 days
DOR-R4636.9	6.90	53	91	8	£82.67	2 days
DOR-R4637.0	7.00	53	91	8	£82.67	2 days
DOR-R4637.1	7.10	53	91	8	£82.67	2 days
DOR-R4637.2	7.20	53	91	8	£82.67	2 days
DOR-R4637.3	7.30	53	91	8	£82.67	2 days
DOR-R4637.4	7.40	53	91	8	£82.67	2 days
DOR-R4637.5	7.50	53	91	8	£82.67	2 days
DOR-R4637.6	7.60	53	91	8	£82.67	2 days
DOR-R4637.7	7.70	53	91	8	£82.67	2 days
DOR-R4637.8	7.80	53	91	8	£82.67	2 days
DOR-R4637.9	7.90	53	91	8	£82.67	2 days
DOR-R4635/16	5/16	53	91	8	£82.67	2 days
DOR-R4638.0	8.00	53	91	8	£82.67	2 days
DOR-R4638.05	8.05	61	103	10	£93.36	2 days
DOR-R4638.1	8.10	61	103	10	£93.36	2 days
DOR-R4638.2	8.20	61	103	10	£93.36	2 days
DOR-R4638.3	8.30	61	103	10	£93.36	2 days
DOR-R46321/64	21/64	61	103	10	£93.36	2 days
DOR-R4638.4	8.40	61	103	10	£93.36	2 days
DOR-R4638.5	8.50	61	103	10	£93.36	2 days
DOR-R4638.6	8.60	61	103	10	£93.36	2 days
DOR-R4638.7	8.70	61	103	10	£93.36	2 days
DOR-R46311/32	11/32	61	103	10	£93.36	2 days
DOR-R4638.8	8.80	61	103	10	£93.36	2 days
DOR-R4638.9	8.90	61	103	10	£93.36	2 days
DOR-R4639.0	9.00	61	103	10	£93.36	2 days
DOR-R4639.1	9.10	61	103	10	£93.36	2 days
DOR-R46323/64	23/64	61	103	10	£93.36	2 days
DOR-R4639.2	9.20	61	103	10	£93.36	2 days
DOR-R4639.3	9.30	61	103	10	£93.36	2 days
DOR-R4639.4	9.40	61	103	10	£93.36	2 days
DOR-R4639.5	9.50	61	103	10	£93.36	2 days
DOR-R4633/8	3/8	61	103	10	£93.36	2 days
DOR-R4639.6	9.60	61	103	10	£93.36	2 days
DOR-R4639.7	9.70	61	103	10	£93.36	2 days
DOR-R4639.8	9.80	61	103	10	£93.36	2 days
DOR-R4639.9	9.90	61	103	10	£93.36	2 days
DOR-R46310.0	10.00	61	103	10	£93.36	2 days
DOR-R46310.05	10.05	70	118	12	£135.54	2 days
DOR-R46310.1	10.10	70	118	12	£135.54	2 days
DOR-R46310.2	10.20	70	118	12	£135.54	2 days
DOR-R46310.3	10.30	70	118	12	£135.54	2 days
DOR-R46313/32	13/32	70	118	12	£135.54	2 days
DOR-R46310.4	10.40	70	118	12	£135.54	2 days
DOR-R46310.5	10.50	70	118	12	£135.54	2 days
DOR-R46327/64	27/64	70	118	12	£135.54	2 days
DOR-R46310.8	10.80	70	118	12	£135.54	2 days
DOR-R46311.0	11.00	70	118	12	£135.54	2 days
DOR-R4637/16	7/16	70	118	12	£135.54	2 days
DOR-R46311.2	11.20	70	118	12	£135.54	2 days
DOR-R46311.3	11.30	70	118	12	£135.54	2 days
DOR-R46311.4	11.40	70	118	12	£135.54	2 days
DOR-R46311.5	11.50	70	118	12	£135.54	2 days
DOR-R46329/64	29/64	70	118	12	£135.54	2 days
DOR-R46311.6	11.60	70	118	12	£135.54	2 days
DOR-R46311.8	11.80	70	118	12	£135.54	2 days
DOR-R46315/32	15/32	70	118	12	£135.54	2 days
DOR-R46312.0	12.00	70	118	12	£135.54	2 days
DOR-R46312.05	12.05	76	124	14	£176.03	2 days
DOR-R46312.2	12.20	76	124	14	£176.03	2 days
DOR-R46331/64	31/64	76	124	14	£176.03	2 days
DOR-R46312.5	12.50	76	124	14	£176.03	2 days
DOR-R46312.7	12.70	76	124	14	£176.03	2 days
DOR-R4631/2	1/2	76	124	14	£176.03	2 days
DOR-R46312.8	12.80	76	124	14	£176.03	2 days
DOR-R46313.0	13.00	76	124	14	£176.03	2 days
DOR-R46333/64	33/64	76	124	14	£176.03	2 days
DOR-R46313.5	13.50	76	124	14	£176.03	2 days
DOR-R46313.8	13.80	76	124	14	£176.03	2 days
DOR-R46314.0	14.00	76	124	14	£176.03	2 days
DOR-R46314.25	14.25	82	133	16	£226.65	2 days
DOR-R46314.5	14.50	82	133	16	£226.65	2 days
DOR-R46315.0	15.00	82	133	16	£226.65	2 days
DOR-R46315.3	15.30	82	133	16	£226.65	2 days
DOR-R46315.5 Viewing	15.50	82	133	16	£226.65	2 days
DOR-R46315.8	15.80	82	133	16	£226.65	2 days
DOR-R46316.0	16.00	82	133	16	£226.65	2 days
