Europa Tools Carbide End Mill 2 Flute Extended Neck - Stub Length - Pulsar Blue - Corner Radius - 1mm x 4mm x R0.1

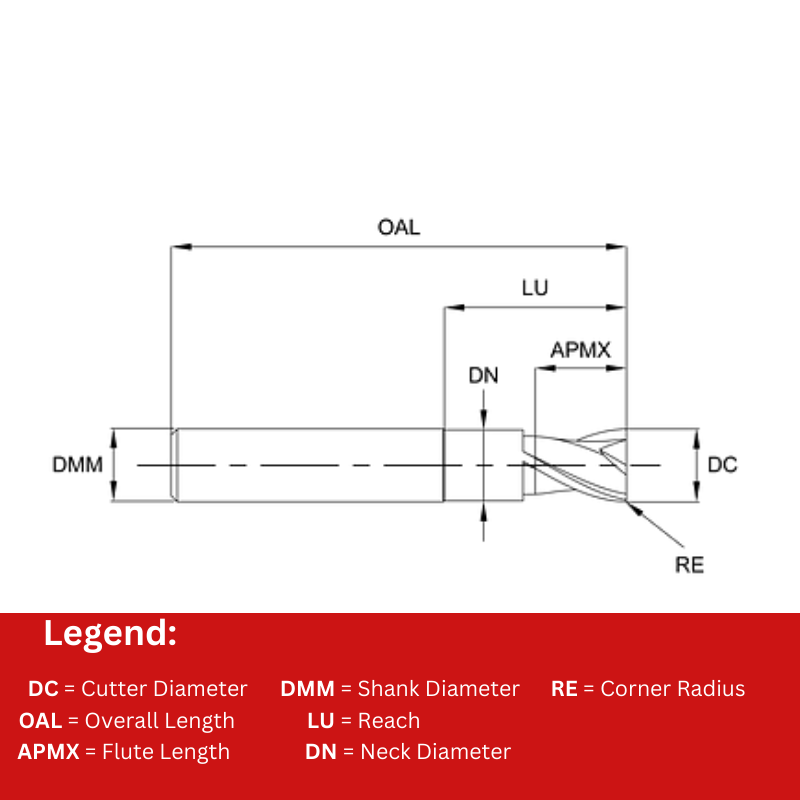

| Cutter Diameter (DC) | 1 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1.5 |
| Overall Length (OAL) | 40 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | - |
Learn more about Klarna

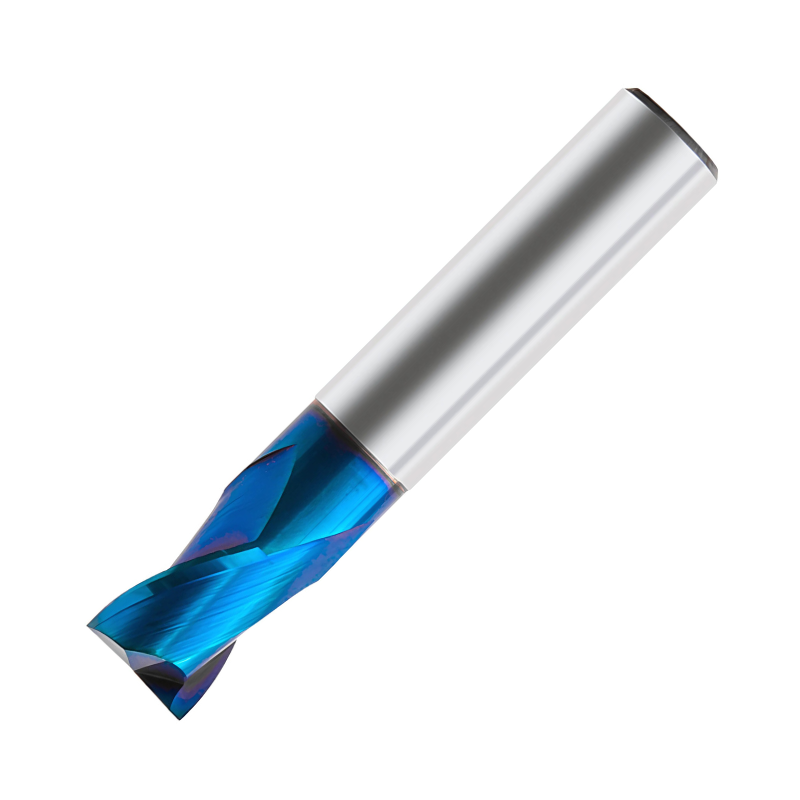

The Europa Tools Carbide End Mill 2 Flute Extended Neck - Stub Length is a precision micro-milling tool designed for tight spaces and intricate features. With a square edge and a Pulsar Blue coating, it delivers sharp, accurate cuts and durable performance where access is limited.
- Size (D x L x Radius): Ø1.0 mm cutting diameter, 4.0 mm cutting length, corner radius R0.1 mm
- Flute Count: 2 flutes for efficient chip evacuation and a clean surface finish
- Neck Geometry: Extended neck with stub-length design to reach deep pockets and tight radii
- Material: Solid carbide for rigidity, wear resistance, and long tool life
- Coating: Pulsar Blue enhances heat resistance and durability in demanding materials
- Edge Type: Square edge for precise, sharp cuts and smooth finishes
- Application: Ideal for micro-milling, precise profiling, and finishing in confined spaces
The combination of a compact Ø1.0 mm diameter, short cutting length, and extended neck makes this end mill perfect for micro-feature work where space is at a premium. The 2-flute design provides reliable chip clearance and steady cuts, helping to maintain tight tolerances on small pockets, slots, and traces. Pulsar Blue coating reduces heat buildup and wear, translating to longer tool life and more consistent results across multiple passes. This tool is particularly well-suited for electronics housings, precision mechanical parts, jewelry components, and other applications that require exact dimensions in constrained geometries.
| Cutter Diameter (DC) | 1 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 1.5 |
| Overall Length (OAL) | 40 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | - |
| Corner Radius (RE) | 0.1 |
| Neck Diameter (DN) | - |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mill 2 Flute Extended Neck - Stub Length - Pulsar Blue - Corner Radius
View full collection →You are viewing EUR-1013500901. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1013500030 | 0.3 | 0.45 | 40 | 3 | - | - | £43.69 | 1-2 days | |
| EUR-1013500040 | 0.4 | 0.6 | 40 | 3 | - | - | £38.52 | 1-2 days | |
| EUR-1013500050 | 0.5 | 0.7 | 40 | 3 | - | 0.05 | £33.37 | 1-2 days | |
| EUR-1013500907 | 0.5 | 0.7 | 40 | 4 | - | 0.05 | £37.90 | 1-2 days | |
| EUR-1013500060 | 0.6 | 0.9 | 40 | 3 | - | 0.05 | £31.27 | 1-2 days | |
| EUR-1013500908 | 0.6 | 0.9 | 40 | 4 | - | 0.05 | £35.46 | 1-2 days | |
| EUR-1013500909 | 0.7 | 0.9 | 40 | 3 | - | 0.05 | £33.27 | 1-2 days | |
| EUR-1013500080 | 0.8 | 1.2 | 40 | 3 | - | 0.05 | £28.17 | 1-2 days | |
| EUR-1013500910 | 0.8 | 1.2 | 40 | 4 | - | 0.05 | £31.09 | 1-2 days | |
| EUR-1013500911 | 0.9 | 1.2 | 40 | 4 | - | 0.05 | £31.09 | 1-2 days | |
| EUR-1013500100 | 1 | 1.5 | 40 | 3 | - | 0.1 | £27.27 | 1-2 days | |
| EUR-1013500901 Viewing | 1 | 1.5 | 40 | 4 | - | 0.1 | £30.05 | 1-2 days | |
| EUR-1013500903 | 1 | 1.5 | 40 | 6 | - | 0.1 | £39.83 | 1-2 days | |
| EUR-1013500150 | 1.5 | 2.2 | 40 | 3 | - | 0.1 | £27.27 | 1-2 days | |
| EUR-1013500904 | 1.5 | 2.2 | 40 | 6 | - | 0.1 | £39.83 | 1-2 days | |
| EUR-1013500200 | 2 | 3 | 40 | 3 | 6 | 0.1 | £24.71 | 1-2 days | |
| EUR-1013500902 | 2 | 3 | 40 | 4 | 6 | 0.1 | £27.27 | 1-2 days | |
| EUR-1013500905 | 2 | 3 | 40 | 6 | 6 | 0.1 | £36.20 | 1-2 days | |
| EUR-1013500250 | 2.5 | 4 | 40 | 3 | 6 | 0.1 | £24.71 | 1-2 days | |
| EUR-1013500906 | 2.5 | 4 | 40 | 6 | 6 | 0.1 | £36.20 | 1-2 days | |
| EUR-1013500300 | 3 | 4 | 45 | 6 | 7 | 0.1 | £36.21 | 1-2 days | |
| EUR-1013500350 | 3.5 | 5 | 45 | 6 | 9 | 0.1 | £36.21 | 1-2 days | |
| EUR-1013500400 | 4 | 5 | 45 | 6 | 9 | 0.1 | £36.21 | 1-2 days | |
| EUR-1013500450 | 4.5 | 6 | 45 | 6 | 10 | 0.1 | £36.21 | 1-2 days | |
| EUR-1013500500 | 5 | 6 | 50 | 6 | 11 | 0.2 | £36.21 | 1-2 days | |
| EUR-1013500600 | 6 | 7 | 50 | 6 | 14 | 0.2 | £36.21 | 1-2 days | |
| EUR-1013500800 | 8 | 9 | 60 | 8 | 18 | 0.2 | £45.87 | 1-2 days | |
| EUR-1013501000 | 10 | 12 | 75 | 10 | 25 | 0.2 | £68.68 | 1-2 days | |
| EUR-1013501200 | 12 | 15 | 75 | 12 | 30 | 0.3 | £94.82 | 1-2 days | |
| EUR-1013501600 | 16 | 18 | 90 | 16 | 38 | 0.3 | £189.87 | 1-2 days | |
| EUR-1013502000 | 20 | 24 | 100 | 20 | 45 | 0.3 | £327.22 | 1-2 days |
