Europa Tools Carbide End Mill 4 Flute Extended Neck Short Length - Corner Radius - Pulsar Blue - 4mm x 20mm x R0.5

SKU:EUR-1016500910

Precision machining in tight, hard-to-reach spaces requires a tool built for reach, rigidity, and reliability. The Europa Tools Carbide End Mill with extended neck, 4 flutes, and Pulsar Blue coat... Read more ↓
P
H
Cutter Diameter (DC)4
Number Of Flute4
Flute Length (APMX)5
Overall Length (OAL)55
Shank Diameter (DMM)6
Reach (LU)20
View all specifications ↓
Download Cutting Data
£39.29
Prices shown ex. VAT
1–2 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Precision machining in tight, hard-to-reach spaces requires a tool built for reach, rigidity, and reliability. The Europa Tools Carbide End Mill with extended neck, 4 flutes, and Pulsar Blue coating delivers consistent, high-quality finishes in restricted areas.

  • Diameter x Length x Radius: 4 mm diameter, 20 mm overall length, corner radius R0.5 for stronger edges and smoother cuts
  • Flute Configuration: 4-flute carbide end mill designed for efficient material removal and precise finishes
  • Extended Neck: longer reach that penetrates deeper into recessed features without sacrificing rigidity
  • Short Overall Length: compact form provides enhanced stability and reduced deflection during high-precision tasks
  • Pulsar Blue Coating: heat-resistant layer that extends tool life and maintains cutting efficiency at higher speeds
  • Corner Radius: robust corner geometry reduces edge chipping, promoting smoother transitions and edges
  • Material: solid carbide for excellent wear resistance and ability to cut tough materials with precision

This end mill is ideal for engineers and machinists who need reliable performance in confined spaces, such as mold making, aerospace components, automotive parts, and intricate electronics housings. The combination of extended reach, rigid short length, and a durable corner radius reduces the need for frequent tool changes and helps achieve repeatable, high-accuracy finishes across complex geometries. The Pulsar Blue coating enhances heat tolerance during demanding operations, delivering longer uninterrupted runs and steadier productivity.

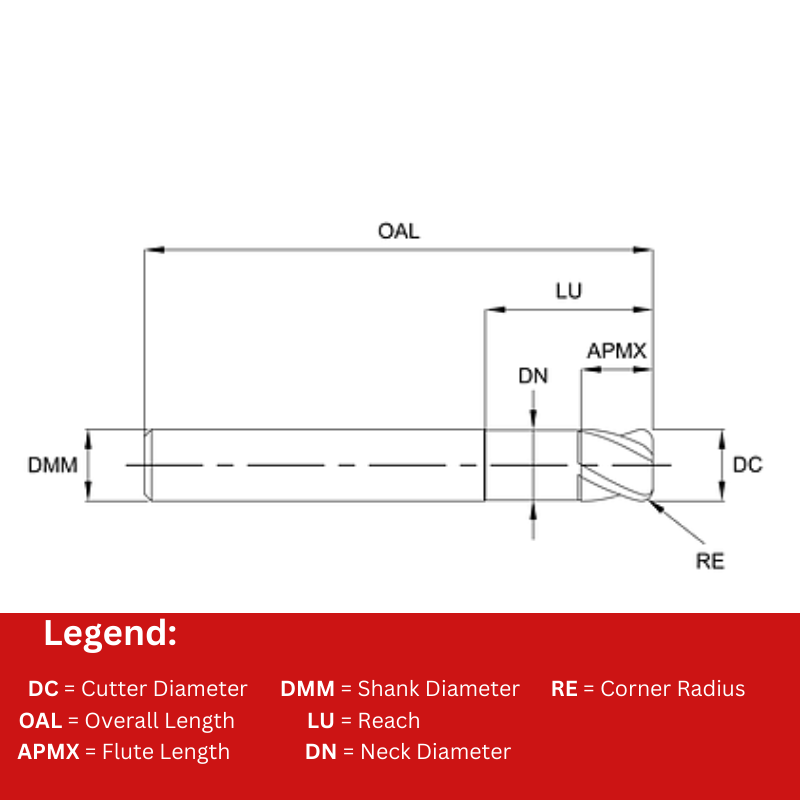

Cutter Diameter (DC) 4
Number Of Flute 4
Flute Length (APMX) 5
Overall Length (OAL) 55
Shank Diameter (DMM) 6
Reach (LU) 20
Corner Radius (RE) 0.5
Neck Diameter (DN) 3.85

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Europa Tools Carbide End Mills 4 Flute Extended Neck Short Length - Corner Radius - Pulsar Blue

View full collection →

You are viewing EUR-1016500910. Click any other SKU to view its full details.

Product SKUCutter Diameter (DC)Flute Length (APMX)Overall Length (OAL)Shank Diameter (DMM)Reach (LU)Corner Radius (RE)PriceStock Order
EUR-1016500300 34556120.3£39.29 1-2 days
EUR-1016500901 34556160.3£39.29 1-2 days
EUR-1016500902 34556200.3£39.29 1-2 days
EUR-1016500903 34556100.5£39.29 1-2 days
EUR-1016500904 34556160.5£39.29 1-2 days
EUR-1016500905 34556200.5£39.29 1-2 days
EUR-1016500400 45556120.3£39.29 1-2 days
EUR-1016500906 45556160.3£39.29 1-2 days
EUR-1016500907 45556200.3£39.29 1-2 days
EUR-1016500908 45556120.5£39.29 1-2 days
EUR-1016500909 45556160.5£39.29 1-2 days
EUR-1016500910 Viewing45556200.5£39.29 1-2 days
EUR-1016500911 45556121£39.29 1-2 days
EUR-1016500600 67606200.5£39.29 1-2 days
EUR-1016500601 67606201£39.29 1-2 days
EUR-1016500912 67606201.5£39.29 1-2 days
EUR-1016500800 89608250.5£49.69 1-2 days
EUR-1016500913 89608251£49.69 1-2 days
EUR-1016500914 89608251.5£49.69 1-2 days
EUR-1016500915 89608252£49.69 1-2 days
EUR-1016501000 10117010320.5£74.47 1-2 days
EUR-1016500916 10117010321£74.47 1-2 days
EUR-1016500917 10117010321.5£74.47 1-2 days
EUR-1016500918 10117010322£74.47 1-2 days
EUR-1016501200 12128012380.5£102.76 1-2 days
EUR-1016500919 12128012381£102.76 1-2 days
EUR-1016500920 12128012381.5£102.76 1-2 days
EUR-1016500921 12128012382£102.76 1-2 days
