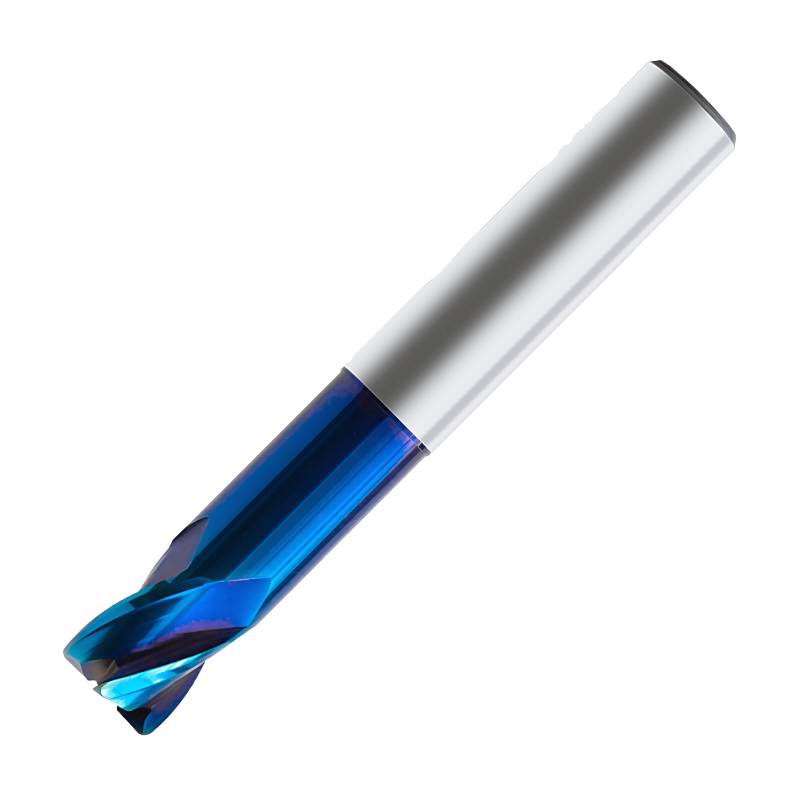

Europa Tools Carbide End Mill 4 Flute Extended Neck Short Length - Corner Radius - Pulsar Blue - 8mm x 25mm x R1

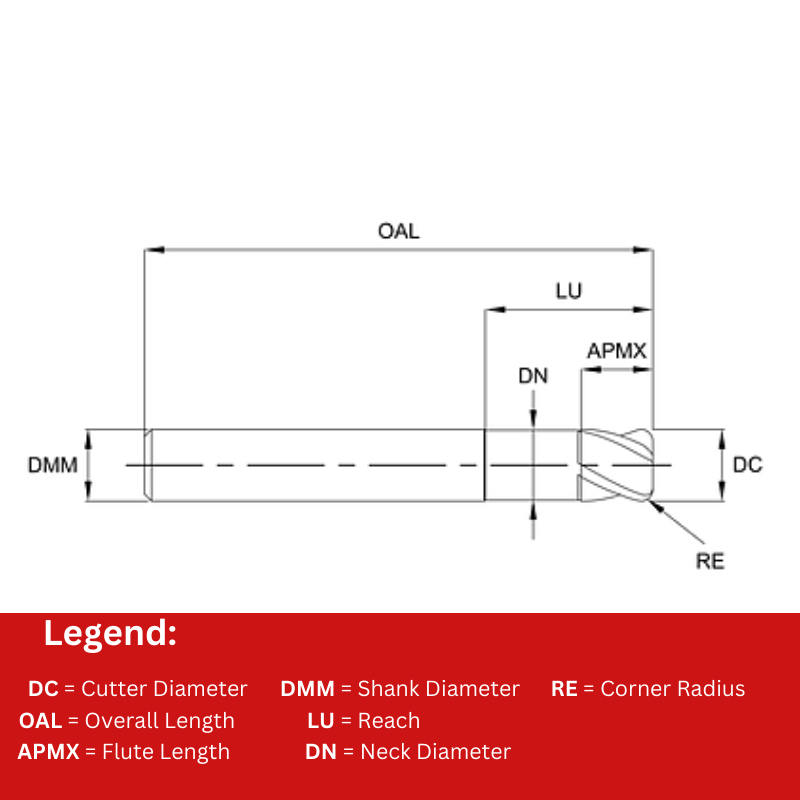

| Cutter Diameter (DC) | 8 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 9 |
| Overall Length (OAL) | 60 |
| Shank Diameter (DMM) | 8 |
| Reach (LU) | 25 |
Learn more about Klarna
The Europa Tools Carbide End Mill with extended neck and short length is engineered for precision machining in hard‑to‑reach areas. It’s ideal for engineers and machinists who need reliable performance in restricted spaces without sacrificing accuracy.
- Diameter: 8 mm
- Overall length & neck: 25 mm total length with an extended neck for deeper reach into pockets, slots, and undercuts
- Corner radius: R1 (1 mm) for stronger edges and smoother cuts with reduced chipping
- Flutes: 4‑flute design balancing efficient material removal with controlled finish
- Material: Solid carbide for rigidity, rigidity, and tight dimensional tolerances
- Coating: Pulsar Blue coating delivers excellent heat resistance and extended tool life in demanding materials
Designed to tackle restricted geometries, this end mill maintains stability during high‑precision tasks while delivering consistent finishes even in tough materials. The extended neck provides the reach needed for deep cavities, while the short overall length minimizes tool deflection for cleaner, more accurate cuts. The corner radius strengthens the cutting edge, reducing edge wear and chipping for longer tool life. The Pulsar Blue coating further enhances performance by reducing friction and dissipating heat, helping you maintain sharpness through extended production runs. This tool is well suited for aerospace fixtures, automotive components, mold work, and any application where precise profiles in confined spaces matter.
| Cutter Diameter (DC) | 8 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 9 |
| Overall Length (OAL) | 60 |
| Shank Diameter (DMM) | 8 |
| Reach (LU) | 25 |
| Corner Radius (RE) | 1 |
| Neck Diameter (DN) | 7.7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute Extended Neck Short Length - Corner Radius - Pulsar Blue
View full collection →You are viewing EUR-1016500913. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1016500300 | 3 | 4 | 55 | 6 | 12 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500901 | 3 | 4 | 55 | 6 | 16 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500902 | 3 | 4 | 55 | 6 | 20 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500903 | 3 | 4 | 55 | 6 | 10 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500904 | 3 | 4 | 55 | 6 | 16 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500905 | 3 | 4 | 55 | 6 | 20 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500400 | 4 | 5 | 55 | 6 | 12 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500906 | 4 | 5 | 55 | 6 | 16 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500907 | 4 | 5 | 55 | 6 | 20 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500908 | 4 | 5 | 55 | 6 | 12 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500909 | 4 | 5 | 55 | 6 | 16 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500910 | 4 | 5 | 55 | 6 | 20 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500911 | 4 | 5 | 55 | 6 | 12 | 1 | £39.29 | 1-2 days | |
| EUR-1016500600 | 6 | 7 | 60 | 6 | 20 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500601 | 6 | 7 | 60 | 6 | 20 | 1 | £39.29 | 1-2 days | |
| EUR-1016500912 | 6 | 7 | 60 | 6 | 20 | 1.5 | £39.29 | 1-2 days | |
| EUR-1016500800 | 8 | 9 | 60 | 8 | 25 | 0.5 | £49.69 | 1-2 days | |
| EUR-1016500913 Viewing | 8 | 9 | 60 | 8 | 25 | 1 | £49.69 | 1-2 days | |
| EUR-1016500914 | 8 | 9 | 60 | 8 | 25 | 1.5 | £49.69 | 1-2 days | |
| EUR-1016500915 | 8 | 9 | 60 | 8 | 25 | 2 | £49.69 | 1-2 days | |
| EUR-1016501000 | 10 | 11 | 70 | 10 | 32 | 0.5 | £74.47 | 1-2 days | |
| EUR-1016500916 | 10 | 11 | 70 | 10 | 32 | 1 | £74.47 | 1-2 days | |
| EUR-1016500917 | 10 | 11 | 70 | 10 | 32 | 1.5 | £74.47 | 1-2 days | |
| EUR-1016500918 | 10 | 11 | 70 | 10 | 32 | 2 | £74.47 | 1-2 days | |
| EUR-1016501200 | 12 | 12 | 80 | 12 | 38 | 0.5 | £102.76 | 1-2 days | |
| EUR-1016500919 | 12 | 12 | 80 | 12 | 38 | 1 | £102.76 | 1-2 days | |
| EUR-1016500920 | 12 | 12 | 80 | 12 | 38 | 1.5 | £102.76 | 1-2 days | |
| EUR-1016500921 | 12 | 12 | 80 | 12 | 38 | 2 | £102.76 | 1-2 days |
