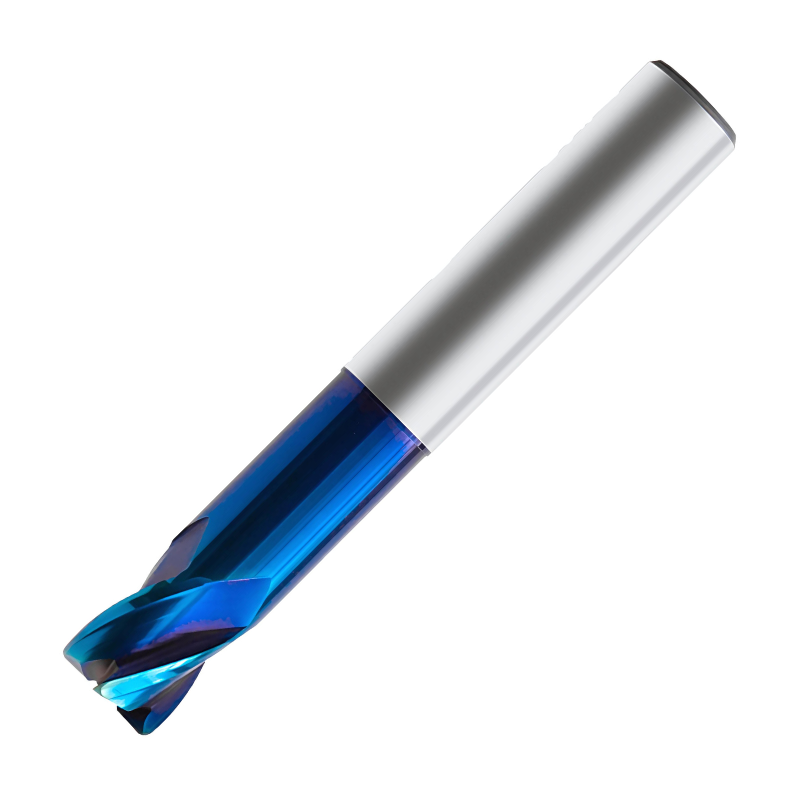

Europa Tools Carbide End Mill 4 Flute Extended Neck Short Length - Corner Radius - Pulsar Blue - 6mm x 20mm x R1
| Cutter Diameter (DC) | 6 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 7 |
| Overall Length (OAL) | 60 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 20 |
Learn more about Klarna
The Europa Tools Carbide End Mill with Extended Neck and Corner Radius is engineered for precision cutting in tight, hard‑to‑reach areas. Built for engineers and machinists who demand reliability in restricted spaces, it combines depth of reach with stability for superior finishes.
- Diameter: 6 mm
- Cutting Length: 20 mm with an extended neck for deeper access into confined features
- Overall/Tool Form: Short, rigid length to maximize stability during high‑precision milling
- Flute Count: 4 flutes for efficient chip evacuation and smooth cutting action
- Corner Radius: R1 to strengthen the cutting edge and reduce edge chipping for cleaner cuts
- Material: Solid carbide for high rigidity and wear resistance
- Coating: Pulsar Blue coating delivers improved heat resistance and extended tool life
This end mill excels in scenarios like deep pockets, blind holes, and narrow slots where access is limited but precision is non‑negotiable. The extended neck reaches into recessed geometries without compromising rigidity, while the short length keeps deflection to a minimum during fine finishing passes. The 4‑flute configuration supports efficient material removal and a crisp surface finish, and the Pulsar Blue coating helps maintain cutting performance under higher temperatures. Ideal for aerospace components, mold and die work, and precision mechanical parts crafted in hard materials.

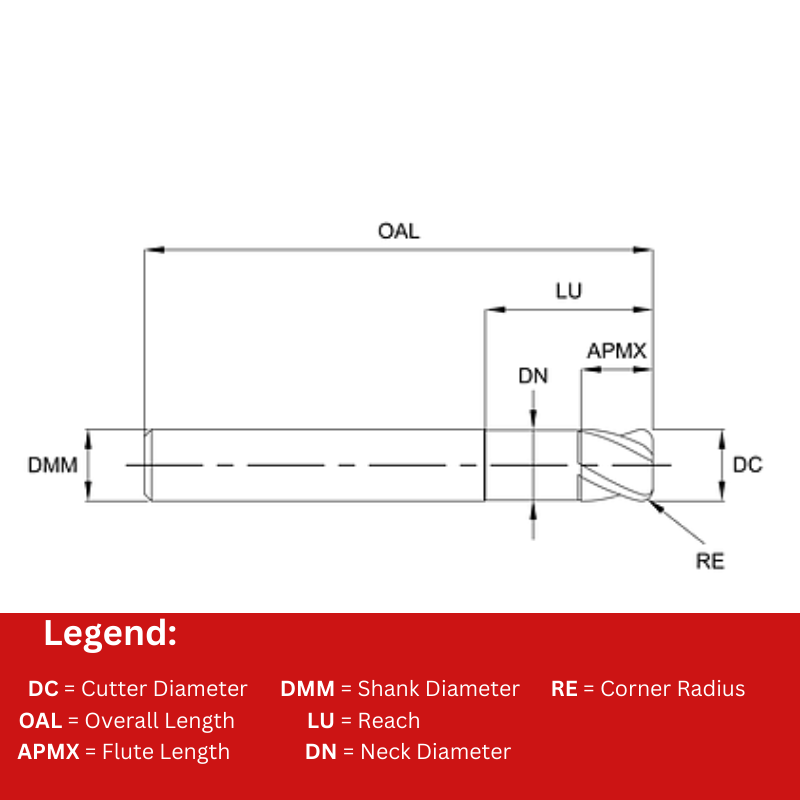

| Cutter Diameter (DC) | 6 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 7 |
| Overall Length (OAL) | 60 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 20 |
| Corner Radius (RE) | 1 |
| Neck Diameter (DN) | 5.85 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute Extended Neck Short Length - Corner Radius - Pulsar Blue
View full collection →You are viewing EUR-1016500601. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1016500300 | 3 | 4 | 55 | 6 | 12 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500901 | 3 | 4 | 55 | 6 | 16 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500902 | 3 | 4 | 55 | 6 | 20 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500903 | 3 | 4 | 55 | 6 | 10 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500904 | 3 | 4 | 55 | 6 | 16 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500905 | 3 | 4 | 55 | 6 | 20 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500400 | 4 | 5 | 55 | 6 | 12 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500906 | 4 | 5 | 55 | 6 | 16 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500907 | 4 | 5 | 55 | 6 | 20 | 0.3 | £39.29 | 1-2 days | |
| EUR-1016500908 | 4 | 5 | 55 | 6 | 12 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500909 | 4 | 5 | 55 | 6 | 16 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500910 | 4 | 5 | 55 | 6 | 20 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500911 | 4 | 5 | 55 | 6 | 12 | 1 | £39.29 | 1-2 days | |
| EUR-1016500600 | 6 | 7 | 60 | 6 | 20 | 0.5 | £39.29 | 1-2 days | |
| EUR-1016500601 Viewing | 6 | 7 | 60 | 6 | 20 | 1 | £39.29 | 1-2 days | |
| EUR-1016500912 | 6 | 7 | 60 | 6 | 20 | 1.5 | £39.29 | 1-2 days | |
| EUR-1016500800 | 8 | 9 | 60 | 8 | 25 | 0.5 | £49.69 | 1-2 days | |
| EUR-1016500913 | 8 | 9 | 60 | 8 | 25 | 1 | £49.69 | 1-2 days | |
| EUR-1016500914 | 8 | 9 | 60 | 8 | 25 | 1.5 | £49.69 | 1-2 days | |
| EUR-1016500915 | 8 | 9 | 60 | 8 | 25 | 2 | £49.69 | 1-2 days | |
| EUR-1016501000 | 10 | 11 | 70 | 10 | 32 | 0.5 | £74.47 | 1-2 days | |
| EUR-1016500916 | 10 | 11 | 70 | 10 | 32 | 1 | £74.47 | 1-2 days | |
| EUR-1016500917 | 10 | 11 | 70 | 10 | 32 | 1.5 | £74.47 | 1-2 days | |
| EUR-1016500918 | 10 | 11 | 70 | 10 | 32 | 2 | £74.47 | 1-2 days | |
| EUR-1016501200 | 12 | 12 | 80 | 12 | 38 | 0.5 | £102.76 | 1-2 days | |
| EUR-1016500919 | 12 | 12 | 80 | 12 | 38 | 1 | £102.76 | 1-2 days | |
| EUR-1016500920 | 12 | 12 | 80 | 12 | 38 | 1.5 | £102.76 | 1-2 days | |
| EUR-1016500921 | 12 | 12 | 80 | 12 | 38 | 2 | £102.76 | 1-2 days |
