Europa Tools Carbide End Mill 4 Flute Extended Neck Short Length - Corner Radius - Pulsar Blue - 12mm x 38mm x R1

SKU:EUR-1016500919

Designed for precision machining in tight, hard-to-reach spaces, the Europa Tools Carbide End Mill 4 Flute Extended Neck Short Length with Corner Radius and Pulsar Blue coating is built for engin... Read more ↓
P
H
Cutter Diameter (DC)12
Number Of Flute4
Flute Length (APMX)12
Overall Length (OAL)80
Shank Diameter (DMM)12
Reach (LU)38
View all specifications ↓
Download Cutting Data
£102.76
Prices shown ex. VAT
1–2 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

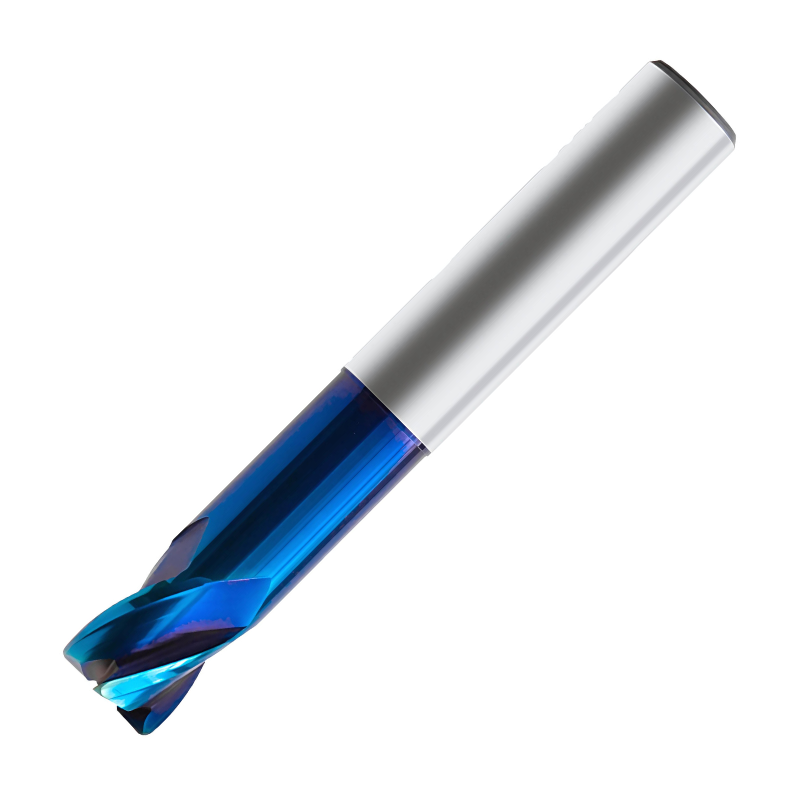

Designed for precision machining in tight, hard-to-reach spaces, the Europa Tools Carbide End Mill 4 Flute Extended Neck Short Length with Corner Radius and Pulsar Blue coating is built for engineers who demand both reach and stability. Its extended neck delivers deeper access, while the short overall length provides rigid control for high-precision cuts.

  • Material: Carbide for exceptional hardness, wear resistance, and consistent performance under demanding conditions.
  • Flute Count: 4-flute geometry to balance strong material removal with smooth chip evacuation.
  • Neck Type: Extended neck design enables access to features that are difficult to reach with standard tools.
  • Overall Length: Short length (38 mm) enhances rigidity and minimizes tool deflection during precise milling.
  • Cutting Diameter: 12 mm cutting diameter suitable for mid-range milling tasks and precise contouring.
  • Corner Radius: R1 corner radius strengthens the cutting edge, reducing edge chipping for cleaner finishes.
  • Coating: Pulsar Blue coating delivers improved heat resistance and extended tool life in tough materials.

This end mill excels in restricted spaces where conventional tools struggle, delivering accurate pockets, shoulders, and contours without sacrificing rigidity. The combination of extended neck and short length minimizes vibration, helping you achieve tight tolerances and smooth surface finishes. The Pulsar Blue coating reduces wear in high-heat applications, so you can push for longer runs between tool changes while maintaining consistent results.

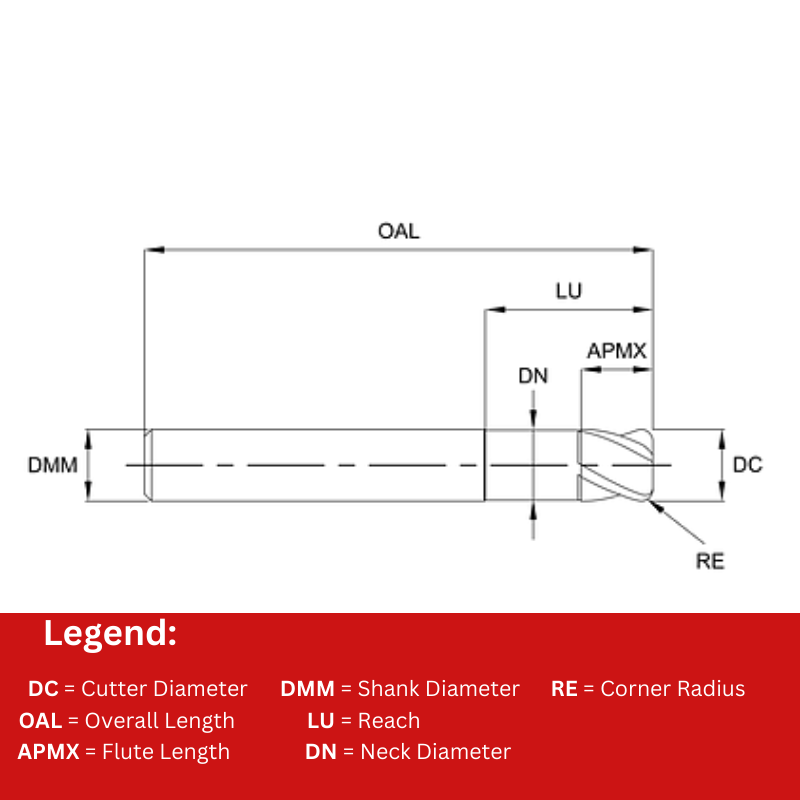

Cutter Diameter (DC) 12
Number Of Flute 4
Flute Length (APMX) 12
Overall Length (OAL) 80
Shank Diameter (DMM) 12
Reach (LU) 38
Corner Radius (RE) 1
Neck Diameter (DN) 11.7

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Europa Tools Carbide End Mills 4 Flute Extended Neck Short Length - Corner Radius - Pulsar Blue

View full collection →

You are viewing EUR-1016500919. Click any other SKU to view its full details.

Product SKUCutter Diameter (DC)Flute Length (APMX)Overall Length (OAL)Shank Diameter (DMM)Reach (LU)Corner Radius (RE)PriceStock Order
EUR-1016500300 34556120.3£39.29 1-2 days
EUR-1016500901 34556160.3£39.29 1-2 days
EUR-1016500902 34556200.3£39.29 1-2 days
EUR-1016500903 34556100.5£39.29 1-2 days
EUR-1016500904 34556160.5£39.29 1-2 days
EUR-1016500905 34556200.5£39.29 1-2 days
EUR-1016500400 45556120.3£39.29 1-2 days
EUR-1016500906 45556160.3£39.29 1-2 days
EUR-1016500907 45556200.3£39.29 1-2 days
EUR-1016500908 45556120.5£39.29 1-2 days
EUR-1016500909 45556160.5£39.29 1-2 days
EUR-1016500910 45556200.5£39.29 1-2 days
EUR-1016500911 45556121£39.29 1-2 days
EUR-1016500600 67606200.5£39.29 1-2 days
EUR-1016500601 67606201£39.29 1-2 days
EUR-1016500912 67606201.5£39.29 1-2 days
EUR-1016500800 89608250.5£49.69 1-2 days
EUR-1016500913 89608251£49.69 1-2 days
EUR-1016500914 89608251.5£49.69 1-2 days
EUR-1016500915 89608252£49.69 1-2 days
EUR-1016501000 10117010320.5£74.47 1-2 days
EUR-1016500916 10117010321£74.47 1-2 days
EUR-1016500917 10117010321.5£74.47 1-2 days
EUR-1016500918 10117010322£74.47 1-2 days
EUR-1016501200 12128012380.5£102.76 1-2 days
EUR-1016500919 Viewing12128012381£102.76 1-2 days
EUR-1016500920 12128012381.5£102.76 1-2 days
EUR-1016500921 12128012382£102.76 1-2 days
