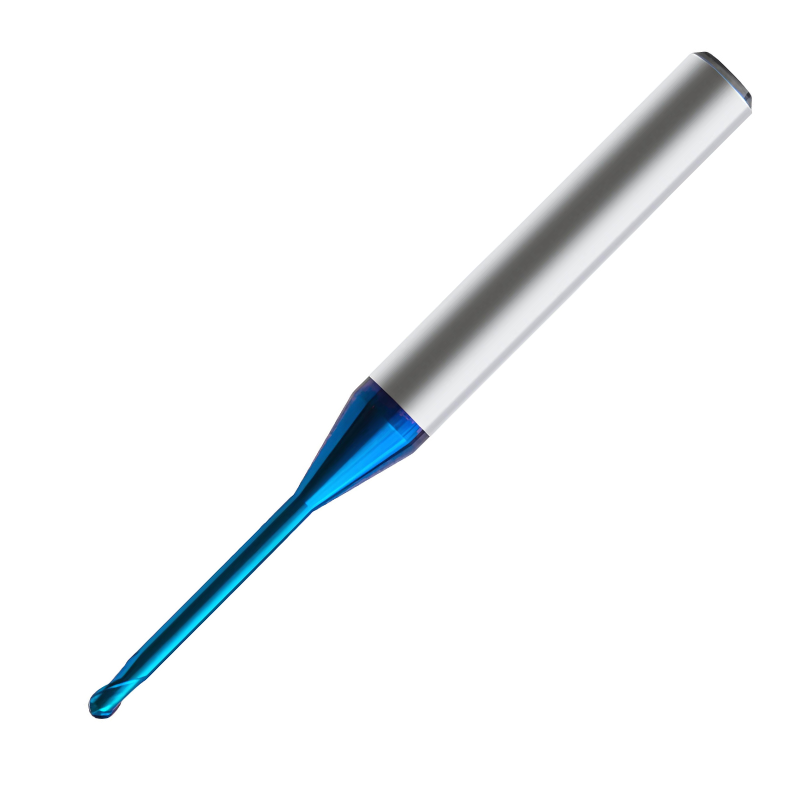

Europa Tools Carbide End Mill 2 Flute Rib Processing - Ball Nose - Pulsar Blue 106350 Series - 0.5mm x 1.5mm
| Cutter Diameter (DC) | 0.5 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.5 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 1.5 |
Learn more about Klarna
The Europa Tools Carbide End Mill with Ball Nose geometry is designed for rib and slot milling, delivering smooth contours and precise machining of curved surfaces. Built for reliability in detail work, this 2‑flute tool from the Pulsar Blue 106350 series tackles intricate rib processing with clean, consistent finishes.
- Diameter: 0.5 mm
- Cutting Length: 1.5 mm
- Flute Count: 2 flutes for efficient chip evacuation
- Material: Solid carbide for rigidity and wear resistance
- Geometry: Ball Nose profile for high‑quality 3D profiling and smooth surface finish
- Coating / Series: Pulsar Blue, 106350 series for reduced friction and heat
- Primary Applications: Rib processing and slot milling on curved surfaces
Designed for engineers and machinists who demand precision in small, detailed features, this end mill excels at creating accurate ribs, slots, and complex contours. The combination of a ball nose tip and a two‑flute design provides excellent surface finish while facilitating rapid chip clearance, helping you maintain tight tolerances across multiple passes. Its carbide construction and blue coating contribute to longer tool life and stable performance under typical milling loads.

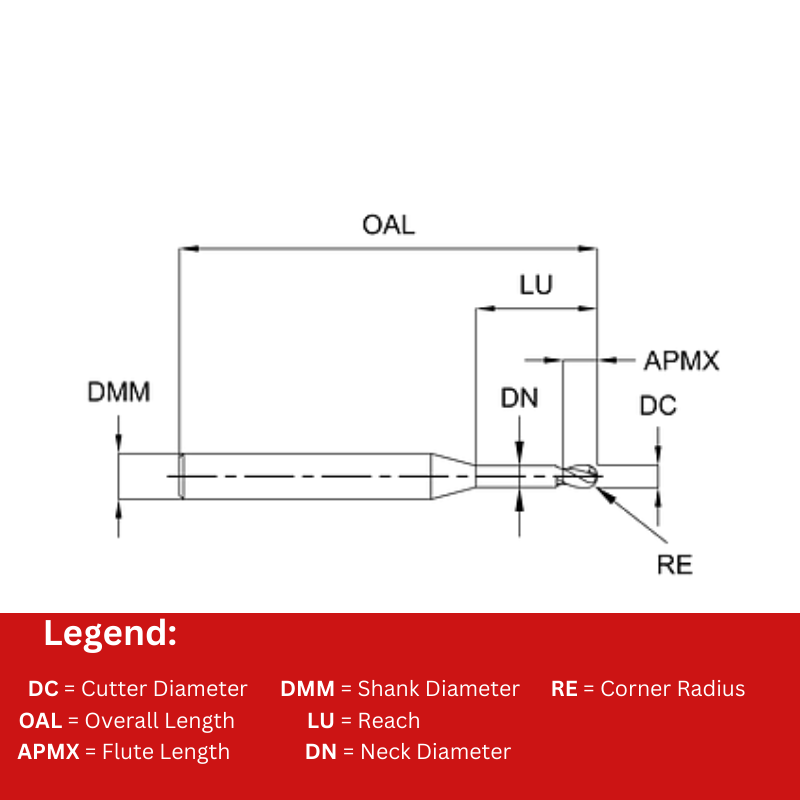

| Cutter Diameter (DC) | 0.5 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.5 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 1.5 |
| Corner Radius (RE) | 0.25 |
| Neck Diameter (DN) | 0.45 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mill 2 Flute Rib Processing - Ball Nose - 106350 Series
View full collection →You are viewing EUR-1063500050. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1063500050 Viewing | 0.5 | 0.5 | 50 | 6 | 1.5 | 0.25 | £65.63 | 1-2 days | |
| EUR-1063500901 | 0.5 | 0.5 | 50 | 6 | 3.3 | 0.25 | £65.63 | 1-2 days | |
| EUR-1063500060 | 0.6 | 0.6 | 50 | 6 | 2 | 0.3 | £65.63 | 1-2 days | |
| EUR-1063500902 | 0.6 | 0.6 | 50 | 6 | 4 | 0.3 | £65.63 | 1-2 days | |
| EUR-1063500080 | 0.8 | 0.8 | 50 | 6 | 2.5 | 0.4 | £50.62 | 1-2 days | |
| EUR-1063500903 | 0.8 | 0.8 | 50 | 6 | 5.5 | 0.4 | £50.62 | 1-2 days | |
| EUR-1063500100 | 1 | 1 | 50 | 6 | 3.3 | 0.5 | £46.50 | 1-2 days | |
| EUR-1063500904 | 1 | 1 | 50 | 6 | 6.7 | 0.5 | £46.50 | 1-2 days | |
| EUR-1063500905 | 1 | 1 | 50 | 6 | 12 | 0.5 | £49.68 | 1-2 days | |
| EUR-1063500120 | 1.2 | 1.2 | 50 | 6 | 4.4 | 0.6 | £46.50 | 1-2 days | |
| EUR-1063500906 | 1.2 | 1.2 | 50 | 6 | 8 | 0.6 | £49.68 | 1-2 days | |
| EUR-1063500150 | 1.5 | 1.5 | 50 | 6 | 5 | 0.75 | £46.50 | 1-2 days | |
| EUR-1063500907 | 1.5 | 1.5 | 50 | 6 | 9.7 | 0.75 | £49.68 | 1-2 days | |
| EUR-1063500908 | 1.5 | 1.5 | 50 | 6 | 15 | 0.75 | £49.68 | 1-2 days | |
| EUR-1063500200 | 2 | 2 | 50 | 6 | 6 | 1 | £43.47 | 1-2 days | |
| EUR-1063500909 | 2 | 2 | 50 | 6 | 13 | 1 | £46.50 | 1-2 days | |
| EUR-1063500910 | 2 | 2 | 60 | 6 | 20 | 1 | £49.74 | 1-2 days |
