Europa Tools Carbide End Mill 2 Flute Rib Processing - Ball Nose - Pulsar Blue 106350 Series - 0.6mm x 4mm
| Cutter Diameter (DC) | 0.6 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.6 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 4 |
Learn more about Klarna

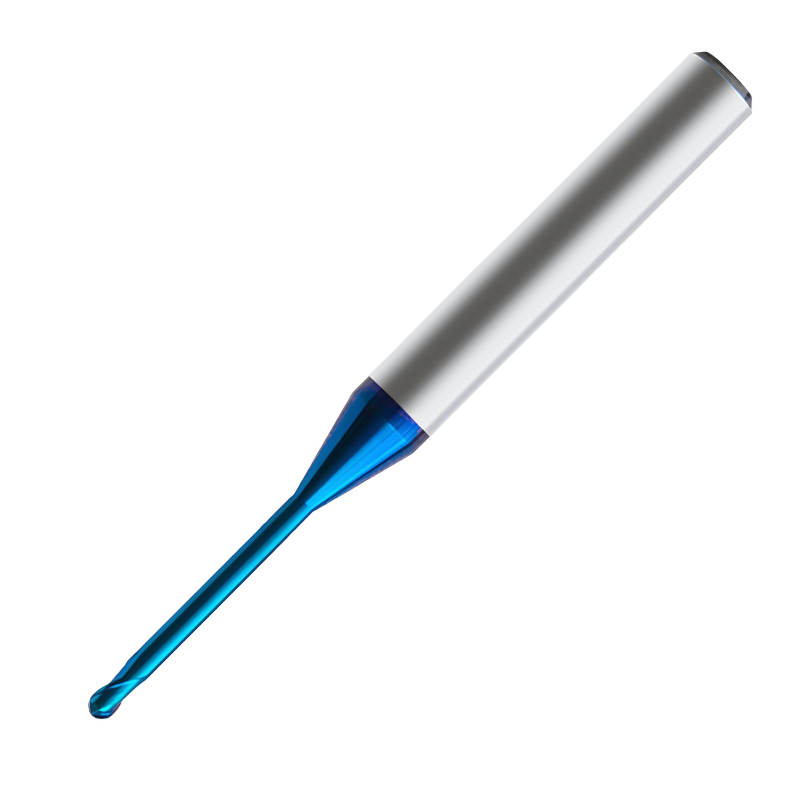

Meet the Europa Tools Carbide End Mill with Ball Nose for rib processing and slot milling. This compact Ø0.6 mm cutter from the Pulsar Blue 106350 series delivers precise, smooth contours on curved surfaces, making it a reliable choice for intricate 3D profiling.
- Diameter: Ø0.6 mm cutting diameter for fine, detailed work
- Length of cut: 4 mm reach to access tight rib and slot geometries
- Flute count: 2-flute design enhances chip evacuation and efficiency
- Geometry: Ball Nose profile enables smooth contouring and accurate 3D profiling
- Material: Solid carbide for superior hardness, wear resistance, and rigidity
- Coating / color: Pulsar Blue finish aligned with the 106350 series for visibility and consistency
- Applications: Ideal for rib and slot milling, machining curved surfaces, and detailed geometry
- Performance benefit: Stable cutting action with efficient chip removal reduces cycle times and improves surface finish
This end mill is crafted for engineers and machinists who need dependable precision on small-diameter tasks. The ball nose geometry delivers a high-quality surface finish on complex contours, while the 2-flute design supports steady chip evacuation in rib processing and fine-detail work. Use it to create accurate ribs, slots, and tight-radius features with consistent results across challenging profiling applications.

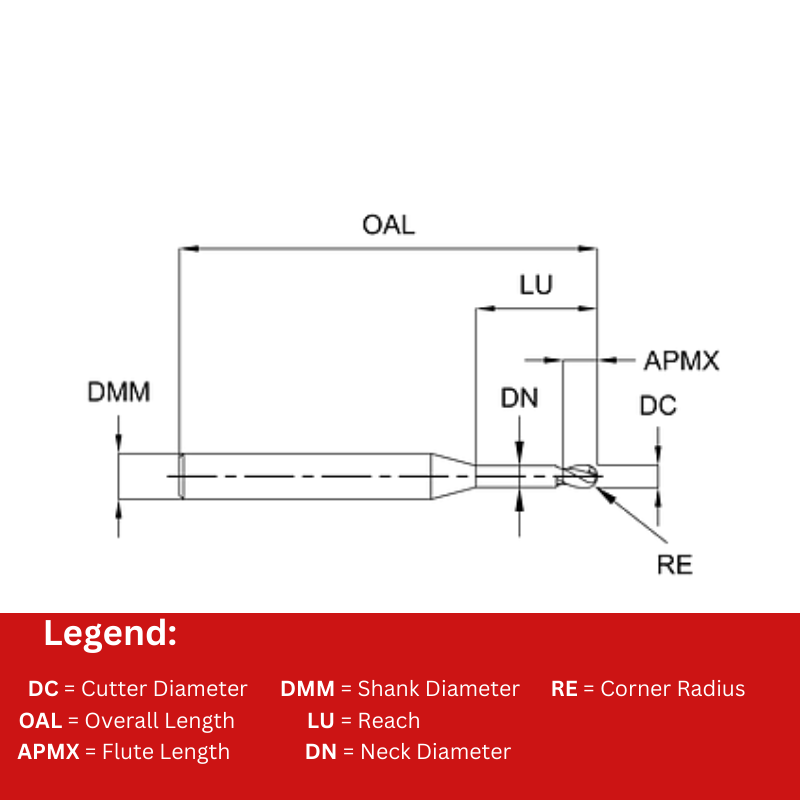

| Cutter Diameter (DC) | 0.6 |
| Number Of Flute | 2 |
| Flute Length (APMX) | 0.6 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 4 |
| Corner Radius (RE) | 0.3 |
| Neck Diameter (DN) | 0.55 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mill 2 Flute Rib Processing - Ball Nose - 106350 Series
View full collection →You are viewing EUR-1063500902. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1063500050 | 0.5 | 0.5 | 50 | 6 | 1.5 | 0.25 | £65.63 | 1-2 days | |
| EUR-1063500901 | 0.5 | 0.5 | 50 | 6 | 3.3 | 0.25 | £65.63 | 1-2 days | |
| EUR-1063500060 | 0.6 | 0.6 | 50 | 6 | 2 | 0.3 | £65.63 | 1-2 days | |
| EUR-1063500902 Viewing | 0.6 | 0.6 | 50 | 6 | 4 | 0.3 | £65.63 | 1-2 days | |
| EUR-1063500080 | 0.8 | 0.8 | 50 | 6 | 2.5 | 0.4 | £50.62 | 1-2 days | |
| EUR-1063500903 | 0.8 | 0.8 | 50 | 6 | 5.5 | 0.4 | £50.62 | 1-2 days | |
| EUR-1063500100 | 1 | 1 | 50 | 6 | 3.3 | 0.5 | £46.50 | 1-2 days | |
| EUR-1063500904 | 1 | 1 | 50 | 6 | 6.7 | 0.5 | £46.50 | 1-2 days | |
| EUR-1063500905 | 1 | 1 | 50 | 6 | 12 | 0.5 | £49.68 | 1-2 days | |
| EUR-1063500120 | 1.2 | 1.2 | 50 | 6 | 4.4 | 0.6 | £46.50 | 1-2 days | |
| EUR-1063500906 | 1.2 | 1.2 | 50 | 6 | 8 | 0.6 | £49.68 | 1-2 days | |
| EUR-1063500150 | 1.5 | 1.5 | 50 | 6 | 5 | 0.75 | £46.50 | 1-2 days | |
| EUR-1063500907 | 1.5 | 1.5 | 50 | 6 | 9.7 | 0.75 | £49.68 | 1-2 days | |
| EUR-1063500908 | 1.5 | 1.5 | 50 | 6 | 15 | 0.75 | £49.68 | 1-2 days | |
| EUR-1063500200 | 2 | 2 | 50 | 6 | 6 | 1 | £43.47 | 1-2 days | |
| EUR-1063500909 | 2 | 2 | 50 | 6 | 13 | 1 | £46.50 | 1-2 days | |
| EUR-1063500910 | 2 | 2 | 60 | 6 | 20 | 1 | £49.74 | 1-2 days |
