Europa Tools Carbide End Mill 4 Flute - Square Edge - Extended Neck - HX2 - 16mm x 109mm

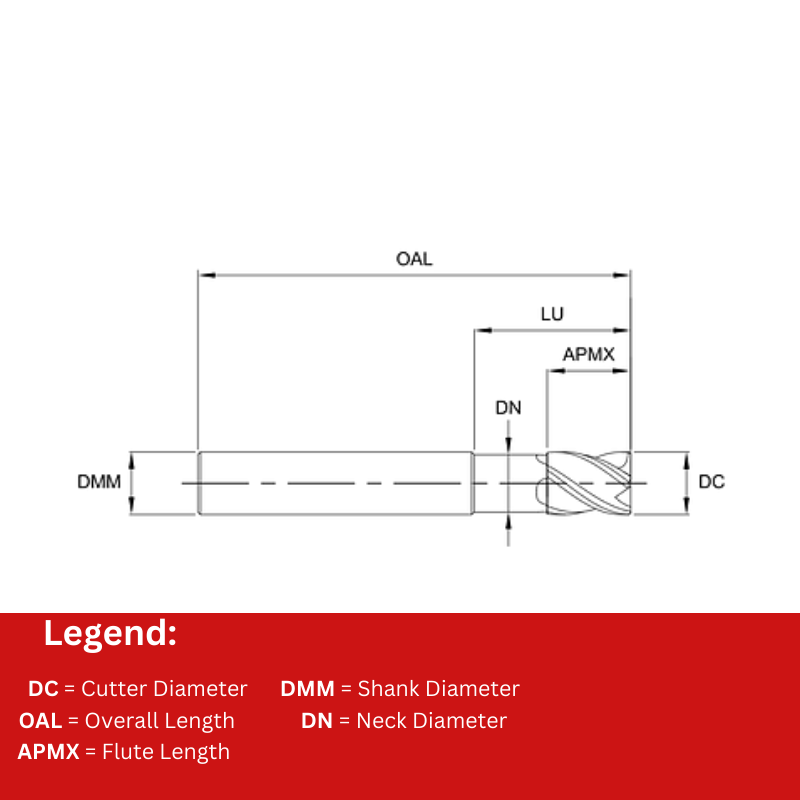

| Cutting Diameter | 16 |
| Flute Length (APMX) | 22 |
| Overall Length (OAL) | 109 |
| Shank Diameter (DMM) | 16 |
| Reach (LU) | 55 |
| Neck Diameter (DN) | 15 |
Learn more about Klarna
The Europa Tools Carbide End Mill 4 Flute - Square Edge - Extended Neck - HX2 is a high‑precision carbide end mill built for deep reach and clean, consistent cuts. Designed for machinists and engineers tackling intricate pockets and long, narrow features, it delivers stability and reliable edge performance across a range of materials.
- Diameter: 16 mm
- Overall Length: 109 mm
- Flutes: 4-flute configuration
- Edge Geometry: Square edge for sharp, precise cuts
- Neck Design: Extended neck enables deeper reach without sacrificing rigidity
- Coating: HX2 coating enhances wear resistance and tool life
- Material: Solid carbide for rigidity and heat resistance
- Applications: Suitable for general‑purpose milling and deep cavity work across a variety of materials
The tool’s 4-flute design balances aggressive material removal with a fine surface finish, making it ideal for both roughing and finishing passes. The extended neck provides the reach needed for deep cavities and complex geometries, while maintaining stability to preserve concentricity and cutting accuracy. HX2 coating reduces wear under challenging cutting conditions, helping maintain a sharp edge and consistent performance over time. This end mill is a dependable choice for precision milling tasks where depth, accuracy, and durability matter.
| Cutting Diameter | 16 |
| Flute Length (APMX) | 22 |
| Overall Length (OAL) | 109 |
| Shank Diameter (DMM) | 16 |
| Reach (LU) | 55 |
| Neck Diameter (DN) | 15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute - Square Edge - Extended Neck - HX2
View full collection →You are viewing EUR-1463239009. Click any other SKU to view its full details.
| Product SKU | Cutting Diameter | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| EUR-1463230400 | 4 | 8 | 57 | 6 | 15 | £24.47 | 1-2 days | |
| EUR-1463239015 | 5 | 10 | 67 | 6 | 27 | £24.47 | 1-2 days | |
| EUR-1463230600 | 6 | 10 | 57 | 6 | 15 | £34.29 | 1-2 days | |
| EUR-1463239001 | 6 | 10 | 62 | 6 | 20 | £34.29 | 1-2 days | |
| EUR-1463239002 | 6 | 10 | 74 | 6 | 32 | £34.29 | 1-2 days | |
| EUR-1463230800 | 8 | 12 | 63 | 8 | 20 | £47.87 | 1-2 days | |
| EUR-1463239003 | 8 | 12 | 73 | 8 | 30 | £53.06 | 1-2 days | |
| EUR-1463239004 | 8 | 12 | 90 | 8 | 46 | £57.76 | 1-2 days | |
| EUR-1463231000 | 10 | 14 | 72 | 10 | 25 | £66.47 | 1-2 days | |
| EUR-1463239005 | 10 | 14 | 82 | 10 | 35 | £76.12 | 1-2 days | |
| EUR-1463239006 | 10 | 14 | 102 | 10 | 55 | £79.93 | 1-2 days | |
| EUR-1463231200 | 12 | 16 | 83 | 12 | 30 | £92.45 | 1-2 days | |
| EUR-1463239007 | 12 | 16 | 93 | 12 | 40 | £96.57 | 1-2 days | |
| EUR-1463239008 | 12 | 16 | 117 | 12 | 64 | £124.76 | 1-2 days | |
| EUR-1463231600 | 16 | 22 | 92 | 16 | 38 | £159.30 | 1-2 days | |
| EUR-1463239009 Viewing | 16 | 22 | 109 | 16 | 55 | £204.94 | 1-2 days | |
| EUR-1463239010 | 16 | 22 | 141 | 16 | 87 | £220.00 | 1-2 days | |
| EUR-1463232000 | 20 | 26 | 104 | 20 | 50 | £251.87 | 1-2 days | |
| EUR-1463239011 | 20 | 26 | 124 | 20 | 70 | £325.16 | 1-2 days | |
| EUR-1463239012 | 20 | 26 | 164 | 20 | 110 | £364.10 | 1-2 days |
