Europa Tools Carbide End Mill 4 Flute - Square Edge - Extended Neck - HX2 - 20mm x 124mm

SKU:EUR-1463239011

The Europa Tools HX2 4-Flute Carbide End Mill with Extended Neck is engineered for precision milling in tight, deep cavities and complex geometries. Designed for general-purpose machining across ... Read more ↓
P
M
K
S

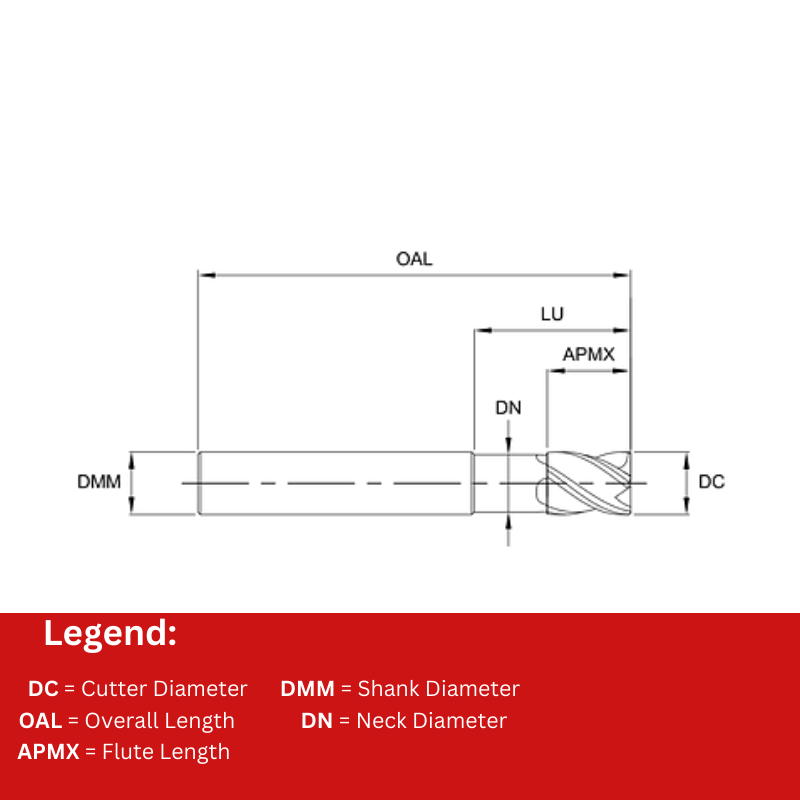

Cutting Diameter20
Flute Length (APMX)26
Overall Length (OAL)124
Shank Diameter (DMM)20
Reach (LU)70
Neck Diameter (DN)19
Download Cutting Data
£325.16
Prices shown ex. VAT
1–2 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Europa Tools HX2 4-Flute Carbide End Mill with Extended Neck is engineered for precision milling in tight, deep cavities and complex geometries. Designed for general-purpose machining across a wide material range, it delivers clean cuts and reliable performance.

  • Diameter x Length: 20 mm diameter, 124 mm overall length
  • Flute Configuration: 4-flute design for efficient material removal and smooth finishes
  • Edge Geometry: Square edge for sharp, versatile cutting across multiple materials
  • Extended Neck: Increased reach to access deep pockets and intricate contours without sacrificing stability
  • Coating: HX2 coating enhances wear resistance and durability in challenging cutting conditions
  • Material: Solid carbide construction for high hardness and dimensional stability
  • Applications: Ideal for general-purpose milling and precision tasks across a wide range of materials

This end mill helps you tackle deep features with confidence: the extended neck reduces the need for multiple tools or setups, while the 4-flute design promotes steady chip evacuation and a reliable surface finish. The HX2 coating extends tool life when cutting harder materials or performing high-speed operations, making it a dependable choice for job shops and production environments. Whether you’re pocketing, contouring, or finishing intricate details, this end mill delivers consistent performance and versatility.

Cutting Diameter 20
Flute Length (APMX) 26
Overall Length (OAL) 124
Shank Diameter (DMM) 20
Reach (LU) 70
Neck Diameter (DN) 19

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Europa Tools Carbide End Mills 4 Flute - Square Edge - Extended Neck - HX2

View full collection →

You are viewing EUR-1463239011. Click any other SKU to view its full details.

Product SKUCutting DiameterFlute Length (APMX)Overall Length (OAL)Shank Diameter (DMM)Reach (LU)PriceStock Order
EUR-1463230400 4857615£24.47 1-2 days
EUR-1463239015 51067627£24.47 1-2 days
EUR-1463230600 61057615£34.29 1-2 days
EUR-1463239001 61062620£34.29 1-2 days
EUR-1463239002 61074632£34.29 1-2 days
EUR-1463230800 81263820£47.87 1-2 days
EUR-1463239003 81273830£53.06 1-2 days
EUR-1463239004 81290846£57.76 1-2 days
EUR-1463231000 1014721025£66.47 1-2 days
EUR-1463239005 1014821035£76.12 1-2 days
EUR-1463239006 10141021055£79.93 1-2 days
EUR-1463231200 1216831230£92.45 1-2 days
EUR-1463239007 1216931240£96.57 1-2 days
EUR-1463239008 12161171264£124.76 1-2 days
EUR-1463231600 1622921638£159.30 1-2 days
EUR-1463239009 16221091655£204.94 1-2 days
EUR-1463239010 16221411687£220.00 1-2 days
EUR-1463232000 20261042050£251.87 1-2 days
EUR-1463239011 Viewing20261242070£325.16 1-2 days
EUR-1463239012 202616420110£364.10 1-2 days

View Other Sizes
