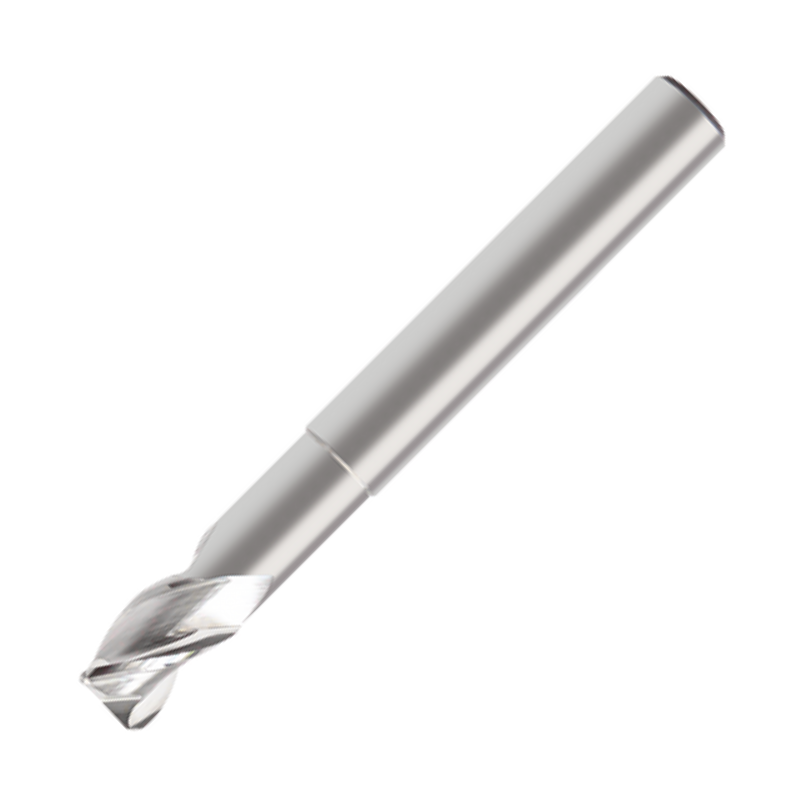

Europa Tools Carbide End Mill 3 Flute - Corner Radius With Extended Neck For For Aluminium - Long Length Mastermill AL-HPC - 20mm x R3.2
| Cutter Diameter (DC) | 20 |
| Number of Flutes | 3 |
| Flute Length (APMX) | 25 |
| Overall Length (OAL) | 150 |
| Shank Diameter (DMM) | 20 |
| Reach (LU) | 65 |
Learn more about Klarna
The Europa Tools Long Length Mastermill AL-HPC 20 mm carbide end mill is designed for high-performance aluminum and other non-ferrous machining. Its extended neck and corner-radius geometry deliver deep-pocket access with solid edge strength, making it a reliable choice for precision work.
- Diameter: 20 mm
- Flutes: 3-flute carbide design optimized for efficient chip evacuation
- Corner Radius: R3.2 for enhanced cutting edge strength and reduced chipping
- Neck: Extended neck provides increased reach into deep cavities and complex geometries
- Material: Solid carbide for exceptional hardness, wear resistance, and long tool life
- Length: Long Length Mastermill AL-HPC engineered for stability in demanding aluminum milling
This end mill supports higher feed rates and delivers excellent surface finishes on aluminum by combining effective chip removal with a robust cutting edge. The extended neck reduces tool deflection in deep pockets, while the corner radius helps maintain edge integrity during heavy cutting. Ideal for engineers and machinists tackling pocketing, contouring, and precision aluminum components, it offers dependable performance and productive milling cycles.

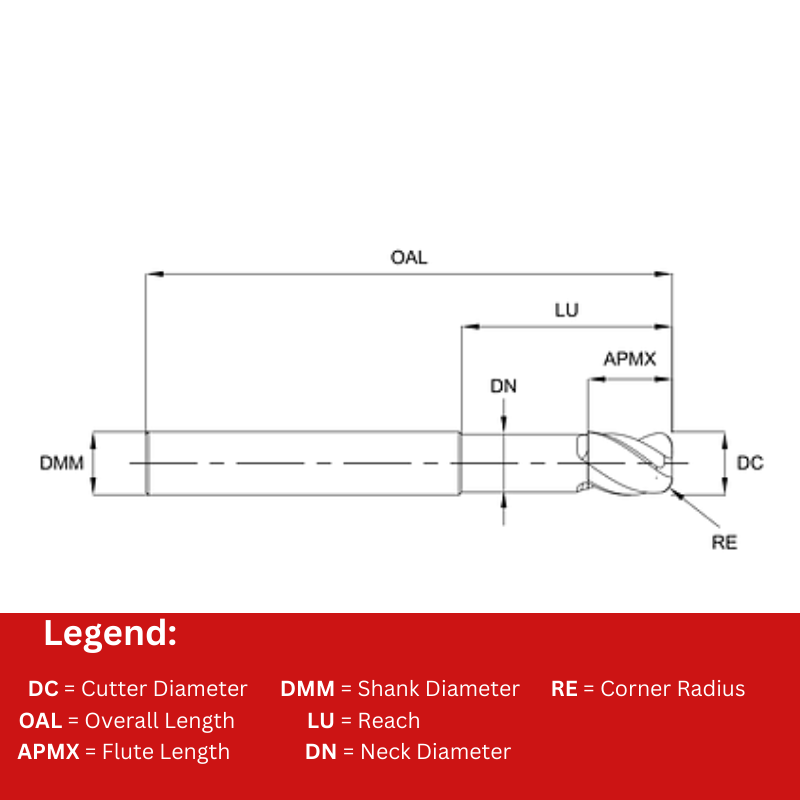

| Cutter Diameter (DC) | 20 |
| Number of Flutes | 3 |
| Flute Length (APMX) | 25 |
| Overall Length (OAL) | 150 |
| Shank Diameter (DMM) | 20 |
| Reach (LU) | 65 |
| Corner Radius (RE) | 3.2 |
| Neck Diameter (DN) | 19 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 3 Flute - Corner Radius With Extended Neck For For Aluminium - Long Length Mastermill AL-HPC
View full collection →You are viewing EUR-1563450944. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1563450600 | 6 | 10 | 63 | 6 | 20 | 0.5 | £56.92 | 1-2 days | |
| EUR-1563450901 | 6 | 10 | 63 | 6 | 20 | 1 | £56.92 | 1-2 days | |
| EUR-1563450902 | 6 | 13 | 72 | 6 | 30 | 0.5 | £56.92 | 1-2 days | |
| EUR-1563450903 | 6 | 13 | 72 | 6 | 30 | 1 | £56.92 | 1-2 days | |
| EUR-1563450800 | 8 | 12 | 75 | 8 | 25 | 0.5 | £100.81 | 1-2 days | |
| EUR-1563450905 | 8 | 12 | 75 | 8 | 25 | 0.8 | £100.81 | 1-2 days | |
| EUR-1563450906 | 8 | 12 | 75 | 8 | 25 | 1 | £100.81 | 1-2 days | |
| EUR-1563450907 | 8 | 12 | 75 | 8 | 25 | 1.2 | £100.81 | 1-2 days | |
| EUR-1563450908 | 8 | 12 | 75 | 8 | 25 | 1.5 | £100.81 | 1-2 days | |
| EUR-1563450909 | 8 | 12 | 75 | 8 | 25 | 1.6 | £100.81 | 1-2 days | |
| EUR-1563451000 | 10 | 14 | 100 | 10 | 35 | 0.5 | £136.42 | 1-2 days | |
| EUR-1563450911 | 10 | 14 | 100 | 10 | 35 | 0.8 | £136.42 | 1-2 days | |
| EUR-1563450912 | 10 | 14 | 100 | 10 | 35 | 1 | £136.42 | 1-2 days | |
| EUR-1563450913 | 10 | 14 | 100 | 10 | 35 | 1.2 | £136.42 | 1-2 days | |
| EUR-1563450914 | 10 | 14 | 100 | 10 | 35 | 1.5 | £136.42 | 1-2 days | |
| EUR-1563450915 | 10 | 14 | 100 | 10 | 35 | 1.6 | £136.42 | 1-2 days | |
| EUR-1563450916 | 10 | 14 | 100 | 10 | 35 | 2.4 | £136.42 | 1-2 days | |
| EUR-1563451200 | 12 | 16 | 100 | 12 | 40 | 0.5 | £245.77 | 1-2 days | |
| EUR-1563450917 | 12 | 16 | 100 | 12 | 40 | 0.8 | £245.77 | 1-2 days | |
| EUR-1563450918 | 12 | 16 | 100 | 12 | 40 | 1 | £245.77 | 1-2 days | |
| EUR-1563450919 | 12 | 16 | 100 | 12 | 40 | 1.2 | £245.77 | 1-2 days | |
| EUR-1563450920 | 12 | 16 | 100 | 12 | 40 | 1.5 | £245.77 | 1-2 days | |
| EUR-1563450921 | 12 | 16 | 100 | 12 | 40 | 1.6 | £245.77 | 1-2 days | |
| EUR-1563450922 | 12 | 16 | 100 | 12 | 40 | 2 | £245.77 | 1-2 days | |
| EUR-1563450923 | 12 | 16 | 100 | 12 | 40 | 2.4 | £245.77 | 1-2 days | |
| EUR-1563450924 | 12 | 16 | 100 | 12 | 40 | 2.5 | £245.77 | 1-2 days | |
| EUR-1563450925 | 12 | 16 | 100 | 12 | 40 | 3 | £245.77 | 1-2 days | |
| EUR-1563450926 | 12 | 16 | 100 | 12 | 40 | 4 | £245.77 | 1-2 days | |
| EUR-1563451600 | 16 | 20 | 125 | 16 | 50 | 0.8 | £336.09 | 1-2 days | |
| EUR-1563450930 | 16 | 20 | 125 | 16 | 50 | 1.2 | £336.09 | 1-2 days | |
| EUR-1563450931 | 16 | 20 | 125 | 16 | 50 | 1.6 | £336.09 | 1-2 days | |
| EUR-1563450932 | 16 | 20 | 125 | 16 | 50 | 2 | £336.09 | 1-2 days | |
| EUR-1563450933 | 16 | 20 | 125 | 16 | 50 | 2.4 | £336.09 | 1-2 days | |
| EUR-1563450934 | 16 | 20 | 125 | 16 | 50 | 2.5 | £336.09 | 1-2 days | |
| EUR-1563450935 | 16 | 20 | 125 | 16 | 50 | 3 | £336.09 | 1-2 days | |
| EUR-1563450936 | 16 | 20 | 125 | 16 | 50 | 3.2 | £336.09 | 1-2 days | |
| EUR-1563450937 | 16 | 20 | 125 | 16 | 50 | 4 | £336.09 | 1-2 days | |
| EUR-1563452000 | 20 | 25 | 150 | 20 | 65 | 0.8 | £673.72 | 1-2 days | |
| EUR-1563450938 | 20 | 25 | 150 | 20 | 65 | 1.2 | £673.72 | 1-2 days | |
| EUR-1563450939 | 20 | 25 | 150 | 20 | 65 | 1.6 | £673.72 | 1-2 days | |
| EUR-1563450940 | 20 | 25 | 150 | 20 | 65 | 2 | £673.72 | 1-2 days | |
| EUR-1563450941 | 20 | 25 | 150 | 20 | 65 | 2.4 | £673.72 | 1-2 days | |
| EUR-1563450942 | 20 | 25 | 150 | 20 | 65 | 2.5 | £673.72 | 1-2 days | |
| EUR-1563450943 | 20 | 25 | 150 | 20 | 65 | 3 | £673.72 | 1-2 days | |
| EUR-1563450944 Viewing | 20 | 25 | 150 | 20 | 65 | 3.2 | £673.72 | 1-2 days | |
| EUR-1563450945 | 20 | 25 | 150 | 20 | 65 | 4 | £673.72 | 1-2 days |
