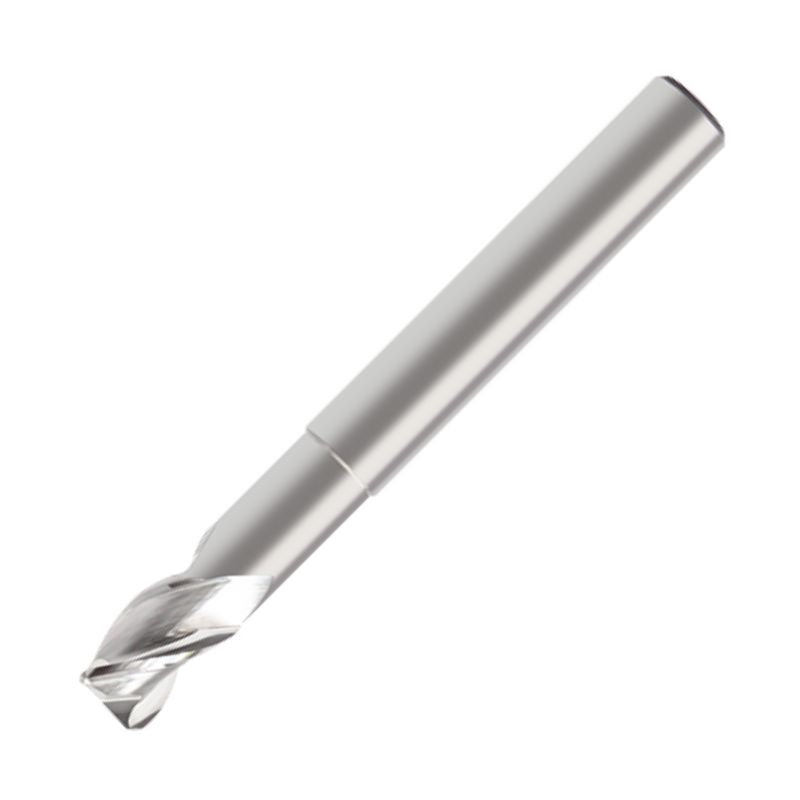

Europa Tools Carbide End Mill 3 Flute - Corner Radius With Extended Neck For For Aluminium - Long Length Mastermill AL-HPC - 10mm x R0.5

SKU:EUR-1563451000

Designed for high-performance aluminum and other non-ferrous machining, the Europa Tools 3‑Flute Carbide End Mill with corner radius and extended neck delivers precision, reach, and durability fo... Read more ↓
N
Cutter Diameter (DC)10
Number of Flutes3
Flute Length (APMX)14
Overall Length (OAL)100
Shank Diameter (DMM)10
Reach (LU)35
View all specifications ↓
Download Cutting Data
£136.42
Prices shown ex. VAT
1–2 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Designed for high-performance aluminum and other non-ferrous machining, the Europa Tools 3‑Flute Carbide End Mill with corner radius and extended neck delivers precision, reach, and durability for engineers tackling deep pockets and complex contours.

  • Diameter: 10 mm
  • Flute count: 3‑flute design optimized for efficient chip evacuation and higher feed rates
  • Material: Solid carbide construction for rigidity, wear resistance, and extended tool life
  • Corner radius: R0.5 provides a stronger cutting edge and reduced chipping during aluminum cuts
  • Neck length: Extended neck enables access to deep cavities and intricate geometries
  • Length class: Long length Mastermill AL‑HPC configuration designed for non‑ferrous machining versatility

This end mill is built to deliver reliable performance with aluminum and other non-ferrous materials, supporting higher material removal rates and superior surface finishes. The extended neck reduces tool entry errors and minimizes setup changes when working in tight pockets, while the carbide composition maintains precision under heat and stress. With its robust corner radius and long reach, it’s an excellent choice for production runs, prototype development, and any job requiring depth, accuracy, and consistent results in complex geometries.

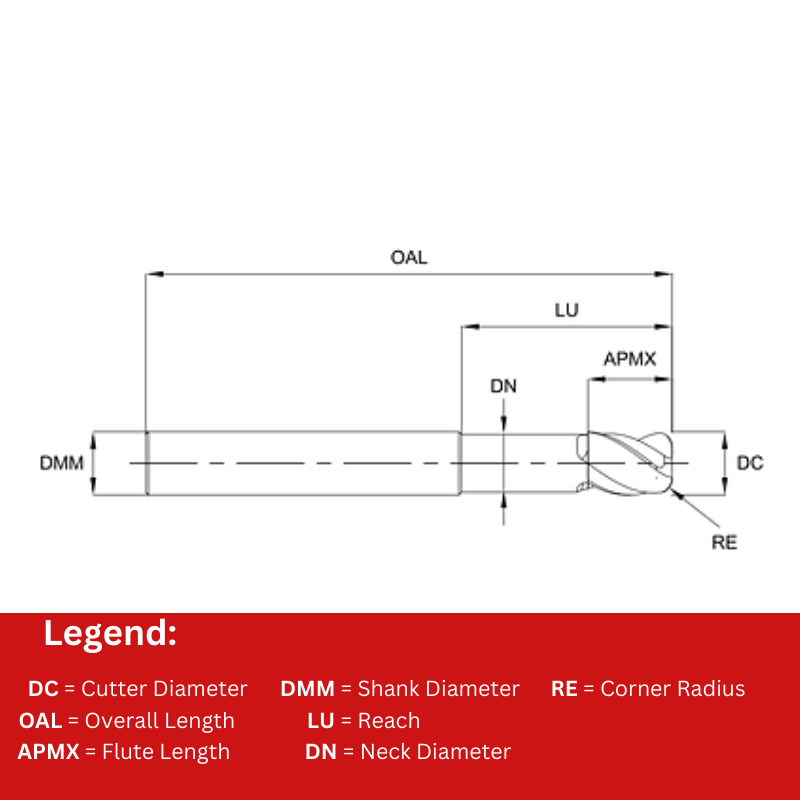

Cutter Diameter (DC) 10
Number of Flutes 3
Flute Length (APMX) 14
Overall Length (OAL) 100
Shank Diameter (DMM) 10
Reach (LU) 35
Corner Radius (RE) 0.5
Neck Diameter (DN) 9.2

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Europa Tools Carbide End Mills 3 Flute - Corner Radius With Extended Neck For For Aluminium - Long Length Mastermill AL-HPC

View full collection →

You are viewing EUR-1563451000. Click any other SKU to view its full details.

Product SKUCutter Diameter (DC)Flute Length (APMX)Overall Length (OAL)Shank Diameter (DMM)Reach (LU)Corner Radius (RE)PriceStock Order
EUR-1563450600 610636200.5£56.92 1-2 days
EUR-1563450901 610636201£56.92 1-2 days
EUR-1563450902 613726300.5£56.92 1-2 days
EUR-1563450903 613726301£56.92 1-2 days
EUR-1563450800 812758250.5£100.81 1-2 days
EUR-1563450905 812758250.8£100.81 1-2 days
EUR-1563450906 812758251£100.81 1-2 days
EUR-1563450907 812758251.2£100.81 1-2 days
EUR-1563450908 812758251.5£100.81 1-2 days
EUR-1563450909 812758251.6£100.81 1-2 days
EUR-1563451000 Viewing101410010350.5£136.42 1-2 days
EUR-1563450911 101410010350.8£136.42 1-2 days
EUR-1563450912 101410010351£136.42 1-2 days
EUR-1563450913 101410010351.2£136.42 1-2 days
EUR-1563450914 101410010351.5£136.42 1-2 days
EUR-1563450915 101410010351.6£136.42 1-2 days
EUR-1563450916 101410010352.4£136.42 1-2 days
EUR-1563451200 121610012400.5£245.77 1-2 days
EUR-1563450917 121610012400.8£245.77 1-2 days
EUR-1563450918 121610012401£245.77 1-2 days
EUR-1563450919 121610012401.2£245.77 1-2 days
EUR-1563450920 121610012401.5£245.77 1-2 days
EUR-1563450921 121610012401.6£245.77 1-2 days
EUR-1563450922 121610012402£245.77 1-2 days
EUR-1563450923 121610012402.4£245.77 1-2 days
EUR-1563450924 121610012402.5£245.77 1-2 days
EUR-1563450925 121610012403£245.77 1-2 days
EUR-1563450926 121610012404£245.77 1-2 days
EUR-1563451600 162012516500.8£336.09 1-2 days
EUR-1563450930 162012516501.2£336.09 1-2 days
EUR-1563450931 162012516501.6£336.09 1-2 days
EUR-1563450932 162012516502£336.09 1-2 days
EUR-1563450933 162012516502.4£336.09 1-2 days
EUR-1563450934 162012516502.5£336.09 1-2 days
EUR-1563450935 162012516503£336.09 1-2 days
EUR-1563450936 162012516503.2£336.09 1-2 days
EUR-1563450937 162012516504£336.09 1-2 days
EUR-1563452000 202515020650.8£673.72 1-2 days
EUR-1563450938 202515020651.2£673.72 1-2 days
EUR-1563450939 202515020651.6£673.72 1-2 days
EUR-1563450940 202515020652£673.72 1-2 days
EUR-1563450941 202515020652.4£673.72 1-2 days
EUR-1563450942 202515020652.5£673.72 1-2 days
EUR-1563450943 202515020653£673.72 1-2 days
EUR-1563450944 202515020653.2£673.72 1-2 days
EUR-1563450945 202515020654£673.72 1-2 days

View Other Sizes
