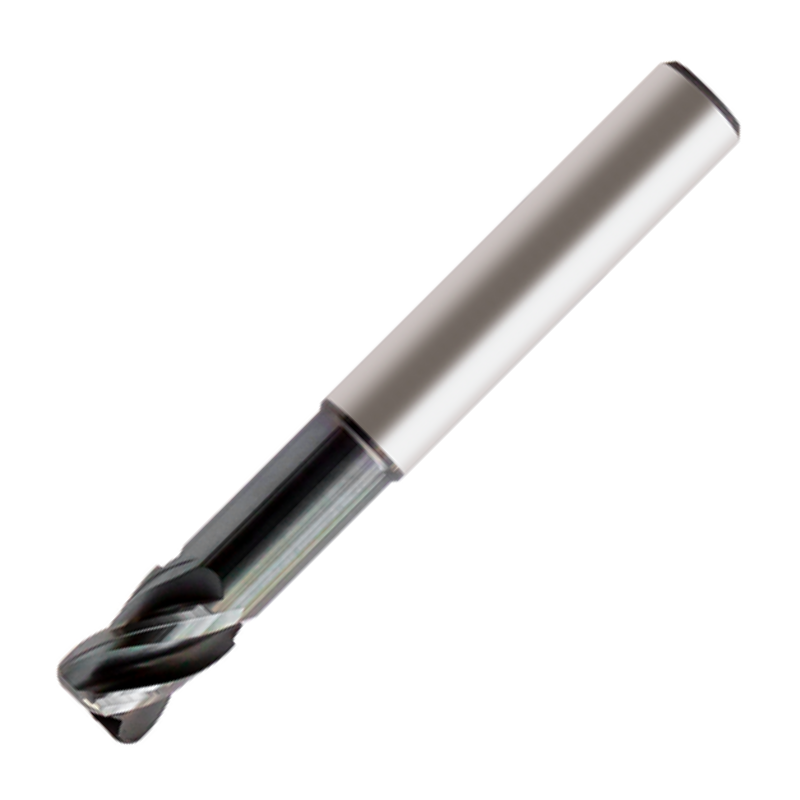

Europa Tools Carbide End Mill 4 Flute Corner Radius - Long Length Necked - Mastermill VX - 5mm x R0.5 x 17mm

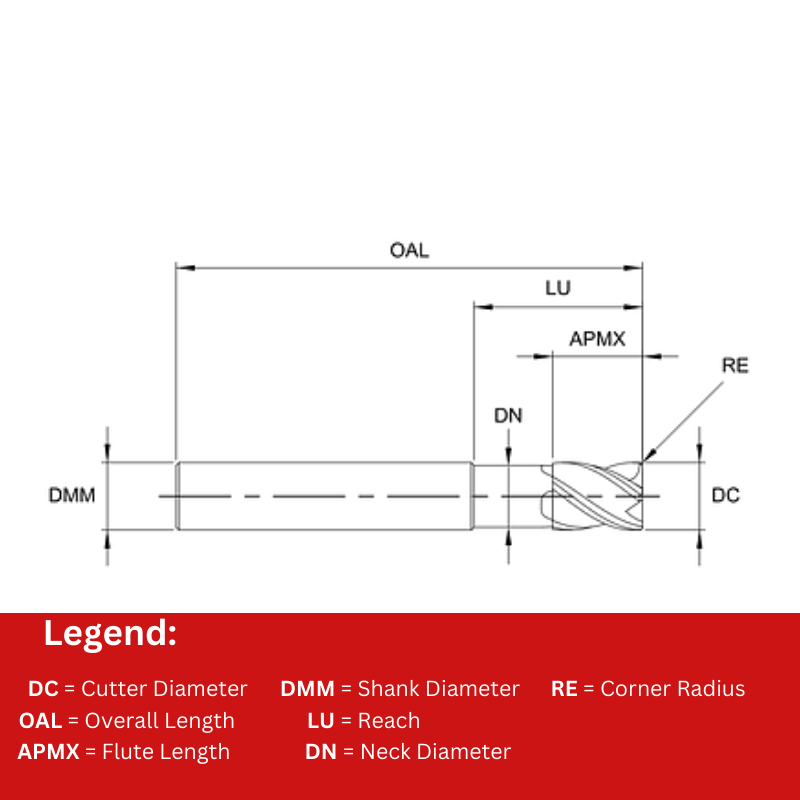

| Cutter Diameter (DC) | 5 |
| Number of Flute | 4 |
| Flute Length (APMX) | 10 |
| Overall Length (OAL) | 57 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 17 |
Learn more about Klarna
Engineered for precision in deep pockets and hard‑to‑reach geometries, the Europa Tools Mastermill VX 4‑flute carbide end mill delivers dependable finishes and long‑lasting performance in demanding operations. Its 5 mm cutting diameter, 0.5 mm corner radius, and extended neck geometry provide the reach and strength needed for intricate milling tasks.
- Diameter: 5 mm cutting diameter for precise material removal
- Corner Radius: R0.5 to strengthen the tip, reduce chipping, and improvePart quality on fillets and tight radii
- Flutes: 4 flutes for efficient chip evacuation and a smoother surface finish
- Length/Neck: Long‑length necked design with a 17 mm reach to access deep cavities
- Coating: Mastermill VX coating enhances wear resistance and enables high‑speed cutting
- Material: Solid carbide for rigidity, wear resistance, and consistent tolerances
This end mill is built to tackle challenging geometries with confidence—from deep pockets to narrow channels—while maintaining accuracy and a dependable surface finish. The four‑flute geometry optimizes chip clearance at higher feed rates, helping you achieve productive cycles without sacrificing part quality. The Mastermill VX coating reduces wear in tough materials, extending tool life and reducing downtime during precision machining projects.
| Cutter Diameter (DC) | 5 |
| Number of Flute | 4 |
| Flute Length (APMX) | 10 |
| Overall Length (OAL) | 57 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 17 |
| Corner Radius (RE) | 0.5 |
| Neck Diameter (DN) | 4.7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute Corner Radius - Long Length Necked - Mastermill VX
View full collection →You are viewing EUR-1713299008. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Neck Diameter (DN) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| EUR-1713290300 | 3 | 7 | 54 | 6 | 12 | 0.3 | 2.7 | £40.05 | 1-2 days | |
| EUR-1713299001 | 3 | 7 | 57 | 6 | 17 | 0.3 | 2.7 | £40.05 | 1-2 days | |
| EUR-1713299002 | 3 | 7 | 54 | 6 | 12 | 0.5 | 2.7 | £40.05 | 1-2 days | |
| EUR-1713299003 | 3 | 7 | 57 | 6 | 17 | 0.5 | 2.7 | £40.05 | 1-2 days | |
| EUR-1713290400 | 4 | 8 | 57 | 6 | 15 | 0.3 | 3.7 | £40.05 | 1-2 days | |
| EUR-1713299004 | 4 | 8 | 63 | 6 | 22 | 0.3 | 3.7 | £40.05 | 1-2 days | |
| EUR-1713299005 | 4 | 8 | 57 | 6 | 15 | 0.5 | 3.7 | £40.05 | 1-2 days | |
| EUR-1713299006 | 4 | 8 | 63 | 6 | 22 | 0.5 | 3.7 | £40.05 | 1-2 days | |
| EUR-1713290500 | 5 | 10 | 57 | 6 | 17 | 0.3 | 4.7 | £40.05 | 1-2 days | |
| EUR-1713299007 | 5 | 10 | 67 | 6 | 27 | 0.3 | 4.7 | £40.05 | 1-2 days | |
| EUR-1713299008 Viewing | 5 | 10 | 57 | 6 | 17 | 0.5 | 4.7 | £40.05 | 1-2 days | |
| EUR-1713299009 | 5 | 10 | 67 | 6 | 27 | 0.5 | 4.7 | £40.05 | 1-2 days | |
| EUR-1713290600 | 6 | 10 | 57 | 6 | 15 | 0.3 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299010 | 6 | 10 | 62 | 6 | 20 | 0.3 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299011 | 6 | 10 | 74 | 6 | 32 | 0.3 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299012 | 6 | 10 | 57 | 6 | 15 | 0.5 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299013 | 6 | 10 | 62 | 6 | 20 | 0.5 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299014 | 6 | 10 | 74 | 6 | 32 | 0.5 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299015 | 6 | 10 | 57 | 6 | 15 | 1 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299016 | 6 | 10 | 62 | 6 | 20 | 1 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299017 | 6 | 10 | 74 | 6 | 32 | 1 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713290800 | 8 | 12 | 63 | 8 | 20 | 0.5 | 7.5 | £55.72 | 1-2 days | |
| EUR-1713299018 | 8 | 12 | 73 | 8 | 30 | 0.5 | 7.5 | £61.53 | 1-2 days | |
| EUR-1713299019 | 8 | 12 | 90 | 8 | 46 | 0.5 | 7.5 | £66.27 | 1-2 days | |
| EUR-1713299020 | 8 | 12 | 63 | 8 | 20 | 1 | 7.5 | £55.72 | 1-2 days | |
| EUR-1713299021 | 8 | 12 | 73 | 8 | 30 | 1 | 7.5 | £61.53 | 1-2 days | |
| EUR-1713299022 | 8 | 12 | 90 | 8 | 46 | 1 | 7.5 | £66.27 | 1-2 days | |
| EUR-1713291000 | 10 | 14 | 72 | 10 | 25 | 0.5 | 9.2 | £87.81 | 1-2 days | |
| EUR-1713299023 | 10 | 14 | 82 | 10 | 35 | 0.5 | 9.2 | £100.14 | 1-2 days | |
| EUR-1713299024 | 10 | 14 | 102 | 10 | 55 | 0.5 | 9.2 | £105.31 | 1-2 days | |
| EUR-1713299025 | 10 | 14 | 82 | 10 | 25 | 1 | 9.2 | £87.81 | 1-2 days | |
| EUR-1713299026 | 10 | 14 | 82 | 10 | 35 | 1 | 9.2 | £100.14 | 1-2 days | |
| EUR-1713299027 | 10 | 14 | 102 | 10 | 55 | 1 | 9.2 | £105.31 | 1-2 days | |
| EUR-1713291200 | 12 | 16 | 83 | 12 | 30 | 0.5 | 11 | £119.72 | 1-2 days | |
| EUR-1713299028 | 12 | 16 | 93 | 12 | 40 | 0.5 | 11 | £125.58 | 1-2 days | |
| EUR-1713299029 | 12 | 16 | 117 | 12 | 64 | 0.5 | 11 | £160.53 | 1-2 days | |
| EUR-1713299030 | 12 | 16 | 83 | 12 | 30 | 1 | 11 | £160.06 | 1-2 days | |
| EUR-1713299031 | 12 | 16 | 93 | 12 | 40 | 1 | 11 | £125.58 | 1-2 days | |
| EUR-1713299032 | 12 | 16 | 117 | 12 | 64 | 1 | 11 | £160.53 | 1-2 days | |
| EUR-1713299033 | 12 | 16 | 83 | 12 | 30 | 2 | 11 | £119.72 | 1-2 days | |
| EUR-1713299034 | 12 | 16 | 93 | 12 | 40 | 2 | 11 | £125.58 | 1-2 days | |
| EUR-1713299035 | 12 | 16 | 117 | 12 | 64 | 2 | 11 | £160.53 | 1-2 days | |
| EUR-1713291600 | 16 | 22 | 92 | 16 | 38 | 1 | 15 | £198.62 | 1-2 days | |
| EUR-1713299036 | 16 | 22 | 109 | 16 | 55 | 1 | 15 | £252.06 | 1-2 days | |
| EUR-1713299037 | 16 | 22 | 141 | 16 | 87 | 1 | 15 | £272.03 | 1-2 days | |
| EUR-1713299038 | 16 | 22 | 92 | 16 | 38 | 2 | 15 | £198.62 | 1-2 days | |
| EUR-1713299039 | 16 | 22 | 109 | 16 | 55 | 2 | 15 | £252.06 | 1-2 days | |
| EUR-1713299040 | 16 | 22 | 141 | 16 | 87 | 2 | 15 | £272.03 | 1-2 days | |
| EUR-1713299041 | 16 | 22 | 92 | 16 | 38 | 3 | 15 | £198.62 | 1-2 days | |
| EUR-1713299042 | 16 | 22 | 109 | 16 | 55 | 3 | 15 | £252.06 | 1-2 days | |
| EUR-1713299043 | 16 | 22 | 141 | 16 | 87 | 3 | 15 | £272.03 | 1-2 days | |
| EUR-1713292000 | 20 | 26 | 104 | 20 | 50 | 1 | 19 | £356.56 | 1-2 days | |
| EUR-1713299044 | 20 | 26 | 124 | 20 | 70 | 1 | 19 | £454.22 | 1-2 days | |
| EUR-1713299045 | 20 | 26 | 164 | 20 | 110 | 1 | 19 | £527.24 | 1-2 days | |
| EUR-1713299046 | 20 | 26 | 104 | 20 | 50 | 2 | 19 | £356.56 | 1-2 days | |
| EUR-1713299047 | 20 | 26 | 124 | 20 | 70 | 2 | 19 | £454.22 | 1-2 days | |
| EUR-1713299048 | 20 | 26 | 164 | 20 | 110 | 2 | 19 | £527.24 | 1-2 days | |
| EUR-1713299049 | 20 | 26 | 104 | 20 | 50 | 3 | 19 | £356.56 | 1-2 days | |
| EUR-1713299050 | 20 | 26 | 124 | 20 | 70 | 3 | 19 | £454.22 | 1-2 days | |
| EUR-1713299051 | 20 | 26 | 164 | 20 | 110 | 3 | 19 | £527.24 | 1-2 days |
