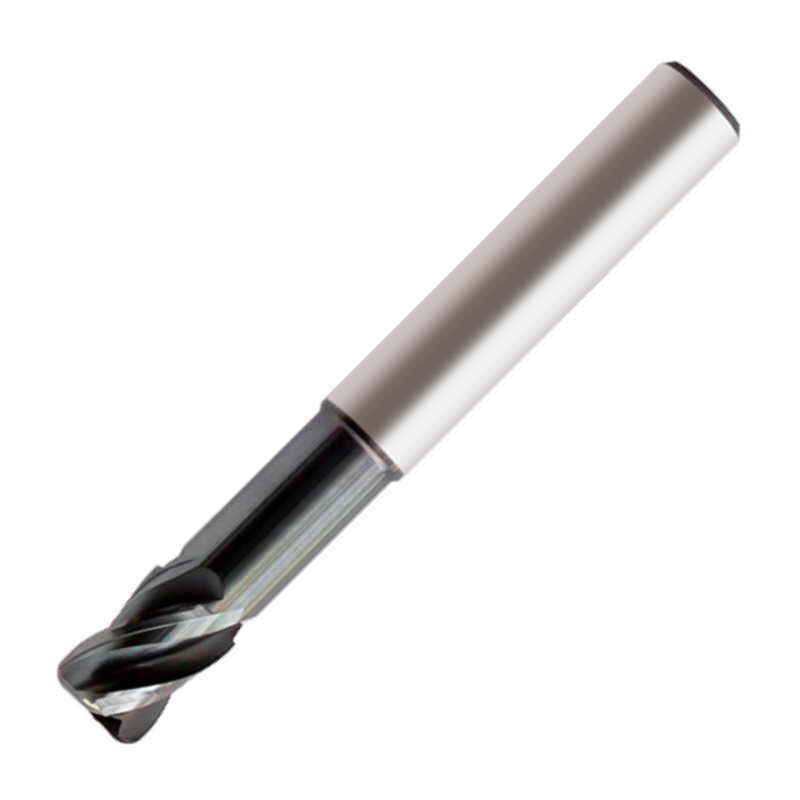

Europa Tools Carbide End Mill 4 Flute Corner Radius - Long Length Necked - Mastermill VX - 20mm x R2 x 110mm

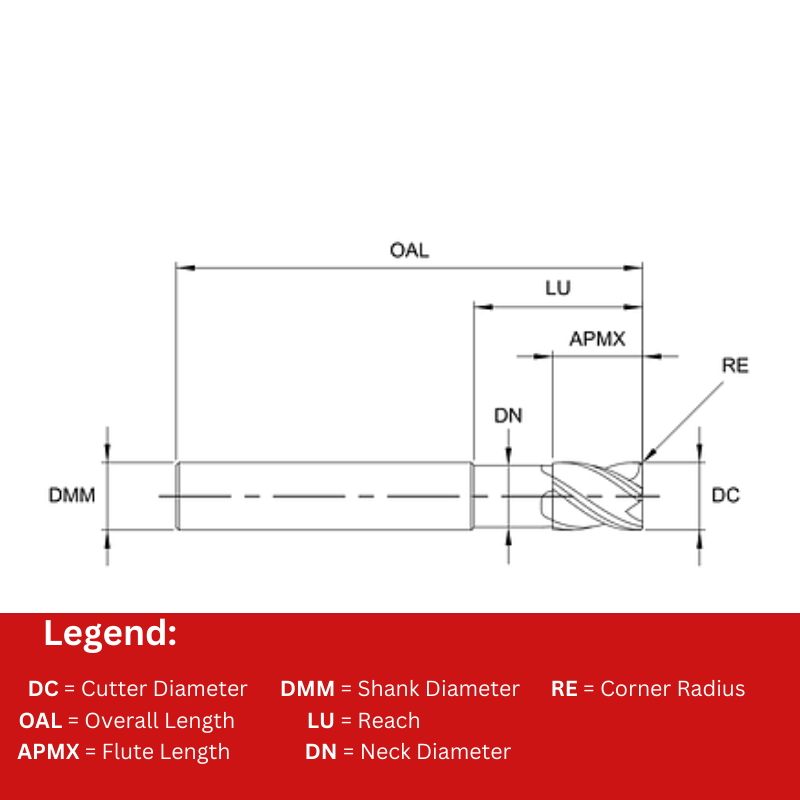

| Cutter Diameter (DC) | 20 |
| Number of Flute | 4 |
| Flute Length (APMX) | 26 |
| Overall Length (OAL) | 164 |
| Shank Diameter (DMM) | 20 |
| Reach (LU) | 110 |
Learn more about Klarna
Engineered for precision and durability, the Europa Tools Carbide End Mill with Mastermill VX coating is built for deep cavity work and hard-to-reach features. This 20 mm diameter, 2 mm corner radius tool combines long-reach capability with reliable performance in demanding machining environments.
- Diameter: 20 mm
- Corner Radius: R2 (2 mm) for added edge strength and reduced chipping
- Overall Length: 110 mm
- Neck Design: Long Length Necked for extended reach into deep cavities
- Flute Count: 4 flutes for efficient chip evacuation and smooth surface finish
- Coating: Mastermill VX for improved wear resistance and high-speed cutting
- Material: Solid carbide for rigidity and cutting performance
- Applications: Ideal for deep pockets, internal corners, slots, and challenging cavity work
This end mill is designed to withstand demanding cutting conditions, delivering consistent finishes and longer tool life. The combination of a corner radius, four flutes, and a long neck creates a balance of strength, reach, and precision, making it a reliable choice for engineers tackling complex geometries and tight tolerances. Mastermill VX enhances wear resistance, enabling productive feeds and speeds while maintaining accuracy across multiple passes.
| Cutter Diameter (DC) | 20 |
| Number of Flute | 4 |
| Flute Length (APMX) | 26 |
| Overall Length (OAL) | 164 |
| Shank Diameter (DMM) | 20 |
| Reach (LU) | 110 |
| Corner Radius (RE) | 2 |
| Neck Diameter (DN) | 19 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Europa Tools Carbide End Mills 4 Flute Corner Radius - Long Length Necked - Mastermill VX
View full collection →You are viewing EUR-1713299048. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Neck Diameter (DN) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| EUR-1713290300 | 3 | 7 | 54 | 6 | 12 | 0.3 | 2.7 | £40.05 | 1-2 days | |
| EUR-1713299001 | 3 | 7 | 57 | 6 | 17 | 0.3 | 2.7 | £40.05 | 1-2 days | |
| EUR-1713299002 | 3 | 7 | 54 | 6 | 12 | 0.5 | 2.7 | £40.05 | 1-2 days | |
| EUR-1713299003 | 3 | 7 | 57 | 6 | 17 | 0.5 | 2.7 | £40.05 | 1-2 days | |
| EUR-1713290400 | 4 | 8 | 57 | 6 | 15 | 0.3 | 3.7 | £40.05 | 1-2 days | |
| EUR-1713299004 | 4 | 8 | 63 | 6 | 22 | 0.3 | 3.7 | £40.05 | 1-2 days | |
| EUR-1713299005 | 4 | 8 | 57 | 6 | 15 | 0.5 | 3.7 | £40.05 | 1-2 days | |
| EUR-1713299006 | 4 | 8 | 63 | 6 | 22 | 0.5 | 3.7 | £40.05 | 1-2 days | |
| EUR-1713290500 | 5 | 10 | 57 | 6 | 17 | 0.3 | 4.7 | £40.05 | 1-2 days | |
| EUR-1713299007 | 5 | 10 | 67 | 6 | 27 | 0.3 | 4.7 | £40.05 | 1-2 days | |
| EUR-1713299008 | 5 | 10 | 57 | 6 | 17 | 0.5 | 4.7 | £40.05 | 1-2 days | |
| EUR-1713299009 | 5 | 10 | 67 | 6 | 27 | 0.5 | 4.7 | £40.05 | 1-2 days | |
| EUR-1713290600 | 6 | 10 | 57 | 6 | 15 | 0.3 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299010 | 6 | 10 | 62 | 6 | 20 | 0.3 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299011 | 6 | 10 | 74 | 6 | 32 | 0.3 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299012 | 6 | 10 | 57 | 6 | 15 | 0.5 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299013 | 6 | 10 | 62 | 6 | 20 | 0.5 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299014 | 6 | 10 | 74 | 6 | 32 | 0.5 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299015 | 6 | 10 | 57 | 6 | 15 | 1 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299016 | 6 | 10 | 62 | 6 | 20 | 1 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713299017 | 6 | 10 | 74 | 6 | 32 | 1 | 5.5 | £40.05 | 1-2 days | |
| EUR-1713290800 | 8 | 12 | 63 | 8 | 20 | 0.5 | 7.5 | £55.72 | 1-2 days | |
| EUR-1713299018 | 8 | 12 | 73 | 8 | 30 | 0.5 | 7.5 | £61.53 | 1-2 days | |
| EUR-1713299019 | 8 | 12 | 90 | 8 | 46 | 0.5 | 7.5 | £66.27 | 1-2 days | |
| EUR-1713299020 | 8 | 12 | 63 | 8 | 20 | 1 | 7.5 | £55.72 | 1-2 days | |
| EUR-1713299021 | 8 | 12 | 73 | 8 | 30 | 1 | 7.5 | £61.53 | 1-2 days | |
| EUR-1713299022 | 8 | 12 | 90 | 8 | 46 | 1 | 7.5 | £66.27 | 1-2 days | |
| EUR-1713291000 | 10 | 14 | 72 | 10 | 25 | 0.5 | 9.2 | £87.81 | 1-2 days | |
| EUR-1713299023 | 10 | 14 | 82 | 10 | 35 | 0.5 | 9.2 | £100.14 | 1-2 days | |
| EUR-1713299024 | 10 | 14 | 102 | 10 | 55 | 0.5 | 9.2 | £105.31 | 1-2 days | |
| EUR-1713299025 | 10 | 14 | 82 | 10 | 25 | 1 | 9.2 | £87.81 | 1-2 days | |
| EUR-1713299026 | 10 | 14 | 82 | 10 | 35 | 1 | 9.2 | £100.14 | 1-2 days | |
| EUR-1713299027 | 10 | 14 | 102 | 10 | 55 | 1 | 9.2 | £105.31 | 1-2 days | |
| EUR-1713291200 | 12 | 16 | 83 | 12 | 30 | 0.5 | 11 | £119.72 | 1-2 days | |
| EUR-1713299028 | 12 | 16 | 93 | 12 | 40 | 0.5 | 11 | £125.58 | 1-2 days | |
| EUR-1713299029 | 12 | 16 | 117 | 12 | 64 | 0.5 | 11 | £160.53 | 1-2 days | |
| EUR-1713299030 | 12 | 16 | 83 | 12 | 30 | 1 | 11 | £160.06 | 1-2 days | |
| EUR-1713299031 | 12 | 16 | 93 | 12 | 40 | 1 | 11 | £125.58 | 1-2 days | |
| EUR-1713299032 | 12 | 16 | 117 | 12 | 64 | 1 | 11 | £160.53 | 1-2 days | |
| EUR-1713299033 | 12 | 16 | 83 | 12 | 30 | 2 | 11 | £119.72 | 1-2 days | |
| EUR-1713299034 | 12 | 16 | 93 | 12 | 40 | 2 | 11 | £125.58 | 1-2 days | |
| EUR-1713299035 | 12 | 16 | 117 | 12 | 64 | 2 | 11 | £160.53 | 1-2 days | |
| EUR-1713291600 | 16 | 22 | 92 | 16 | 38 | 1 | 15 | £198.62 | 1-2 days | |
| EUR-1713299036 | 16 | 22 | 109 | 16 | 55 | 1 | 15 | £252.06 | 1-2 days | |
| EUR-1713299037 | 16 | 22 | 141 | 16 | 87 | 1 | 15 | £272.03 | 1-2 days | |
| EUR-1713299038 | 16 | 22 | 92 | 16 | 38 | 2 | 15 | £198.62 | 1-2 days | |
| EUR-1713299039 | 16 | 22 | 109 | 16 | 55 | 2 | 15 | £252.06 | 1-2 days | |
| EUR-1713299040 | 16 | 22 | 141 | 16 | 87 | 2 | 15 | £272.03 | 1-2 days | |
| EUR-1713299041 | 16 | 22 | 92 | 16 | 38 | 3 | 15 | £198.62 | 1-2 days | |
| EUR-1713299042 | 16 | 22 | 109 | 16 | 55 | 3 | 15 | £252.06 | 1-2 days | |
| EUR-1713299043 | 16 | 22 | 141 | 16 | 87 | 3 | 15 | £272.03 | 1-2 days | |
| EUR-1713292000 | 20 | 26 | 104 | 20 | 50 | 1 | 19 | £356.56 | 1-2 days | |
| EUR-1713299044 | 20 | 26 | 124 | 20 | 70 | 1 | 19 | £454.22 | 1-2 days | |
| EUR-1713299045 | 20 | 26 | 164 | 20 | 110 | 1 | 19 | £527.24 | 1-2 days | |
| EUR-1713299046 | 20 | 26 | 104 | 20 | 50 | 2 | 19 | £356.56 | 1-2 days | |
| EUR-1713299047 | 20 | 26 | 124 | 20 | 70 | 2 | 19 | £454.22 | 1-2 days | |
| EUR-1713299048 Viewing | 20 | 26 | 164 | 20 | 110 | 2 | 19 | £527.24 | 1-2 days | |
| EUR-1713299049 | 20 | 26 | 104 | 20 | 50 | 3 | 19 | £356.56 | 1-2 days | |
| EUR-1713299050 | 20 | 26 | 124 | 20 | 70 | 3 | 19 | £454.22 | 1-2 days | |
| EUR-1713299051 | 20 | 26 | 164 | 20 | 110 | 3 | 19 | £527.24 | 1-2 days |
