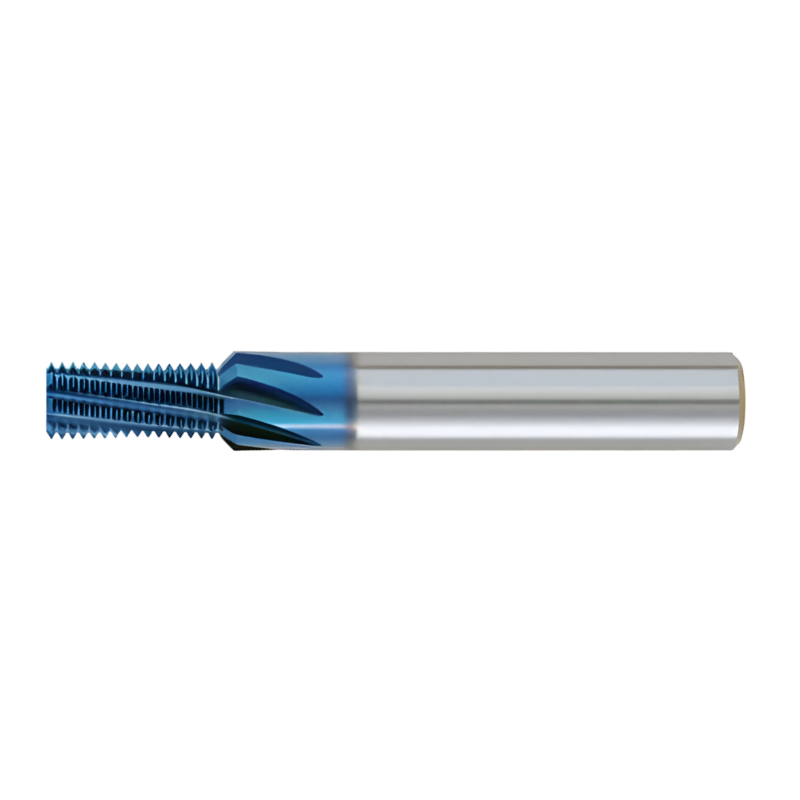

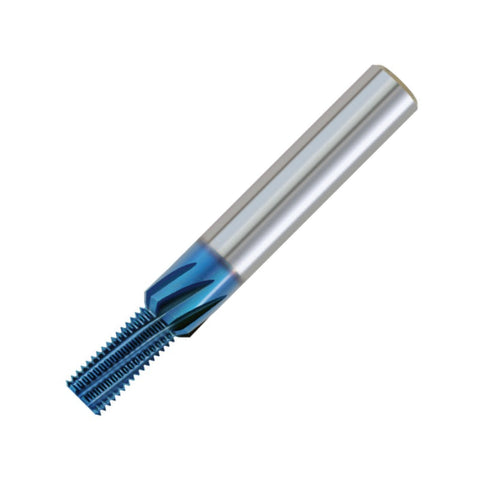

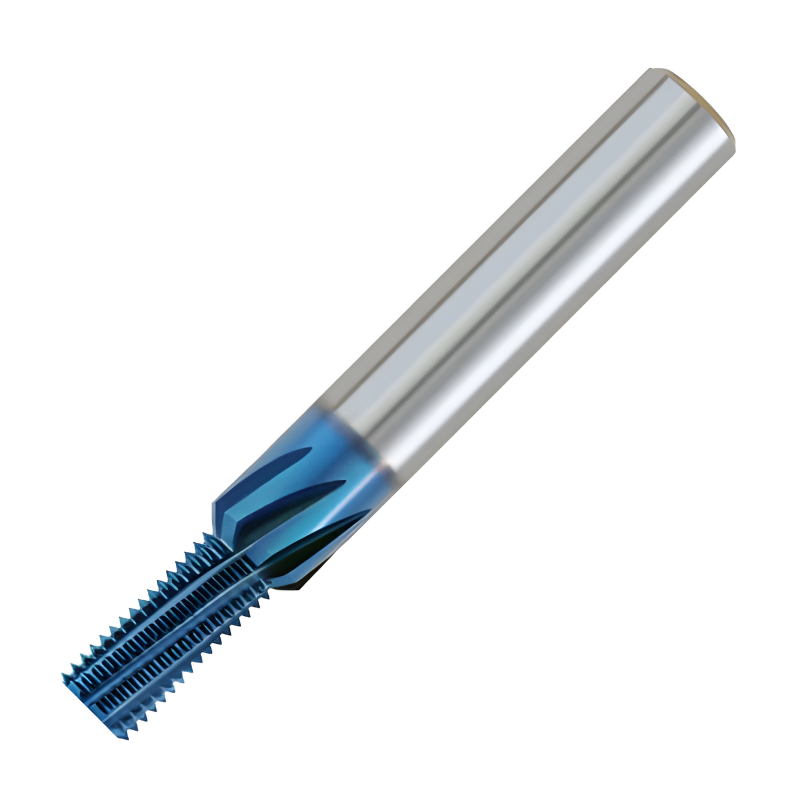

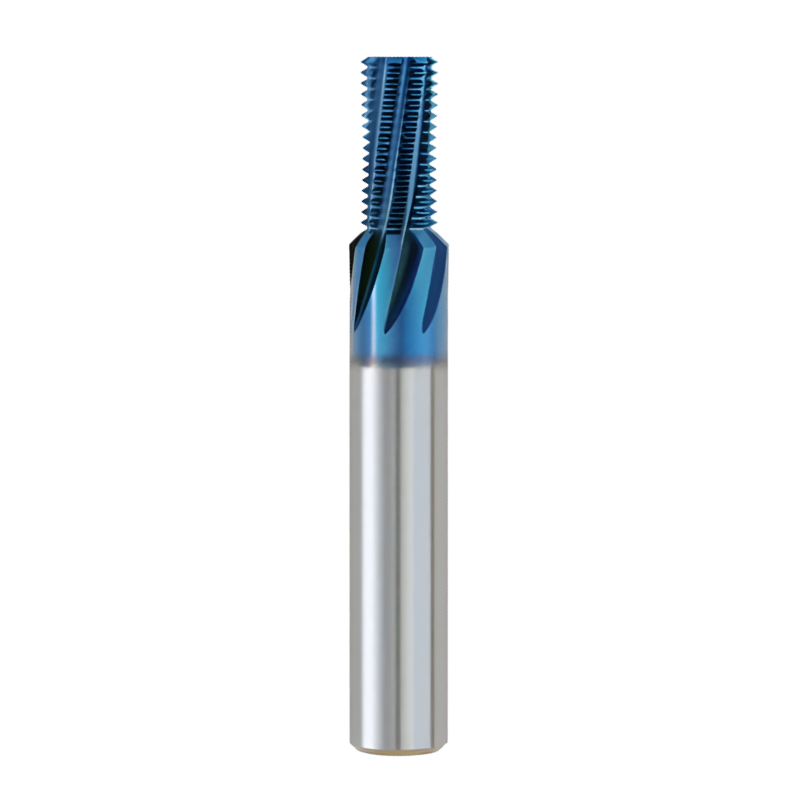

Carmex Thread Mills Solid Carbide - Fast Type - With Internal Coolant Bore - UN (UNC UNF UNEF UNS) - 5/16 x 18 - MT8

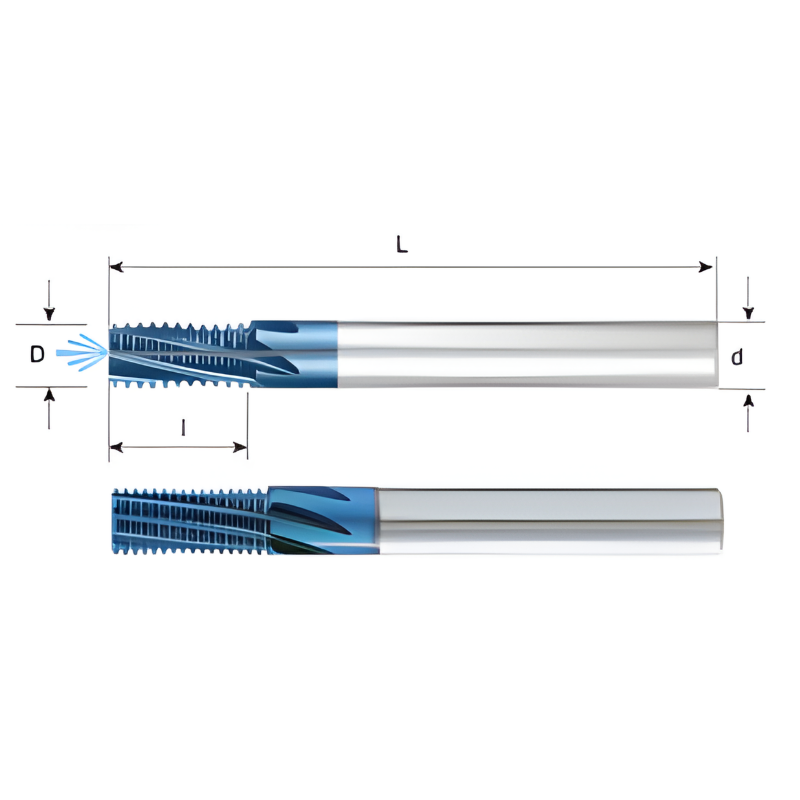

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 5/16 |
| Pitch | 18 |
| Diameter (D) | 6 |
| Flute Length (l) | 14.8 |
| Shank Diameter (d) | 10 |
Learn more about Klarna
The Carmex Fast Type solid carbide thread mill is a high-performance tool built for fast, precise thread milling on CNC machines. Designed for production environments that require UNC/UNF/UNE.../UNS threads, it delivers rapid cycle times without sacrificing accuracy.
- Diameter x pitch: 5/16" diameter with 18 threads per inch (5/16-18)
- Thread standards: Supports UN, UNC, UNF, UNEF, UNS threading
- Shank: MT8 Morse taper shank for secure toolholding
- Material: Solid carbide for exceptional rigidity and wear resistance
- Flute count: 5–8 flutes to reduce machining time while maintaining finish quality
- Internal coolant bore: Built-in coolant channel ensures efficient cooling and chip evacuation
- Fast Type geometry: Optimized for high-speed threading with consistent chip control
- Applications: Ideal for threading through-holes and through- or blind-hole work on metal components
The combination of a high-flute design and an internal coolant bore translates to faster cycle times, better temperature management, and cleaner thread profiles. The solid carbide construction provides the rigidity needed to maintain precise tolerances across challenging materials, while the MT8 shank ensures broad compatibility with common CNC spindles. This tool is well-suited for automotive, aerospace, and general manufacturing tasks where reliable UNC/UNF/UNE... thread milling is essential for production throughput and repeatable results.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 5/16 |
| Pitch | 18 |
| Diameter (D) | 6 |
| Flute Length (l) | 14.8 |
| Shank Diameter (d) | 10 |
| No of Flutes | 6 |
| Overall Length (L) | 73 |
| Thread Mill Style | Fast + Chamfer + Coolant |
| Internal or External | Internal |
| Coating | MT8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Fast Solid Carbide Thread Mills - UN (UNC, UNF, UNEF) - With Internal Coolant Bore (FMT)
View full collection →You are viewing FMT1006F1418UNMT8. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| FMT08048E1220UNMT8 | 1/4 | 20 | 12.1 | 12.1 | 8 | 64 | £187.10 | 5 days | |
| FMT08052F1128UNMT8 | 1/4 | 28 | 11.3 | 11.3 | 8 | 64 | £187.10 | 5 days | |
| FMT10066G1424UNMT8 | 5/16 | 24 | 14.3 | 14.3 | 10 | 73 | £215.78 | 5 days | |
| FMT1006F1418UNMT8 Viewing | 5/16 | 18 | 14.8 | 14.8 | 10 | 73 | £215.78 | 5 days | |
| FMT10074F1616UNMT8 | 3/8 | 16 | 16.7 | 16.7 | 10 | 73 | £215.78 | 5 days | |
| FMT12082G1724UNMT8 | 3/8 9/16 5/8 11/16 | 24 | 17.5 | 17.5 | 12 | 84 | £269.98 | 5 days | |
| FMT12085F2014UNMT8 | 7/16 7/8 | 14 | 22 | 22 | 12 | 84 | £269.98 | 5 days | |
| FMT12092H2120UNMT8 | 7/16 | 20 | 21 | 21 | 12 | 84 | £269.98 | 5 days | |
| FMT12098F2413UNMT8 | 1/2 | 13 | 24.4 | 24.4 | 12 | 84 | £269.98 | 5 days | |
| FMT12098H1928UNMT8 | 7/16 - 1/2 | 28 | 20.5 | 20.5 | 12 | 84 | £269.98 | 5 days | |
| FMT14111H2220UNMT8 | 1/2 3/4 7/8 1 | 20 | 22.2 | 22.2 | 14 | 84 | £300.30 | 5 days | |
| FMT16116F2612UNMT8 | 9/16 1 | 12 | 26.5 | 26.5 | 16 | 105 | £318.52 | 5 days | |
| FMT16125H2618UNMT8 | 9/16 5/8 1 1/16 1 1/8 | 18 | 26.1 | 26.1 | 16 | 105 | £318.52 | 5 days | |
| FMT1612F3311UNMT8 | 5/8 | 11 | 33.4 | 33.4 | 16 | 105 | £318.52 | 5 days | |
| FMT20167H3416UNMT8 | 3/4 | 16 | 34.1 | 34.1 | 20 | 105 | £349.70 | 5 days |
