7/16, 7/8 x 14 TPI UN Internal Fast Thread Mill – Carmex FMT 12085 F20 14 UN MT8
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 7/16 7/8 |
| Pitch | 14 |
| Diameter (D) | 8.5 |
Learn more about Klarna
Description

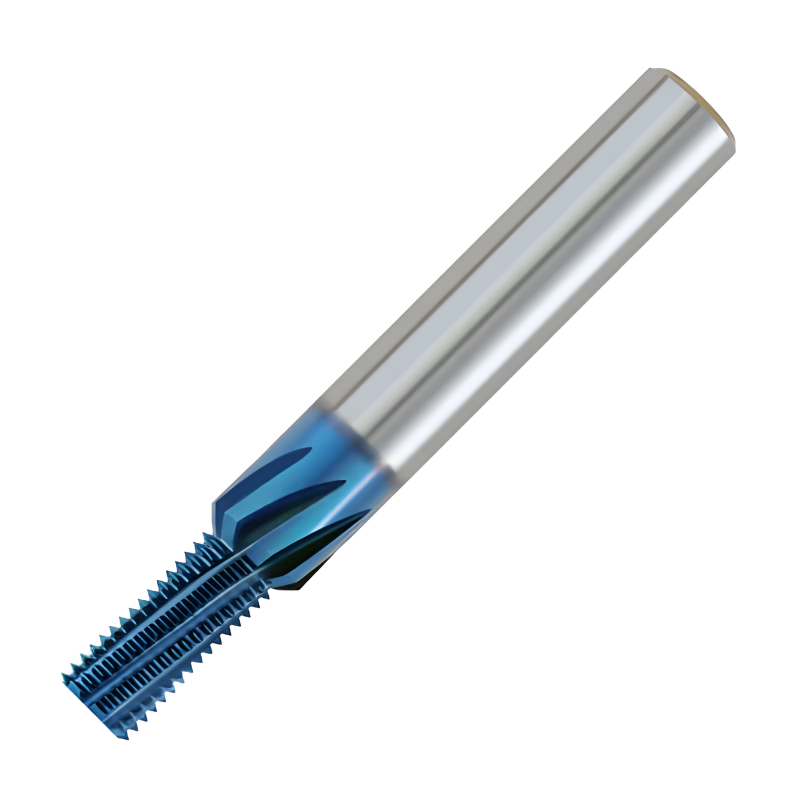

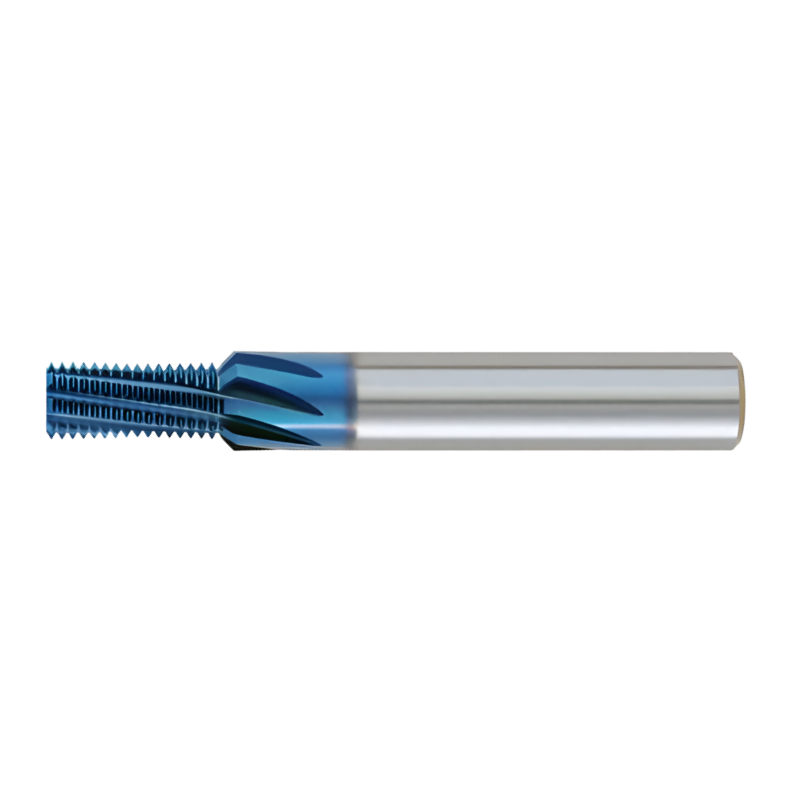

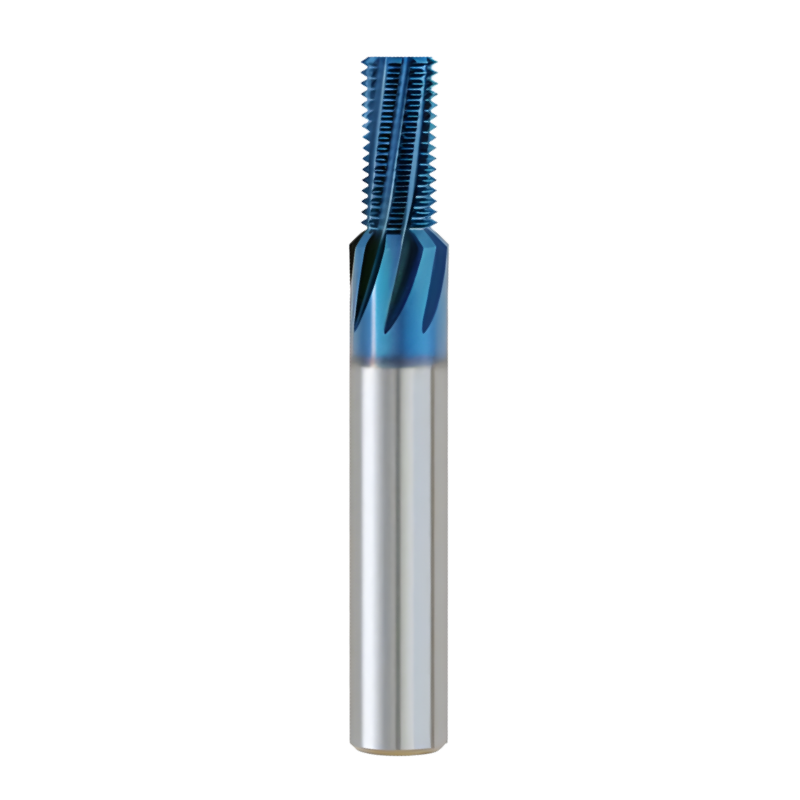

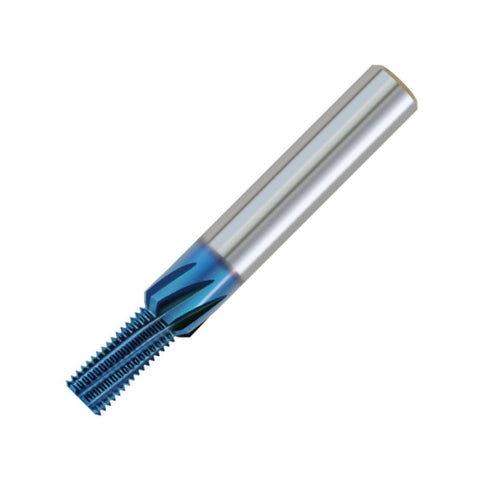

Solid carbide thread mill for internal 7/16, 7/8 x 14 TPI UN threads. Fast MT has more flutes than a standard Mill-Thread, so each thread takes less time to cut.
This is an internal-only thread mill, and Carmex doesn’t list it for external threads – that’s what the separate EMT range is for. MT8 is sub-micron carbide with a PVD triple coating that stands up to high heat and cuts smoothly in all materials. Carmex rates this tool for material up to 52 HRc.
- Carmex code: FMT 12085 F20 14 UN MT8
- Thread: 7/16, 7/8 x 14 TPI, UN – UNC/UNF/UNEF/UNS

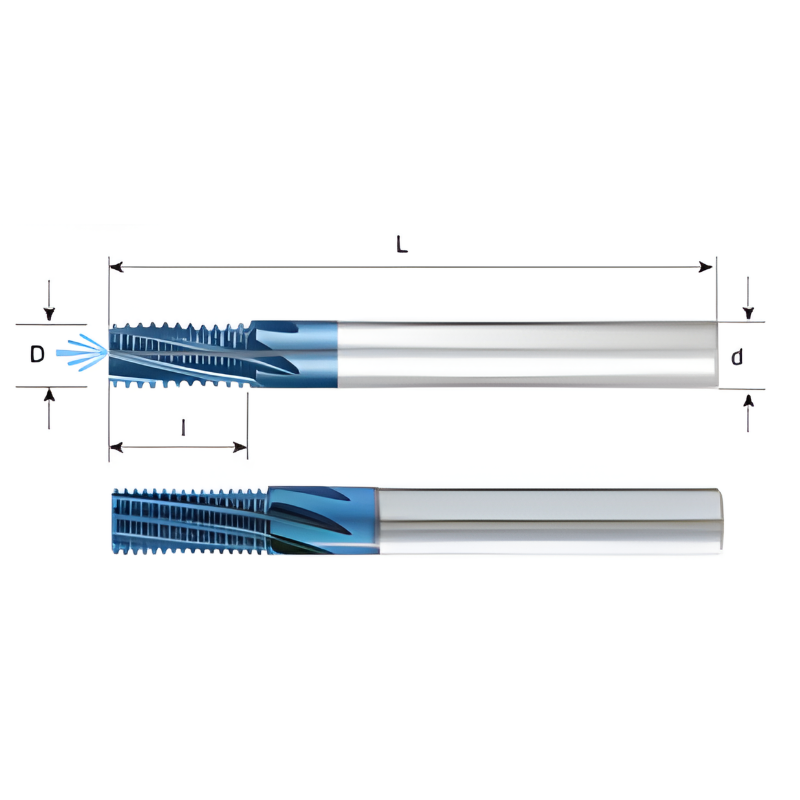

- Cutting diameter: Ø8.5 mm
- Flutes: 6
- Cutting length: 20.9 mm
- Overall length: 84 mm
- Shank: Ø12 mm
- Grade: MT8 – PVD triple-coated sub-micron carbide
- Coolant: Internal coolant bore
Part Numbers
- Protool Part Number
- FMT12085F2014UNMT8
- Brand
- Carmex
- Category
- Thread Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Fast Solid Carbide Thread Mills - UN (UNC, UNF, UNEF) - With Internal Coolant Bore (FMT)
View full collection →You are viewing FMT12085F2014UNMT8. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| FMT08048E1220UNMT8 | 1/4 | 20 | 12.1 | 12.1 | 8 | 64 | £187.10 | 5 days | |
| FMT08052F1128UNMT8 | 1/4 | 28 | 11.3 | 11.3 | 8 | 64 | £187.10 | 5 days | |
| FMT10066G1424UNMT8 | 5/16 | 24 | 14.3 | 14.3 | 10 | 73 | £215.78 | 5 days | |
| FMT1006F1418UNMT8 | 5/16 | 18 | 14.8 | 14.8 | 10 | 73 | £215.78 | 5 days | |
| FMT10074F1616UNMT8 | 3/8 | 16 | 16.7 | 16.7 | 10 | 73 | £215.78 | 5 days | |
| FMT12082G1724UNMT8 | 3/8 9/16 5/8 11/16 | 24 | 17.5 | 17.5 | 12 | 84 | £269.98 | 5 days | |
| FMT12085F2014UNMT8 Viewing | 7/16 7/8 | 14 | 22 | 22 | 12 | 84 | £269.98 | 5 days | |
| FMT12092H2120UNMT8 | 7/16 | 20 | 21 | 21 | 12 | 84 | £269.98 | 5 days | |
| FMT12098F2413UNMT8 | 1/2 | 13 | 24.4 | 24.4 | 12 | 84 | £269.98 | 5 days | |
| FMT12098H1928UNMT8 | 7/16 - 1/2 | 28 | 20.5 | 20.5 | 12 | 84 | £269.98 | 5 days | |
| FMT14111H2220UNMT8 | 1/2 3/4 7/8 1 | 20 | 22.2 | 22.2 | 14 | 84 | £300.30 | 5 days | |
| FMT16116F2612UNMT8 | 9/16 1 | 12 | 26.5 | 26.5 | 16 | 105 | £318.52 | 5 days | |
| FMT16125H2618UNMT8 | 9/16 5/8 1 1/16 1 1/8 | 18 | 26.1 | 26.1 | 16 | 105 | £318.52 | 5 days | |
| FMT1612F3311UNMT8 | 5/8 | 11 | 33.4 | 33.4 | 16 | 105 | £318.52 | 5 days | |
| FMT20167H3416UNMT8 | 3/4 | 16 | 34.1 | 34.1 | 20 | 105 | £349.70 | 5 days |
