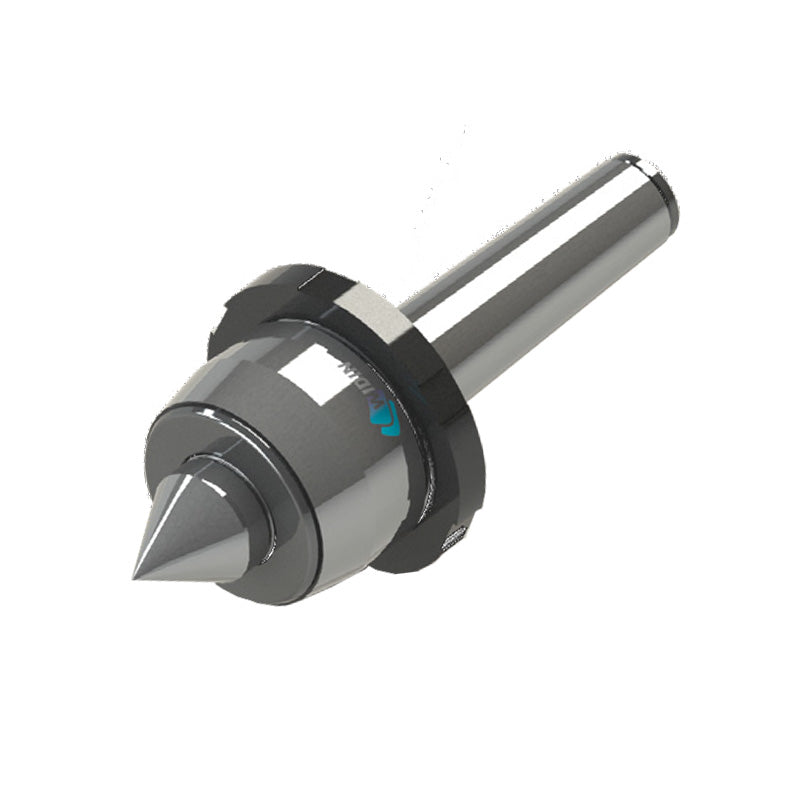

Widin Live Centre - Heavy Lathe - Minimizes Bite Interference - Nut Type - NCPN Type - NO.3

The Widin Live Centre is a heavy-lift nut-type live center designed for NC standard lathes. It minimizes bite interference to deliver smoother starts and finishes, improving surface quality and reducing tool wear. Morse tapers available include No. 3 and No. 6 to fit a wide range of machines.

This center is sealed to prevent the inflow of cutting oils and foreign substances, helping to lower maintenance needs and extend bearing life. It features a triplexed bearing structure for high rotational accuracy and durability, along with a hardened shaft rated at 58–62 HRC and an ultra-tight runout specification of 0.00012" (0.003 mm) for consistently precise results.

• No-bite turning advantage: Reduces interference during workpieces, enabling smoother cuts and cleaner surfaces without sacrificing holding power.
• Sealed nut-type design: Keeps oils and contaminants out of the bearing area, lowering maintenance and boosting reliability across demanding jobs.
• High-precision, durable construction: Triplex bearing system and hardened shaft deliver repeatable accuracy and long service life, even under tough turning conditions.

By choosing the Widin Live Centre, you gain a dependable, low-maintenance center that supports efficient workflows, reduces rework, and helps you achieve consistent, high-quality finishes on heavy-lathes.
