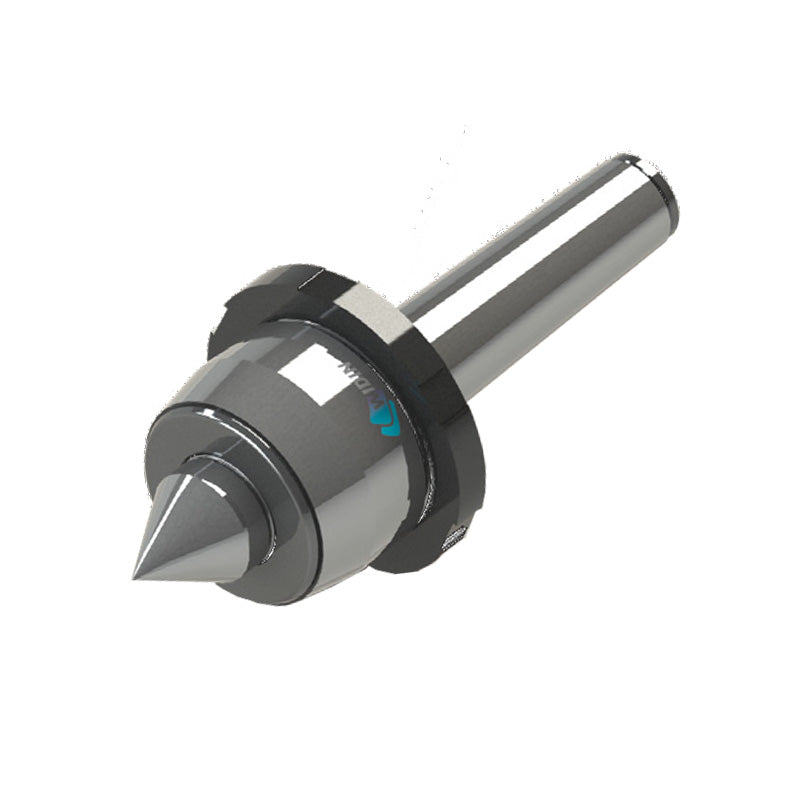

Widin Live Centre - Heavy Lathe - Minimizes Bite Interference - Nut Type - NCPN Type - NO.5

Widin Live Centre is a heavy-duty nut-type live center designed for lathes where precise centering and minimal bite interference matter. It delivers stable rotation under demanding turning conditions, helping you achieve clean finishes and consistent results.

This unit is available in Morse tapers No. 3 and No. 6 and comes sealed to prevent the inflow of cutting oils and other foreign substances. With a No.5 nut-type, NCPN configuration, it’s built to handle high workloads while maintaining accuracy.

• Oil- and Contaminant-Sealed Bearings: Sealed design prevents cutting oils and debris from entering the bearing, reducing wear, maintenance, and unexpected downtime.
• Ultra-Precise Triplex Bearing System: Three-bearing arrangement delivers smoother rotation, reduced runout, and longer service life even on tough turning operations.
• Hardened Shaft with Ultra-Low Runout: Shaft hardened to 58–62 HRC and runout of 0.00012" (0.003 mm) ensures stable tracking and superior surface finishes at high speeds.

Whether you’re finishing close-tolerance parts, producing repeatable batches, or tackling challenging materials, this Widin live centre keeps your spindle perfectly aligned with less noise, less vibration, and less maintenance. The combination of sealing, durable bearings, and a hard, low-runout shaft translates to faster setups, fewer adjustments, and consistently high-quality results across a wide range of turning applications.
