Widin Live Centre - Standard Lathe - Nut Type - NCN Type - NO.6
| Size | MT6 |
| Head Diameter | 105 |
| Point Length | 54 |
| Point Diameter | 45 |
Learn more about Klarna
Description

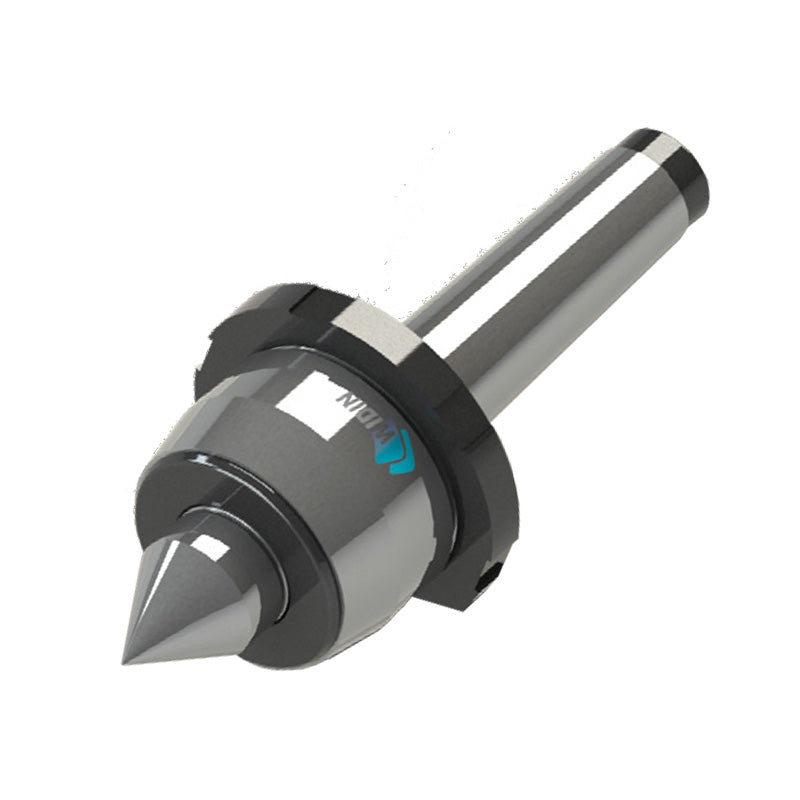

The Widin Live Centre is a Nut Type NC Standard Lathe live center, engineered for reliable support of rotating workpieces. It is available with Morse Tapers No. 3 or No. 6 and is sealed to prevent the inflow of cutting oils and foreign substances, delivering high rotational accuracy and long service life in demanding turning tasks.
- Triplex bearing precision and ultra-low runout: The triplex-bearing arrangement delivers exceptional rotational accuracy with runout as low as 0.00012 inches (0.003 mm), ensuring consistent concentricity during high-speed turning.
- Oil- and contaminant-sealed construction: Sealed to protect internal components from cutting oils and foreign substances, reducing wear and helping maintain precision between maintenance intervals.
- Hardened shaft with flexible Morse-taper mounting: Shaft hardened to 58–62 HRC for wear resistance and stability under load, available with No. 3 or No. 6 Morse taps for broad lathe compatibility.
This combination provides dependable, repeatable centering that supports tight tolerances and smooth finishes, reduces rework, and minimizes downtime between setups—helping your shop achieve faster, more predictable results with every turning operation.
Part Numbers
- Protool Part Number
- LC-6NCN
- Brand
- Widin
- Category
- Live Centre
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Live Centre - Standard Lathe - Nut Type - NCN Type
View full collection →You are viewing LC-6NCN. Click any other SKU to view its full details.

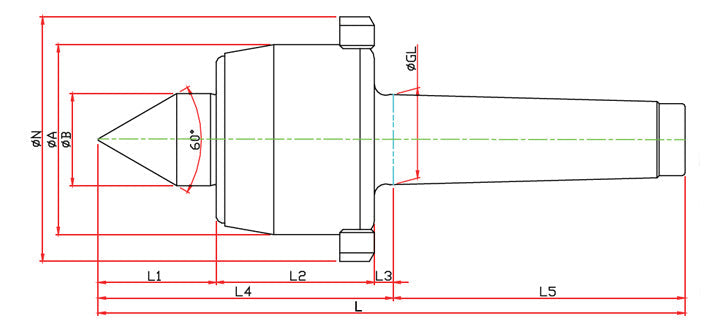

| Product SKU | Size | Head Diameter | Point Length | Point Diameter | Max RPM | Max Load | Concentricity | GL | L2 | L3 | L4 | L5 | L | N | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC-3NCN | MT3 | 50 | 27 | 22 | 4800 | 630 | 0.003 | 23.825 | 45 | 5 | 77 | 81 | 158 | 70 | £313.47 | 5 days | |
| LC-4NCN | MT4 | 66 | 41 | 32 | 3800 | 1100 | 0.003 | 31.267 | 55 | 6.5 | 102.5 | 101.5 | 204 | 85 | £354.70 | 5 days | |
| LC-5NCN | MT5 | 82 | 50 | 40 | 3400 | 1600 | 0.005 | 44.399 | 65 | 6.5 | 121.5 | 129.5 | 251 | 105 | £466.04 | 5 days | |
| LC-6NCN Viewing | MT6 | 105 | 54 | 45 | 3000 | 2100 | 0.005 | 63.384 | 80 | 8 | 142 | 182 | 324 | 130 | £1,051.77 | 5 days |
