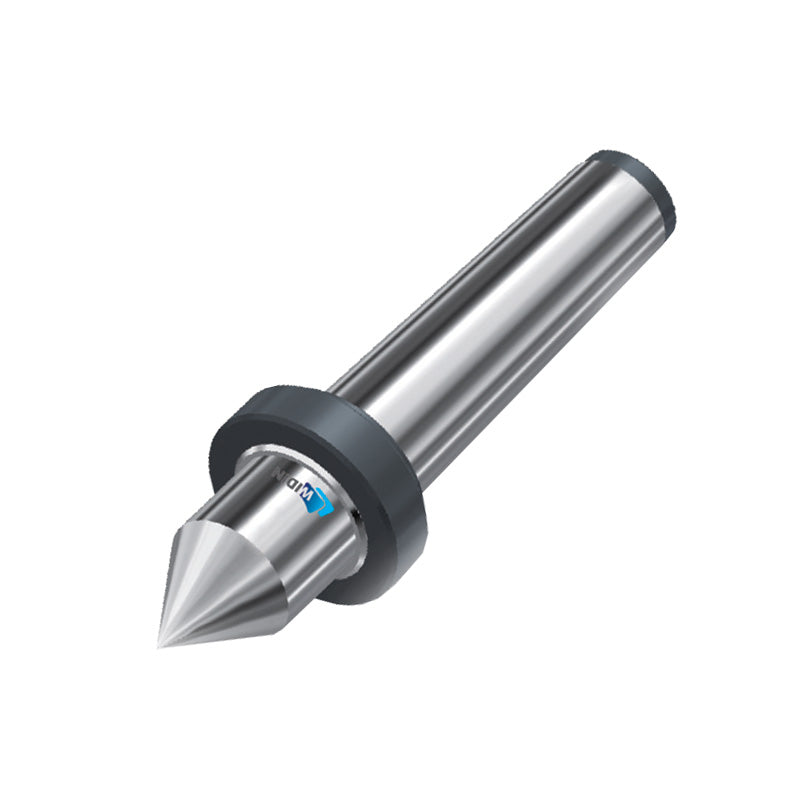

Widin Live Centre - Full Tipped Dead Centre - LM-AN Type - NO.6

Widin Live Centre - Full Tipped Dead Centre - LM-AN Type - NO.6

SKU:LM-6AN
FULL TIPPED DEAD CENTER Morse Tapers Available - No. 1 - No. 7 Run Out 0.00012" / 0.0002" or 0.003mm /0.005mm Read more ↓
Specification
SizeMT6
Head Diameter63.8
Point Length96.5
Concentricity0.005
GL63.348
L211.5
View all specifications ↓
£492.34
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30
  • FULL TIPPED DEAD CENTER
  • Morse Tapers Available - No. 1 - No. 7
  • Run Out 0.00012" / 0.0002" or 0.003mm /0.005mm

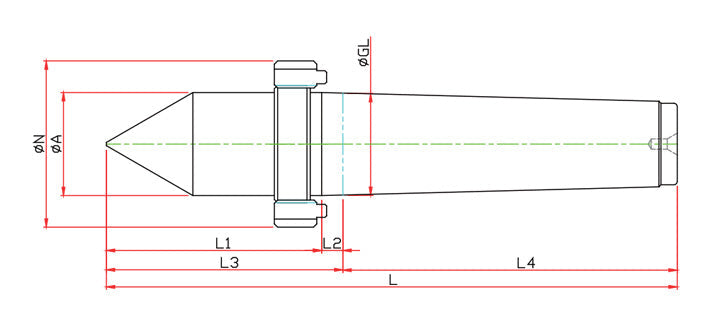

    • Size MT6
    Head Diameter 63.8
    Point Length 96.5
    Concentricity 0.005
    GL 63.348
    L2 11.5
    L3 108
    L4 182
    L 290
    N M68

    What time are Protool open?

    We are open Monday to Friday between 8:30am and 5pm.

    Do you offer Free Next Day delivery?

    Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

    We also offer the following:

    • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
    • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
    • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
    • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

    For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

    *T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

    ★★★★★
    Nice experience staff are very helpful and interested...
    Staff are very helpful and interested in providing a good service making us the customer feel valued.
    Bill
    ★★★★★
    first place we look
    honest about stock and prices are competitive.
    Phil
    ★★★★★
    Polite and helpful
    Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
    Graham
    ★★★★★
    Buying experience
    Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
    Jeremy

    Full Range: Widin Live Centre - Full Tipped Dead Centre - LM-AN Type

    View full collection →

    You are viewing LM-6AN. Click any other SKU to view its full details.

    Product SKUSizeHead DiameterPoint LengthConcentricityGLL2L3L4LNPriceStock Order
    LM-1AN MT112.231.50.00312.065536.553.590M16£96.36 5 days
    LM-2AN MT21841.50.00317.786.54864112M22£126.99 5 days
    LM-3AN MT32449.50.00323.8257.55781138M27£133.59 5 days
    LM-4AN MT431.662.50.00331.2671072.5102.5175M36£153.27 5 days
    LM-5AN MT544.7770.00344.3991188129.5217.5M48£175.20 5 days
    LM-6AN ViewingMT663.896.50.00563.34811.5108182290M68£492.34 5 days
    LM-7AN MT783.6108.50.00583.05811.5120250370M90£432.01 5 days
