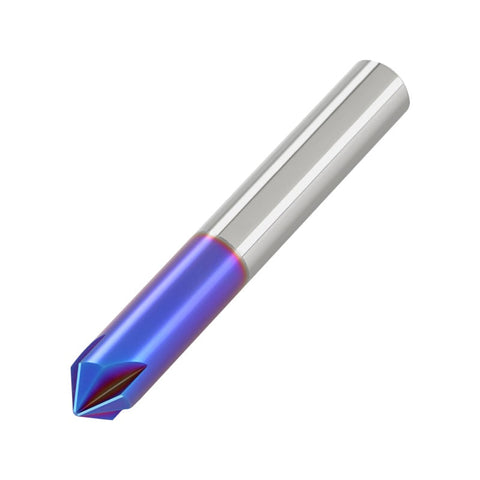

Carmex Chamfering End Mill - 60° Solid Carbide Countersink - 12mm - K20 Coated
| Shank Diameter | 12 |
| Web Thickness | 1 |
| Overall Length | 83 |
| Number of Flutes | 4 |
| Angle | 60 |
Learn more about Klarna
The Carmex 60° Solid Carbide Countersink End Mill is engineered for precise chamfering and deburring in metalworking, delivering clean edges and long tool life for professional workshops and production environments.
- Diameter: 12 mm
- Chamfer angle: 60° countersink geometry for accurate edge preparation
- Flutes: 4-flute design to balance cutting forces and improve chip evacuation
- Material: CR3 Ultra-Fine carbide grade with high hardness and toughness for edge stability and wear resistance
- Shank: Cylindrical DIN 6535-HA shank; Weldon shank option available upon request
- Coating: K20-coated with a new generation of PVD for high-performance cutting applications
- Application focus: Optimized for chamfering and deburring of metal edges with consistent, repeatable results
The combination of ultrafine carbide and advanced PVD coating delivers exceptional edge retention and stability, even under demanding production conditions. The four-flute geometry and precision grinding help minimize built-up edge and chatter, producing smooth, uniform chamfers with every pass. A robust DIN 6535-HA shank ensures secure tool seating, while the Weldon option provides flexibility for high-feed or high-tura milling setups when requested.
| Shank Diameter | 12 |
| Web Thickness | 1 |
| Overall Length | 83 |
| Number of Flutes | 4 |
| Angle | 60 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Chamfering End Mill - 60° Solid Carbide Countersink
View full collection →You are viewing MC12DA60K20. Click any other SKU to view its full details.
| Product SKU | Shank Diameter | Web Thickness | Overall Length | Number of Flutes | Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MC03DA60CR3 | 3 | 0.2 | 38 | 4 | 60 | £33.86 | 5 days | |
| MC04DA60CR3 | 4 | 0.3 | 50 | 4 | 60 | £35.91 | 5 days | |
| MC05DA60CR3 | 5 | 0.4 | 50 | 4 | 60 | £37.06 | 5 days | |
| MC06DA60CR3 | 6 | 0.5 | 57 | 4 | 60 | £39.26 | 5 days | |
| MC08DA60CR3 | 8 | 0.6 | 63 | 4 | 60 | £51.10 | 5 days | |
| MC10DA60CR3 | 10 | 0.8 | 72 | 4 | 60 | £66.44 | 5 days | |
| MC12DA60CR3 | 12 | 1 | 83 | 4 | 60 | £81.05 | 5 days | |
| MC03DA60K20 | 3 | 0.2 | 38 | 4 | 60 | £30.63 | 5 days | |
| MC04DA60K20 | 4 | 0.3 | 50 | 4 | 60 | £32.49 | 5 days | |
| MC05DA60K20 | 5 | 0.4 | 50 | 4 | 60 | £33.53 | 5 days | |
| MC06DA60K20 | 6 | 0.5 | 57 | 4 | 60 | £37.35 | 5 days | |
| MC08DA60K20 | 8 | 0.6 | 63 | 4 | 60 | £51.10 | 5 days | |
| MC10DA60K20 | 10 | 0.8 | 72 | 4 | 60 | £63.14 | 5 days | |
| MC12DA60K20 Viewing | 12 | 1 | 83 | 4 | 60 | £76.97 | 5 days |
