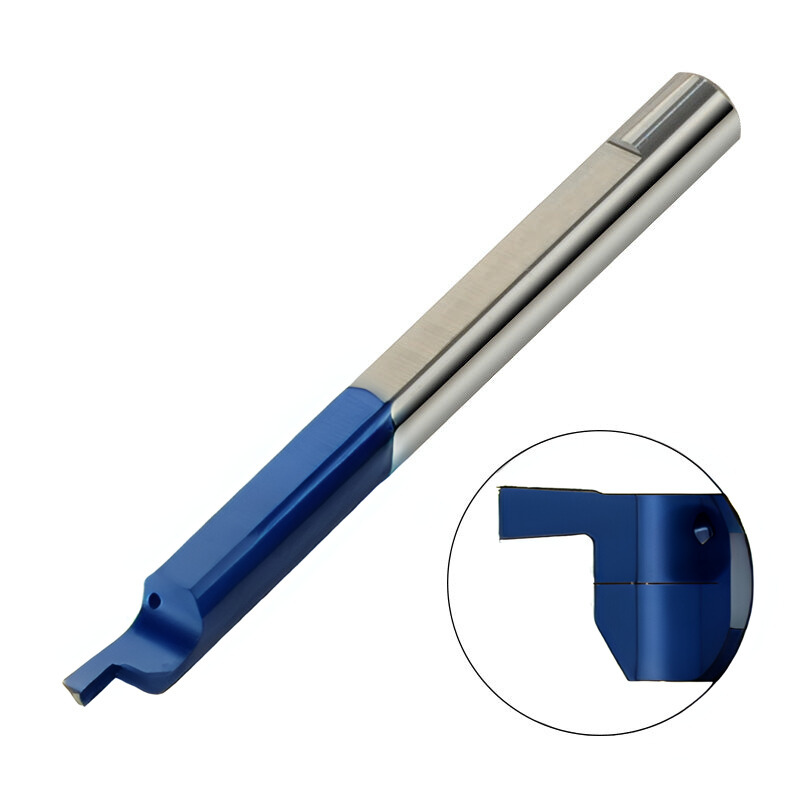

Carmex Carbide Tiny Tool - Face Grooving - MFL - Grade BMK - 5mm Minimum Diameter x 1.5mm Groove Width
| Application | Face Grooving (MFL) |
| Minimum Diameter | 5 |
| Groove Width (B) | 1.5 |
| Groove Depth (T) | 2.8 |
| Reach (L1) | 15 |
| Radius (R) | 0.1 |
Learn more about Klarna
The Carmex Carbide Tiny Tool - Face Grooving - MFL - Grade BMK - 5mm Minimum Diameter x 1.5mm Groove Width is a solid carbide bar designed for face grooving. Part of the Tiny Tools family, it’s engineered to create clean, straight grooves on small-diameter parts, helping you achieve consistent fits and reliable seals in precision assemblies.
Designed for demanding face grooving tasks, it features a 5 mm minimum diameter and a 1.5 mm groove width, with BMK-grade carbide that resists wear and maintains accuracy over many cycles.
- Straight groove geometry: Produces precise, straight grooves every time, improving part mating, reducing finishing passes, and delivering reliable results in small-bore applications.
- BMK-grade solid carbide durability: High wear resistance and long tool life under face grooving conditions, helping you complete more parts between tool changes.
- Compact, small-diameter-friendly design (5 mm min dia, 1.5 mm groove): Optimized for tight tolerances and tight bore grooves, with stable cutting and predictable dimensions.
By delivering reliable, straight grooves with durable carbide, the Carmex Tiny Tool helps you finish parts faster, reduce rework, and maintain tight tolerances across batches. Its geometry and materials are chosen for predictable performance, so you can trust results from first cut to last.
| Application | Face Grooving (MFL) |
| Minimum Diameter | 5 |
| Groove Width (B) | 1.5 |
| Groove Depth (T) | 2.8 |
| Reach (L1) | 15 |
| Radius (R) | 0.1 |
| L | 51 |
| F | 1.75 |
| D | 4.0 |
| Grade | BMK |
| Holder | SIM****H4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Face Grooving - Grade BMK (MFL)
View full collection →You are viewing MFL4B1.5L15BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| MFL4B0.5L15BMK | 5 | 0.5 | 1.2 | 15 | 0.05 | BMK | SIM****H4 | £26.49 | 5 days | |
| MFL4B0.75L15BMK | 5 | 0.75 | 1.2 | 15 | 0.1 | BMK | SIM****H4 | £26.49 | 5 days | |
| MFL4B1.0L15BMK | 5 | 1 | 1.5 | 15 | 0.1 | BMK | SIM****H4 | £26.49 | 5 days | |
| MFL4B1.5L15BMK Viewing | 5 | 1.5 | 2.8 | 15 | 0.1 | BMK | SIM****H4 | £26.49 | In Stock | |
| MFL4B1.5L17BMK | 5 | 1.5 | 3.5 | 17 | 0.1 | BMK | SIM****H4 | £26.98 | 5 days | |
| MFL4B2.0L17BMK | 5 | 2 | 5 | 17 | 0.1 | BMK | SIM****H4 | £29.13 | 5 days | |
| MFL5B0.5L22BMK | 6 | 0.5 | 1.2 | 22 | 0.05 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFL5B0.75L22BMK | 6 | 0.75 | 1.2 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFL5B1.0L22BMK | 6 | 1 | 1.5 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFL5B1.0L23BMK | 6 | 1 | 2.5 | 23 | 0.1 | BMK | SIM****H5 | £25.16 | 5 days | |
| MFL5B1.5L22BMK | 6 | 1.5 | 2.5 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFL5B1.5L23BMK | 6 | 1.5 | 3.5 | 23 | 0.1 | BMK | SIM****H5 | £25.16 | 5 days | |
| MFL5B2.0L22BMK | 6 | 2 | 3.8 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFL5B2.0L23BMK | 6 | 2 | 5 | 23 | 0.1 | BMK | SIM****H5 | £26.45 | 5 days | |
| MFL6B1.0L22BMK | 8 | 1 | 1.5 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | In Stock | |
| MFL6B1.5L22BMK | 8 | 1.5 | 2.5 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | In Stock | |
| MFL6B2.0L22BMK | 8 | 2 | 3 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MFL6B2.5L22BMK | 8 | 2.5 | 4.8 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | In Stock | |
| MFL6B3.0L30BMK | 8 | 3 | 6 | 30 | 0.1 | BMK | SIM****H6 | £32.00 | 5 days | |
| MFL8B2.5L22BMK | 10 | 2.5 | 3.5 | 22 | 0.1 | BMK | SIM****H8 | £36.24 | 5 days |
