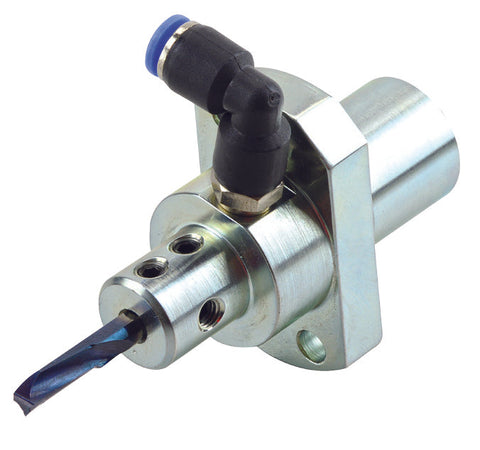

Carmex Tiny Tool Holder - Round Shank Holder For Swiss Machines to hold Carbide Small Boring Tool - 22mm Shank x 4mm Bore
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
External turning holders for bars from the Tiny Tools family, designed for back operations on Swiss-type CNC lathes with a sliding head. This holder is optimized to grip small carbide borers and is tailored for 22 mm shank tools with a 4 mm bore.
- Shank x Bore: Round shank 22 mm with a 4 mm bore to fit compatible carbide small boring tools.
- Intended Use: External turning holder designed for back operations on Swiss-type CNC lathes with a sliding head.
- Dual Grip Directions: Tiny bar can be gripped in two directions, enabling turning on both X and Y axes.
- Internal Coolant: Delivers coolant directly to the cutting edge for improved cooling and chip control.
- Coating: Coated holder to provide abrasion resistance and extended tool life.
- Bar Compatibility: Compatible with bars ranging from 3.0 mm to 10.0 mm in diameter.
This Tiny Tools external turning holder provides reliable support for small carbide tools on Swiss machines, with dual-direction gripping and integrated coolant to help maintain precision and consistent results during back operations.
Part Numbers
- Protool Part Number
- SIM22SH4
- Brand
- Carmex
- Category
- Tiny Tool Holders
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Tiny Tool Holder - Round Shank Holder For Swiss Machines to hold Carbide Small Boring Tool
View full collection →You are viewing SIM22SH4. Click any other SKU to view its full details.
| Product SKU | Inside Diameter | Outside Diameter | d | L | L1 | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| SIM22SH3 | 3 | 22 | 16 | 40 | 18 | £96.54 | 5 days | |
| SIM22SH3-L | 3 | 22 | 16 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH4 Viewing | 4 | 22 | 16 | 40 | 18 | £96.54 | 5 days | |
| SIM22SH4-L | 4 | 22 | 16 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH5 | 5 | 22 | 16 | 40 | 18 | £96.54 | 5 days | |
| SIM22SH5-L | 5 | 22 | 16 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH6 | 6 | 22 | 16 | 40 | 18 | £96.54 | 5 days | |
| SIM22SH6-L | 6 | 22 | 16 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH8 | 8 | 22 | 20 | 40 | 18 | £96.54 | In Stock | |
| SIM22SH8-L | 8 | 22 | 20 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH10 | 10 | 22 | 20 | 40 | 18 | £96.54 | In Stock |
