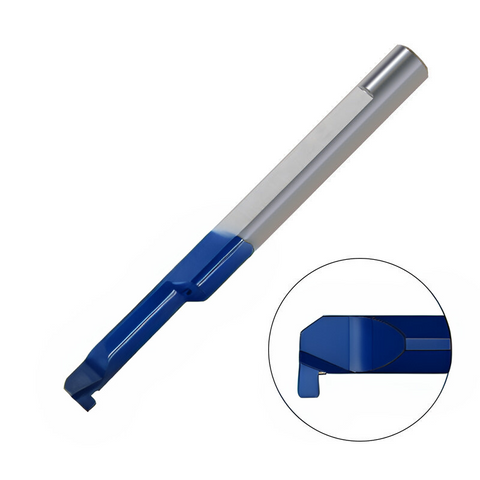

Carmex Carbide Tiny Tool - Grooving - MGL - BMK Grade - Minimum Diameter 6.1mm x 1.5mm Groove Width x 15mm Reach (Left Hand)
SKU:MGL6B1.5L15BMK
The Carmex Carbide Tiny Tool - Grooving (MGL) is a precision cutting tool designed for small grooving applications. Constructed from premium BMK-grade carbide, it delivers durable, repeatable gro...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Grooving (MGL) |
| Minimum Diameter | 6.1 |
| Groove Width (B) | 1.59 |
| Groove Depth (H) | 1.8 |
| Reach (L1) | 14 |
| L | 51 |
£27.55
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool - Grooving (MGL) is a precision cutting tool designed for small grooving applications. Constructed from premium BMK-grade carbide, it delivers durable, repeatable grooves on tiny parts with a left-hand cutting orientation, a minimum diameter of 6.1 mm, a groove width of 1.5 mm, and a 15 mm reach for accessing tight features.
- Premium-grade BMK carbide: Built from BMK-grade carbide to deliver long tool life and reliable wear resistance, ensuring consistent grooves across multiple jobs.
- Ultra-compact geometry for tiny grooves: Specifically engineered for small-diameter work—minimum diameter 6.1 mm and groove width 1.5 mm—with a 15 mm reach to access tight features without sacrificing rigidity.
- Left-hand cutting with broad machine compatibility: Designed for left-handed setups and compatible with a wide range of machines and tool holders, making it easy to integrate into existing workflows.
Designed to streamline small-grooving tasks, this tool helps you achieve clean, accurate grooves on delicate parts with fewer passes and less rework. The combination of carbide durability, precise geometry, and flexible machine compatibility translates to faster setup, fewer tool changes, and more consistent results across demanding micro-machining applications.
| Application | Grooving (MGL) |
| Minimum Diameter | 6.1 |
| Groove Width (B) | 1.59 |
| Groove Depth (H) | 1.8 |
| Reach (L1) | 14 |
| L | 51 |
| F | 2.8 |
| D | 6.0 |
| Grade | BMK |
| Holder | SIM****H6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Grooving - Grade BMK (MGR)
View full collection →You are viewing MGL6B1.5L15BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MGR2B0.5L10BMK | 2.1 | 0.5 | 0.5 | 10 | BXC | SIM****H4 | £27.55 | 5 days | |
| MGR3B0.5L10BMK | 2.1 | 0.5 | 0.5 | 10 | BMK | SIM****H3 | £26.37 | 5 days | |
| MGR3B0.7L10BMK | 3.1 | 0.5 | 0.5 | 10 | BMK | SIM****H3 | £25.61 | 5 days | |
| MGR4B0.5L10BMK | 3.1 | 0.5 | 0.6 | 10 | BMK | SIM****H3 | £26.37 | In Stock | |
| MGR4B0.5L15BMK | 4.1 | 0.5 | 0.5 | 15 | BMK | SIM****H4 | £28.04 | 5 days | |
| MGR4B0.79L15BMK | 4.1 | 0.5 | 0.5 | 15 | BMK | SIM****H4 | £28.04 | 5 days | |
| MGR4B0.79L22BMK | 4.1 | 0.79 | 0.9 | 22 | BMK | SIM****H4 | £29.42 | 5 days | |
| MGR4B0.7L10BMK | 4.1 | 0.79 | 0.9 | 10 | BMK | SIM****H4 | £26.37 | 5 days | |
| MGR4B1.0L10BMK | 4.1 | 0.7 | 0.6 | 10 | BMK | SIM****H4 | £26.49 | 5 days | |
| MGR4B1.0L15BMK | 4.1 | 1 | 1 | 15 | BMK | SIM****H4 | £28.04 | 5 days | |
| MGR4B1.0L22BMK | 4.1 | 1 | 1 | 22 | BMK | SIM****H4 | £29.42 | 5 days | |
| MGR4B1.5L10BMK | 4.1 | 1 | 1 | 10 | BMK | SIM****H4 | £26.49 | In Stock | |
| MGR4B1.5L15BMK | 4.1 | 1.5 | 1 | 15 | BMK | SIM****H4 | £28.04 | 5 days | |
| MGR4B1.5L22BMK | 4.1 | 1.5 | 1 | 22 | BMK | SIM****H4 | £29.42 | 5 days | |
| MGR5B0.79L15BMK | 4.1 | 1.5 | 1 | 15 | BMK | SIM****H4 | £26.91 | 5 days | |
| MGR5B0.79L22BMK | 5.1 | 0.79 | 1 | 22 | BMK | SIM****H5 | £28.59 | 5 days | |
| MGR5B1.0L15BMK | 5.1 | 0.79 | 1 | 15 | BMK | SIM****H5 | £26.91 | 5 days | |
| MGR5B1.0L22BMK | 5.1 | 1 | 1.2 | 15 | BMK | SIM****H5 | £28.59 | 5 days | |
| MGR5B1.19L15BMK | 5.1 | 1 | 1.2 | 15 | BMK | SIM****H5 | £26.91 | 5 days | |
| MGR5B1.19L22BMK | 5.1 | 1.19 | 1.2 | 22 | BMK | SIM****H5 | £28.59 | 5 days | |
| MGR5B1.59L15BMK | 5.1 | 1.19 | 1.2 | 15 | BMK | SIM****H5 | £26.91 | 5 days | |
| MGR5B1.59L22BMK | 5.1 | 1.59 | 1.2 | 22 | BMK | SIM****H5 | £28.59 | 5 days | |
| MGR5B1.5L15BMK | 5.1 | 1.59 | 1.2 | 15 | BMK | SIM****H5 | £26.91 | 5 days | |
| MGR5B1.5L22BMK | 5.1 | 1.5 | 1.2 | 22 | BMK | SIM****H5 | £28.59 | In Stock | |
| MGR5B2.0L15BMK | 5.1 | 1.5 | 1.2 | 15 | BMK | SIM****H5 | £26.91 | 5 days | |
| MGR5B2.0L22BMK | 5.1 | 2 | 1.2 | 22 | BMK | SIM****H5 | £28.59 | In Stock | |
| MGR6B0.79L17BMK | 5.1 | 2 | 1.2 | 17 | BMK | SIM****H5 | £30.26 | 5 days | |
| MGR6B0.79L23BMK | 6.1 | 0.79 | 1.8 | 23 | BMK | SIM****H6 | £32.45 | 5 days | |
| MGR6B1.0L15BMK | 6.1 | 0.79 | 1.8 | 15 | BMK | SIM****H6 | £27.55 | 5 days | |
| MGR6B1.0L17BMK | 6.1 | 1 | 1.4 | 17 | BMK | SIM****H6 | £30.26 | 5 days | |
| MGR6B1.0L22BMK | 6.1 | 1 | 1.8 | 22 | BMK | SIM****H6 | £29.47 | 5 days | |
| MGR6B1.19L17BMK | 6.1 | 1 | 1.4 | 17 | BMK | SIM****H6 | £30.26 | 5 days | |
| MGR6B1.19L23BMK | 6.1 | 1.19 | 1.8 | 23 | BMK | SIM****H6 | £32.45 | 5 days | |
| MGR6B1.59L17BMK | 6.1 | 1.19 | 1.8 | 17 | BMK | SIM****H6 | £30.26 | 5 days | |
| MGR6B1.59L23BMK | 6.1 | 1.59 | 1.8 | 23 | BMK | SIM****H6 | £32.45 | 5 days | |
| MGR6B1.5L15BMK | 6.1 | 1.59 | 1.8 | 15 | BMK | SIM****H6 | £27.55 | In Stock | |
| MGR6B1.5L17BMK | 6.1 | 1.5 | 1.4 | 17 | BMK | SIM****H6 | £30.26 | 5 days | |
| MGR6B1.5L22BMK | 6.1 | 1.5 | 1.8 | 22 | BMK | SIM****H6 | £29.47 | 5 days | |
| MGR6B1.5L23BMK | 6.1 | 1.5 | 1.4 | 23 | BMK | SIM****H6 | £32.45 | 5 days | |
| MGR6B2.0L15BMK | 6.1 | 1.5 | 1.8 | 15 | BMK | SIM****H6 | £27.55 | 5 days | |
| MGR6B2.0L17BMK | 6.1 | 2 | 1.4 | 17 | BMK | SIM****H6 | £30.26 | 5 days | |
| MGR6B2.0L22BMK | 6.1 | 2 | 1.8 | 22 | BMK | SIM****H6 | £29.47 | 5 days | |
| MGR6B2.0L23BMK | 6.1 | 2 | 1.4 | 23 | BMK | SIM****H6 | £32.45 | 5 days | |
| MGR7B1.0L15BMK | 6.1 | 2 | 1.8 | 15 | BMK | SIM****H6 | £32.40 | 5 days | |
| MGR7B1.0L22BMK | 7.1 | 1 | 2.5 | 22 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGR7B1.0L30BMK | 7.1 | 1 | 2.5 | 30 | BMK | SIM****H7 | £35.60 | 5 days | |
| MGR7B1.19L22BMK | 7.1 | 1 | 2.5 | 22 | BMK | SIM****H7 | £32.45 | In Stock | |
| MGR7B1.19L30BMK | 7.1 | 1.19 | 2.5 | 30 | BMK | SIM****H7 | £35.60 | 5 days | |
| MGR7B1.59L22BMK | 7.1 | 1.59 | 2.5 | 22 | BMK | SIM****H7 | £32.45 | 5 days | |
| MGR7B1.59L30BMK | 7.1 | 1.59 | 2.5 | 30 | BMK | SIM****H7 | £35.60 | 5 days | |
| MGR7B1.5L15BMK | 7.1 | 1.59 | 2.5 | 15 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGR7B1.5L22BMK | 7.1 | 1.5 | 2.5 | 22 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGR7B1.5L30BMK | 7.1 | 1.5 | 2.5 | 30 | BMK | SIM****H7 | £35.60 | 5 days | |
| MGR7B2.0L15BMK | 7.1 | 1.5 | 2.5 | 15 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGR7B2.0L22BMK | 7.1 | 2 | 2.5 | 22 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGR7B2.0L30BMK | 7.1 | 2 | 2.5 | 30 | BMK | SIM****H7 | £35.60 | 5 days | |
| MGR8B1.0L22BMK | 7.1 | 2 | 2.5 | 22 | BMK | SIM****H7 | £33.01 | In Stock | |
| MGR8B1.5L22BMK | 8.1 | 1 | 1.7 | 22 | BMK | SIM****H8 | £33.01 | 5 days | |
| MGR8B2.0L22BMK | 8.1 | 1.5 | 1.7 | 22 | BMK | SIM****H8 | £33.01 | 5 days | |
| MGR8B2.38L15BMK | 8.1 | 2 | 2.6 | 15 | BMK | SIM****H8 | £33.01 | 5 days | |
| MGR8B2.38L22BMK | 8.1 | 2.38 | 2.6 | 22 | BMK | SIM****H8 | £33.01 | 5 days | |
| MGL2B0.5L10BMK | 2.1 | 0.5 | 0.5 | 10 | BXC | SIM****H4 | £27.54 | 5 days | |
| MGL3B0.5L10BMK | 2.1 | 0.5 | 0.5 | 10 | BMK | SIM****H3 | £26.35 | 5 days | |
| MGL3B0.7L10BMK | 3.1 | 0.5 | 0.5 | 10 | BMK | SIM****H3 | £25.61 | 5 days | |
| MGL4B0.5L10BMK | 3.1 | 0.5 | 0.6 | 10 | BMK | SIM****H3 | £26.37 | 5 days | |
| MGL4B0.5L15BMK | 4.1 | 0.5 | 0.5 | 15 | BMK | SIM****H4 | £28.05 | 5 days | |
| MGL4B0.79L15BMK | 4.1 | 0.5 | 0.5 | 15 | BMK | SIM****H4 | £28.05 | 5 days | |
| MGL4B0.79L22BMK | 4.1 | 0.79 | 0.9 | 22 | BMK | SIM****H4 | £29.42 | 5 days | |
| MGL4B0.7L10BMK | 4.1 | 0.79 | 0.9 | 10 | BMK | SIM****H4 | £26.35 | 5 days | |
| MGL4B1.0L10BMK | 4.1 | 0.7 | 0.6 | 10 | BMK | SIM****H4 | £26.49 | 5 days | |
| MGL4B1.0L15BMK | 4.1 | 1 | 1 | 15 | BMK | SIM****H4 | £28.04 | 5 days | |
| MGL4B1.0L22BMK | 4.1 | 1 | 1 | 22 | BMK | SIM****H4 | £29.42 | 5 days | |
| MGL4B1.5L10BMK | 4.1 | 1 | 1 | 10 | BMK | SIM****H4 | £26.49 | 5 days | |
| MGL4B1.5L15BMK | 4.1 | 1.5 | 1 | 15 | BMK | SIM****H4 | £28.05 | 5 days | |
| MGL4B1.5L22BMK | 4.1 | 1.5 | 1 | 22 | BMK | SIM****H4 | £29.42 | 5 days | |
| MGL5B0.79L15BMK | 4.1 | 1.5 | 1 | 15 | BMK | SIM****H4 | £26.92 | 5 days | |
| MGL5B0.79L22BMK | 5.1 | 0.79 | 1 | 22 | BMK | SIM****H5 | £28.58 | 5 days | |
| MGL5B1.0L15BMK | 5.1 | 0.79 | 1 | 15 | BMK | SIM****H5 | £26.91 | 5 days | |
| MGL5B1.0L22BMK | 5.1 | 1 | 1.2 | 15 | BMK | SIM****H5 | £28.59 | 5 days | |
| MGL5B1.19L15BMK | 5.1 | 1 | 1.2 | 15 | BMK | SIM****H5 | £26.92 | 5 days | |
| MGL5B1.19L22BMK | 5.1 | 1.19 | 1.2 | 22 | BMK | SIM****H5 | £28.58 | 5 days | |
| MGL5B1.59L15BMK | 5.1 | 1.19 | 1.2 | 15 | BMK | SIM****H5 | £26.92 | 5 days | |
| MGL5B1.59L22BMK | 5.1 | 1.59 | 1.2 | 22 | BMK | SIM****H5 | £28.58 | 5 days | |
| MGL5B1.5L15BMK | 5.1 | 1.59 | 1.2 | 15 | BMK | SIM****H5 | £26.91 | 5 days | |
| MGL5B1.5L22BMK | 5.1 | 1.5 | 1.2 | 22 | BMK | SIM****H5 | £28.59 | 5 days | |
| MGL5B2.0L15BMK | 5.1 | 1.5 | 1.2 | 15 | BMK | SIM****H5 | £26.91 | 5 days | |
| MGL5B2.0L22BMK | 5.1 | 2 | 1.2 | 22 | BMK | SIM****H5 | £28.59 | 5 days | |
| MGL6B0.79L17BMK | 5.1 | 2 | 1.2 | 17 | BMK | SIM****H5 | £30.27 | 5 days | |
| MGL6B0.79L23BMK | 6.1 | 0.79 | 1.8 | 23 | BMK | SIM****H6 | £32.44 | 5 days | |
| MGL6B1.0L15BMK | 6.1 | 0.79 | 1.8 | 15 | BMK | SIM****H6 | £27.55 | 5 days | |
| MGL6B1.0L17BMK | 6.1 | 1 | 1.4 | 17 | BMK | SIM****H6 | £30.26 | 5 days | |
| MGL6B1.0L22BMK | 6.1 | 1 | 1.8 | 22 | BMK | SIM****H6 | £29.47 | 5 days | |
| MGL6B1.19L17BMK | 6.1 | 1 | 1.4 | 17 | BMK | SIM****H6 | £30.27 | 5 days | |
| MGL6B1.19L23BMK | 6.1 | 1.19 | 1.8 | 23 | BMK | SIM****H6 | £32.44 | 5 days | |
| MGL6B1.59L17BMK | 6.1 | 1.19 | 1.8 | 17 | BMK | SIM****H6 | £30.27 | 5 days | |
| MGL6B1.59L23BMK | 6.1 | 1.59 | 1.8 | 23 | BMK | SIM****H6 | £32.44 | 5 days | |
| MGL6B1.5L15BMK Viewing | 6.1 | 1.59 | 1.8 | 15 | BMK | SIM****H6 | £27.55 | 5 days | |
| MGL6B1.5L17BMK | 6.1 | 1.5 | 1.4 | 17 | BMK | SIM****H6 | £30.26 | 5 days | |
| MGL6B1.5L22BMK | 6.1 | 1.5 | 1.8 | 22 | BMK | SIM****H6 | £29.47 | 5 days | |
| MGL6B1.5L23BMK | 6.1 | 1.5 | 1.4 | 23 | BMK | SIM****H6 | £32.44 | 5 days | |
| MGL6B2.0L15BMK | 6.1 | 1.5 | 1.8 | 15 | BMK | SIM****H6 | £27.55 | 5 days | |
| MGL6B2.0L17BMK | 6.1 | 2 | 1.4 | 17 | BMK | SIM****H6 | £30.26 | 5 days | |
| MGL6B2.0L22BMK | 6.1 | 2 | 1.8 | 22 | BMK | SIM****H6 | £29.47 | 5 days | |
| MGL6B2.0L23BMK | 6.1 | 2 | 1.4 | 23 | BMK | SIM****H6 | £32.45 | 5 days | |
| MGL7B1.0L15BMK | 6.1 | 2 | 1.8 | 15 | BMK | SIM****H6 | £31.05 | 5 days | |
| MGL7B1.0L22BMK | 7.1 | 1 | 2.5 | 22 | BMK | SIM****H7 | £31.05 | 5 days | |
| MGL7B1.0L30BMK | 7.1 | 1 | 2.5 | 30 | BMK | SIM****H7 | £35.60 | 5 days | |
| MGL7B1.19L22BMK | 7.1 | 1 | 2.5 | 22 | BMK | SIM****H7 | £32.44 | 5 days | |
| MGL7B1.19L30BMK | 7.1 | 1.19 | 2.5 | 30 | BMK | SIM****H7 | £35.58 | 5 days | |
| MGL7B1.59L22BMK | 7.1 | 1.59 | 2.5 | 22 | BMK | SIM****H7 | £32.44 | 5 days | |
| MGL7B1.59L30BMK | 7.1 | 1.59 | 2.5 | 30 | BMK | SIM****H7 | £35.58 | 5 days | |
| MGL7B1.5L15BMK | 7.1 | 1.59 | 2.5 | 15 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGL7B1.5L22BMK | 7.1 | 1.5 | 2.5 | 22 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGL7B1.5L30BMK | 7.1 | 1.5 | 2.5 | 30 | BMK | SIM****H7 | £35.60 | 5 days | |
| MGL7B2.0L15BMK | 7.1 | 1.5 | 2.5 | 15 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGL7B2.0L22BMK | 7.1 | 2 | 2.5 | 22 | BMK | SIM****H7 | £32.40 | 5 days | |
| MGL7B2.0L30BMK | 7.1 | 2 | 2.5 | 30 | BMK | SIM****H7 | £35.60 | 5 days | |
| MGL8B1.0L22BMK | 7.1 | 2 | 2.5 | 22 | BMK | SIM****H7 | £33.01 | 5 days | |
| MGL8B1.5L22BMK | 8.1 | 1 | 1.7 | 22 | BMK | SIM****H8 | £33.01 | 5 days | |
| MGL8B2.0L22BMK | 8.1 | 1.5 | 1.7 | 22 | BMK | SIM****H8 | £33.01 | 5 days | |
| MGL8B2.38L15BMK | 8.1 | 2 | 2.6 | 15 | BMK | SIM****H8 | £33.01 | 5 days | |
| MGL8B2.38L22BMK | 8.1 | 2.38 | 2.6 | 22 | BMK | SIM****H8 | £33.01 | 5 days |
