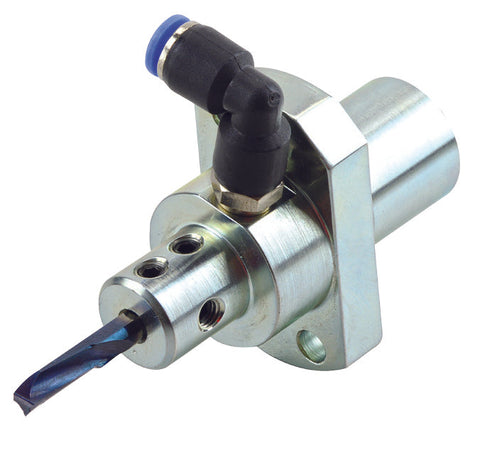

Carmex Tiny Tool Holder - Round Shank Holder For Swiss Machines to hold Carbide Small Boring Tool - 22mm Shank x 6mm Bore
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Carmex Carbide Tiny Tool - Boring Bar - MTR - BXC Grade - 6.1mm Minimum Diameter x 22mm Reach x R0.2
Carmex Carbide Tiny Tool - Boring Bar - MTR - BXC Grade - 6.1mm Minimum Diameter x 15mm Reach x R0.2
Carmex Carbide Tiny Tool - Boring Bar - MTR - BXC Grade - 6.1mm Minimum Diameter x 30mm Reach x R0.2
Description
External turning holder from the Tiny Tools family, engineered for back operations on Swiss-type CNC lathes with a sliding head. It securely grips Carbide Small Boring Tools with a 22 mm round shank and a 6 mm bore for precise cutting performance.
- Shank size: 22 mm round shank designed for stable mounting on Swiss machines.
- Bore size: 6 mm bore to accommodate Carbide Small Boring Tools.
- Back-operation compatibility: Specifically designed for external turning on Swiss-type CNC lathes with a sliding head.
- Two-direction gripping: Tiny bar can be gripped in two directions, enabling turning on both X and Y axes.
- Internal coolant: Delivers coolant directly to the cutting edge for better chip control and tool life.
- Coated for abrasion resistance: Coatings provide enhanced wear resistance in demanding applications.
- Bar compatibility: Suitable for bars with diameters from 3.0 mm to 10.0 mm.
This holder supports efficient small-diameter machining by offering dual-axis turning capability, integrated cooling, and a durable build that stands up to routine Swiss-style back operations. Its 22 mm shank and 6 mm bore are purpose-built for reliable integration with carbide tooling in compact Swiss setups.
Part Numbers
- Protool Part Number
- SIM22SH6
- Brand
- Carmex
- Category
- Tiny Tool Holders
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Tiny Tool Holder - Round Shank Holder For Swiss Machines to hold Carbide Small Boring Tool
View full collection →You are viewing SIM22SH6. Click any other SKU to view its full details.
| Product SKU | Inside Diameter | Outside Diameter | d | L | L1 | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| SIM22SH3 | 3 | 22 | 16 | 40 | 18 | £96.54 | 5 days | |
| SIM22SH3-L | 3 | 22 | 16 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH4 | 4 | 22 | 16 | 40 | 18 | £96.54 | 5 days | |
| SIM22SH4-L | 4 | 22 | 16 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH5 | 5 | 22 | 16 | 40 | 18 | £96.54 | 5 days | |
| SIM22SH5-L | 5 | 22 | 16 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH6 Viewing | 6 | 22 | 16 | 40 | 18 | £96.54 | 5 days | |
| SIM22SH6-L | 6 | 22 | 16 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH8 | 8 | 22 | 20 | 40 | 18 | £96.54 | In Stock | |
| SIM22SH8-L | 8 | 22 | 20 | 50 | 28 | £111.00 | 5 days | |
| SIM22SH10 | 10 | 22 | 20 | 40 | 18 | £96.54 | In Stock |
