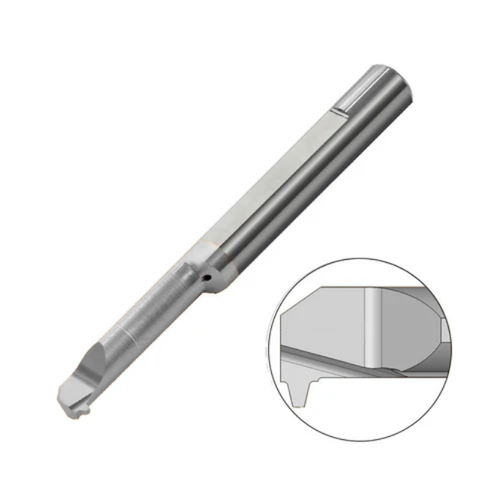

Carmex Carbide Tiny Tool - Threading - MIR - ACME - K20 Grade - 4.6mm Minimum Diameter x 15mm Reach
| Application | Threading (MIR) |
| Thread Form | ACME |
| Pitch or Pitch Range | 16 |
| Minimum Diameter | 4.6 |
Learn more about Klarna
Compatible holders
The ones our customers buy most.
Description
The Carmex Carbide Tiny Tool - Small Threading ACME Tool (MIR) is a precision cutting tool designed for threading on tiny parts. With a 4.6 mm minimum diameter and a 15 mm reach, it excels in tight spaces where smaller components demand accurate thread forms.
Built around an ACME thread design, this tool is ideal for creating trapezoidal threads with high accuracy and repeatable results. Crafted from premium K20-grade carbide, it offers exceptional hardness, strength, and wear resistance to help extend tool life. Its compact size and robust construction ensure reliable performance across a wide range of machines and systems, making it a versatile choice for both hobbyists and professionals.
- Ultra-compact threading capability: Designed for tiny parts, the 4.6 mm minimum diameter and 15 mm reach let you thread in confined spaces without sacrificing precision.
- ACME thread design for trapezoidal precision: Specifically engineered to cut accurate trapezoidal ACME threads with consistent profiles and tight tolerances.
- K20-grade carbide for durability and wear resistance: Premium carbide delivers long tool life, strong edge retention, and reduced downtime on demanding jobs.
This tool helps streamline your threading tasks by delivering reliable, repeatable results across diverse machines, reducing setup time and enabling efficient production or prototyping of small components. Its combination of precise geometry and durable construction supports higher quality threads and improved overall workflow.
Part Numbers
- Protool Part Number
- MIR4L1516ACMEK20
- Brand
- Carmex
- Category
- Tiny Tool Inserts
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Small Threading ACME Tool (MIR)
View full collection →You are viewing MIR4L1516ACMEK20. Click any other SKU to view its full details.
| Product SKU | Pitch or Pitch Range | Minimum Diameter | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MIR10L358ACMEBMK | 8 | 12.5 | 35 | BMK | SIM****H10 | £51.28 | 5 days | |
| MIR10L358ACMEBXC | 8 | 12.5 | 35 | BXC | SIM****H10 | £46.58 | 5 days | |
| MIR10L456ACMEBXC | 6 | 14.6 | 45 | BXC | SIM****H10 | £51.28 | In Stock | |
| MIR10L525ACMEBMK | 5 | 20 | 52 | BMK | SIM****H10 | £62.00 | 5 days | |
| MIR10L525ACMEBXC | 5 | 20 | 52 | BXC | SIM****H10 | £56.38 | 5 days | |
| MIR4L1516ACMEBMK | 16 | 4.6 | 15 | BMK | SIM****H4 | £30.13 | 5 days | |
| MIR4L1516ACMEBXC | 16 | 4.6 | 15 | BXC | SIM****H4 | £27.35 | In Stock | |
| MIR6L2014ACMEBMK | 14 | 6 | 20 | BMK | SIM****H6 | £32.83 | 5 days | |
| MIR6L2014ACMEBXC | 14 | 6 | 20 | BXC | SIM****H6 | £29.85 | In Stock | |
| MIR7L2212ACMEBMK | 12 | 7.2 | 22 | BMK | SIM****H7 | £38.33 | 5 days | |
| MIR7L2212ACMEBXC | 12 | 7.2 | 22 | BXC | SIM****H7 | £34.85 | In Stock | |
| MIR8L3010ACMEBMK | 10 | 10 | 30 | BMK | SIM****H8 | £36.48 | 5 days | |
| MIR8L3010ACMEBXC | 10 | 10 | 30 | BXC | SIM****H8 | £43.95 | 5 days | |
| MIR10L525ACMEK20 | 5 | 20 | 52 | K20 | SIM****H10 | £45.28 | 5 days | |
| MIR10L358ACMEK20 | 8 | 12.5 | 35 | K20 | SIM****H10 | £37.40 | 5 days | |
| MIR6L2014ACMEK20 | 14 | 6 | 20 | K20 | SIM****H6 | £28.40 | 5 days | |
| MIR4L1516ACMEK20 Viewing | 16 | 4.6 | 15 | K20 | SIM****H4 | £21.98 | 5 days | |
| MIR7L2212ACMEK20 | 12 | 7.2 | 22 | K20 | SIM****H7 | £27.98 | 5 days | |
| MIR8L3010ACMEK20 | 10 | 10 | 30 | K20 | SIM****H8 | £41.80 | 5 days | |
| MIR8L3010ACMETNX | 10 | 10 | 30 | TNX | SIM****H8 | £44.58 | 5 days | |
| MIL10L358ACMEBMK | 8 | 12.5 | 35 | BMK | SIM****H10 | £43.35 | 5 days | |
| MIL10L358ACMEBXC | 8 | 12.5 | 35 | BXC | SIM****H10 | £46.58 | 5 days | |
| MIL10L358ACMEK20 | 8 | 12.5 | 35 | K20 | SIM****H10 | £44.25 | 5 days | |
| MIL10L456ACMEBXC | 6 | 14.6 | 45 | BXC | SIM****H10 | £51.28 | 5 days | |
| MIL10L525ACMEBMK | 5 | 20 | 52 | BMK | SIM****H10 | £52.40 | 5 days | |
| MIL10L525ACMEBXC | 5 | 20 | 52 | BXC | SIM****H10 | £56.38 | 5 days | |
| MIL10L525ACMEK20 | 5 | 20 | 52 | K20 | SIM****H10 | £45.28 | 5 days | |
| MIL4L1516ACMEBMK | 16 | 4.6 | 15 | BMK | SIM****H4 | £25.48 | 5 days | |
| MIL4L1516ACMEBXC | 16 | 4.6 | 15 | BXC | SIM****H4 | £27.35 | 5 days | |
| MIL4L1516ACMEK20 | 16 | 4.6 | 15 | K20 | SIM****H4 | £21.98 | 5 days | |
| MIL6L2014ACMEBMK | 14 | 6 | 20 | BMK | SIM****H6 | £27.75 | 5 days | |
| MIL6L2014ACMEBXC | 14 | 6 | 20 | BXC | SIM****H6 | £29.85 | 5 days | |
| MIL6L2014ACMEK20 | 14 | 6 | 20 | K20 | SIM****H6 | £23.95 | 5 days | |
| MIL7L2212ACMEBMK | 12 | 7.2 | 22 | BMK | SIM****H7 | £32.43 | 5 days | |
| MIL7L2212ACMEBXC | 12 | 7.2 | 22 | BXC | SIM****H7 | £34.85 | 5 days | |
| MIL7L2212ACMEK20 | 12 | 7.2 | 22 | K20 | SIM****H7 | £27.98 | 5 days | |
| MIL8L3010ACMEBMK | 10 | 10 | 30 | BMK | SIM****H8 | £30.83 | 5 days | |
| MIL8L3010ACMEBXC | 10 | 10 | 30 | BXC | SIM****H8 | £43.95 | 5 days | |
| MIL8L3010ACMEK20 | 10 | 10 | 30 | K20 | SIM****H8 | £35.30 | 5 days | |
| MIL8L3010ACMETNX | 10 | 10 | 30 | TNX | SIM****H8 | £44.58 | 5 days |
