Carmex Carbide Tiny Tool - Boring & Profiling - MPR - BMK Grade - 1mm Minimum Diameter x 8mm Reach x R0.05
SKU:MPR1R0.05L8BMK

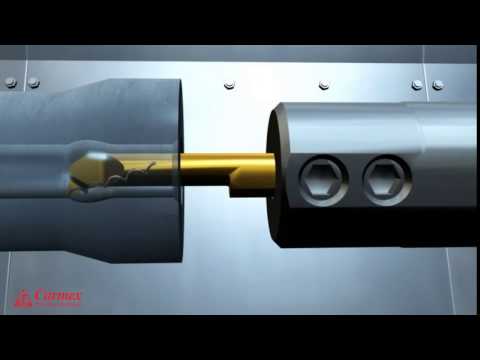

Meet the Carmex Carbide Tiny Tool for Boring & Profiling (MPR). This precision carbide cutter is purpose-built for small profiling and boring tasks, delivering accurate shapes in tight spaces...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 1 |
| Reach (L1) | 8 |
| Radius (R) | 0.05 |
| Profile Max Depth (H) | 0.2 |
| Grade | BMK |
£28.04
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Meet the Carmex Carbide Tiny Tool for Boring & Profiling (MPR). This precision carbide cutter is purpose-built for small profiling and boring tasks, delivering accurate shapes in tight spaces. With a 1 mm minimum diameter, 8 mm reach, and a refined R0.05 radius, it excels at intricate profiles and shallow bores on small parts. Constructed from BMK-grade carbide, it offers exceptional edge retention, wear resistance, and long tool life in demanding shop environments.
- Ultra-compact geometry for tight access: The 1 mm diameter and 8 mm reach let you profile and bore in confined cavities and pockets, reducing the need for multiple tools and simplifying fixturing.
- BMK-grade carbide for durability: Premium carbide delivers excellent hardness and wear resistance, helping edges stay sharp longer and lowering tool-change frequency.
- Fine R0.05 radius for clean, accurate profiles: The small corner radius supports precise geometries with smooth edges, delivering repeatable results and better surface finish on delicate parts.
Using this tiny tool helps you achieve precise, repeatable results in a single setup, improving part quality and workflow. Its durability reduces downtime and replacement costs, while the compact size simplifies tool paths and fixturing for small-part production or prototypes.

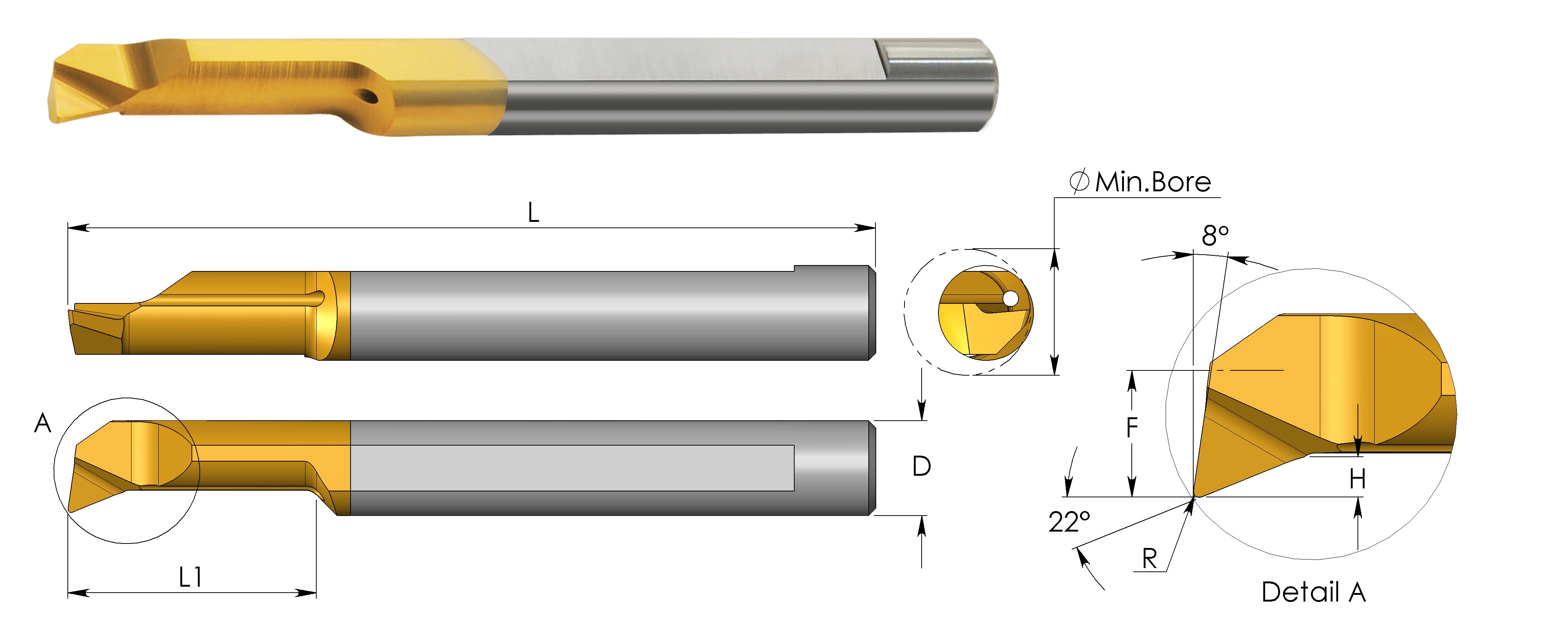

| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 1 |
| Reach (L1) | 8 |
| Radius (R) | 0.05 |
| Profile Max Depth (H) | 0.2 |
| Grade | BMK |
| Holder | SIM****H3 |
| L | 39 |
| F | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade BMK (MPR)
View full collection →You are viewing MPR1R0.05L8BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MPR1.2R0.1L5BMK | 1.2 | 5 | 0.1 | 0.3 | BMK | SIM****H3 | £24.18 | In Stock | |
| MPR1.2R0.1L9BMK | 1.2 | 9 | 0.1 | 0.3 | BMK | SIM****H3 | £28.04 | 5 days | |
| MPR1.5R0.05L10BMK | 1.5 | 10 | 0.05 | 0.3 | BMK | SIM****H3 | £28.04 | 5 days | |
| MPR1.5R0.1L10BMK | 1.5 | 10 | 0.1 | 0.3 | BMK | SIM****H3 | £25.98 | 5 days | |
| MPR1.5R0.1L6BMK | 1.5 | 6 | 0.1 | 0.3 | BMK | SIM****H3 | £25.49 | In Stock | |
| MPR1R0.05L4BMK | 1 | 4 | 0.05 | 0.2 | BMK | SIM****H3 | £25.49 | 5 days | |
| MPR1R0.05L8BMK Viewing | 1 | 8 | 0.05 | 0.2 | BMK | SIM****H3 | £28.04 | 5 days | |
| MPR2.5R0.1L10BMK | 2.5 | 10 | 0.1 | 0.6 | BMK | SIM****H4 | £24.23 | 5 days | |
| MPR2.5R0.1L15BMK | 2.5 | 15 | 0.1 | 0.6 | BMK | SIM****H4 | £24.23 | 5 days | |
| MPR2R0.05L10BMK | 2.1 | 10 | 0.05 | 0.5 | BMK | SIM****H3 | £24.28 | 5 days | |
| MPR2R0.15L10BMK | 2.1 | 10 | 0.15 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR2R0.15L15BMK | 2.1 | 15 | 0.15 | 0.5 | BMK | SIM****H3 | £24.23 | In Stock | |
| MPR2R0.15L5BMK | 2.1 | 5 | 0.15 | 0.5 | BMK | SIM****H3 | £23.17 | In Stock | |
| MPR2R0.1L10BMK | 2.1 | 10 | 0.1 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.05L10BMK | 3.1 | 10 | 0.05 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.05L15BMK | 3.1 | 15 | 0.05 | 0.7 | BMK | SIM****H3 | £25.17 | 5 days | |
| MPR3R0.1L10BMK | 3.1 | 10 | 0.1 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.1L15BMK | 3.1 | 15 | 0.1 | 0.7 | BMK | SIM****H3 | £25.17 | In Stock | |
| MPR3R0.1L22BMK | 3.1 | 22 | 0.1 | 0.7 | BMK | SIM****H3 | £26.49 | In Stock | |
| MPR3R0.2L10BMK | 3.1 | 10 | 0.2 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.2L15BMK | 3.1 | 15 | 0.2 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.2L22BMK | 3.1 | 22 | 0.2 | 0.7 | BMK | SIM****H3 | £26.49 | 5 days | |
| MPR4R0.1L10BMK | 4.1 | 10 | 0.1 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPR4R0.1L15BMK | 4.1 | 15 | 0.1 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPR4R0.1L22BMK | 4.1 | 22 | 0.1 | 0.8 | BMK | SIM****H4 | £26.89 | 5 days | |
| MPR4R0.2L10BMK | 4.1 | 10 | 0.2 | 0.8 | BMK | SIM****H4 | £23.71 | In Stock | |
| MPR4R0.2L15BMK | 4.1 | 15 | 0.2 | 0.8 | BMK | SIM****H4 | £25.61 | In Stock | |
| MPR4R0.2L22BMK | 4.1 | 22 | 0.2 | 0.8 | BMK | SIM****H4 | £26.89 | In Stock | |
| MPR4R0.2L30BMK | 4.1 | 30 | 0.2 | 0.8 | BMK | SIM****H4 | £29.84 | 5 days | |
| MPR5R0.1L22BMK | 5.1 | 22 | 0.1 | 1.2 | BMK | SIM****H5 | £29.89 | In Stock | |
| MPR5R0.1L30BMK | 5.1 | 30 | 0.1 | 1.2 | BMK | SIM****H5 | £34.29 | In Stock | |
| MPR5R0.2L10BMK | 5.1 | 10 | 0.2 | 1.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MPR5R0.2L15BMK | 5.1 | 15 | 0.2 | 1.2 | BMK | SIM****H5 | £22.61 | 5 days | |
| MPR5R0.2L22BMK | 5.1 | 22 | 0.2 | 1.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MPR5R0.2L30BMK | 5.1 | 30 | 0.2 | 1.2 | BMK | SIM****H5 | £34.29 | 5 days | |
| MPR5R0.2L40BMK | 5.1 | 40 | 0.2 | 0.9 | BMK | SIM****H5 | £37.71 | In Stock | |
| MPR6R0.2L15BMK | 6.1 | 15 | 0.2 | 1.4 | BMK | SIM****H6 | £26.91 | In Stock | |
| MPR6R0.2L22BMK | 6.1 | 22 | 0.2 | 1.4 | BMK | SIM****H6 | £30.48 | 5 days | |
| MPR6R0.2L30BMK | 6.1 | 30 | 0.2 | 1.4 | BMK | SIM****H6 | £35.08 | In Stock | |
| MPR6R0.2L40BMK | 6.1 | 40 | 0.2 | 1 | BMK | SIM****H6 | £38.52 | 5 days | |
| MPR7R0.2L22BMK | 7.1 | 22 | 0.2 | 1.5 | BMK | SIM****H7 | £33.53 | In Stock | |
| MPR7R0.2L30BMK | 7.1 | 30 | 0.2 | 1.5 | BMK | SIM****H7 | £37.02 | In Stock | |
| MPR7R0.2L35BMK | 7.1 | 35 | 0.2 | 1.5 | BMK | SIM****H7 | £38.87 | In Stock | |
| MPR8R0.2L15BMK | 8.1 | 15 | 0.2 | 1.6 | BMK | SIM****H8 | £32.40 | 5 days | |
| MPR8R0.2L22BMK | 8.1 | 22 | 0.2 | 1.6 | BMK | SIM****H8 | £36.58 | In Stock | |
| MPR8R0.2L35BMK | 8.1 | 35 | 0.2 | 1.6 | BMK | SIM****H8 | £40.05 | 5 days | |
| MPR10R0.2L35BMK | 10.1 | 35 | 0.2 | 2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MPL1.2R0.1L5BMK | 1.2 | 5 | 0.1 | 0.3 | BMK | SIM****H3 | £24.19 | 5 days | |
| MPL1.2R0.1L9BMK | 1.2 | 9 | 0.1 | 0.3 | BMK | SIM****H3 | £28.05 | 5 days | |
| MPL1.5R0.05L10BMK | 1.5 | 10 | 0.05 | 0.3 | BMK | SIM****H3 | £28.05 | 5 days | |
| MPL1.5R0.1L10BMK | 1.5 | 10 | 0.1 | 0.3 | BMK | SIM****H3 | £25.98 | 5 days | |
| MPL1.5R0.1L6BMK | 1.5 | 6 | 0.1 | 0.3 | BMK | SIM****H3 | £25.49 | 5 days | |
| MPL10R0.2L35BMK | 10.1 | 35 | 0.2 | 2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MPL1R0.05L4BMK | 1 | 4 | 0.05 | 0.2 | BMK | SIM****H3 | £25.49 | 5 days | |
| MPL1R0.05L8BMK | 1 | 8 | 0.05 | 0.2 | BMK | SIM****H3 | £28.04 | 5 days | |
| MPL2.5R0.1L10BMK | 2.5 | 10 | 0.1 | 0.6 | BMK | SIM****H3 | £24.25 | 5 days | |
| MPL2.5R0.1L15BMK | 2.5 | 15 | 0.1 | 0.6 | BMK | SIM****H3 | £24.25 | 5 days | |
| MPL2R0.05L10BMK | 2.1 | 10 | 0.05 | 0.5 | BMK | SIM****H3 | £24.28 | 5 days | |
| MPL2R0.15L10BMK | 2.1 | 10 | 0.15 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL2R0.15L15BMK | 2.1 | 15 | 0.15 | 0.5 | BMK | SIM****H3 | £24.23 | 5 days | |
| MPL2R0.15L5BMK | 2.1 | 5 | 0.15 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL2R0.1L10BMK | 2.1 | 10 | 0.1 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL3R0.05L10BMK | 3.1 | 10 | 0.05 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL3R0.05L15BMK | 3.1 | 15 | 0.05 | 0.7 | BMK | SIM****H3 | £25.17 | 5 days | |
| MPL3R0.1L10BMK | 3.1 | 10 | 0.1 | 0.7 | BMK | SIM****H3 | £19.98 | 5 days | |
| MPL3R0.1L15BMK | 3.1 | 15 | 0.1 | 0.7 | BMK | SIM****H3 | £25.17 | 5 days | |
| MPL3R0.1L22BMK | 3.1 | 22 | 0.1 | 0.7 | BMK | SIM****H3 | £26.49 | 5 days | |
| MPL3R0.2L10BMK | 3.1 | 10 | 0.2 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL3R0.2L15BMK | 3.1 | 15 | 0.2 | 0.7 | BMK | SIM****H3 | £25.17 | 5 days | |
| MPL3R0.2L22BMK | 3.1 | 22 | 0.2 | 0.7 | BMK | SIM****H3 | £26.49 | 5 days | |
| MPL4R0.1L10BMK | 4.1 | 10 | 0.1 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPL4R0.1L15BMK | 4.1 | 15 | 0.1 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPL4R0.1L22BMK | 4.1 | 22 | 0.1 | 0.8 | BMK | SIM****H4 | £26.89 | 5 days | |
| MPL4R0.2L10BMK | 4.1 | 10 | 0.2 | 0.8 | BMK | SIM****H4 | £23.71 | 5 days | |
| MPL4R0.2L15BMK | 4.1 | 15 | 0.2 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPL4R0.2L22BMK | 4.1 | 22 | 0.2 | 0.8 | BMK | SIM****H4 | £26.89 | 5 days | |
| MPL4R0.2L30BMK | 4.1 | 30 | 0.2 | 0.8 | BMK | SIM****H4 | £29.83 | 5 days | |
| MPL5R0.1L22BMK | 5.1 | 22 | 0.1 | 1.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MPL5R0.1L30BMK | 5.1 | 30 | 0.1 | 1.2 | BMK | SIM****H5 | £34.29 | 5 days | |
| MPL5R0.2L10BMK | 5.1 | 10 | 0.2 | 1.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MPL5R0.2L15BMK | 5.1 | 15 | 0.2 | 1.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MPL5R0.2L22BMK | 5.1 | 22 | 0.2 | 1.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MPL5R0.2L30BMK | 5.1 | 30 | 0.2 | 1.2 | BMK | SIM****H5 | £34.29 | 5 days | |
| MPL5R0.2L40BMK | 5.1 | 40 | 0.2 | 0.9 | BMK | SIM****H5 | £37.71 | 5 days | |
| MPL6R0.2L15BMK | 6.1 | 15 | 0.2 | 1.4 | BMK | SIM****H6 | £26.91 | 5 days | |
| MPL6R0.2L22BMK | 6.1 | 22 | 0.2 | 1.4 | BMK | SIM****H6 | £30.48 | 5 days | |
| MPL6R0.2L30BMK | 6.1 | 30 | 0.2 | 1.4 | BMK | SIM****H6 | £35.08 | 5 days | |
| MPL6R0.2L40BMK | 6.1 | 40 | 0.2 | 1 | BMK | SIM****H6 | £38.52 | 5 days | |
| MPL7R0.2L22BMK | 7.1 | 22 | 0.2 | 1.5 | BMK | SIM****H7 | £33.53 | 5 days | |
| MPL7R0.2L30BMK | 7.1 | 30 | 0.2 | 1.5 | BMK | SIM****H7 | £37.02 | 5 days | |
| MPL7R0.2L35BMK | 7.1 | 35 | 0.2 | 1.5 | BMK | SIM****H7 | £38.87 | 5 days | |
| MPL8R0.2L15BMK | 8.1 | 15 | 0.2 | 1.6 | BMK | SIM****H8 | £32.40 | 5 days | |
| MPL8R0.2L22BMK | 8.1 | 22 | 0.2 | 1.6 | BMK | SIM****H8 | £36.58 | 5 days | |
| MPL8R0.2L35BMK | 8.1 | 35 | 0.2 | 1.6 | BMK | SIM****H8 | £40.05 | 5 days |
