Carmex Carbide Tiny Tool - Boring & Profiling - MPR - BMK Grade - 5.1mm Minimum Diameter x 40mm Reach x R0.2
SKU:MPR5R0.2L40BMK

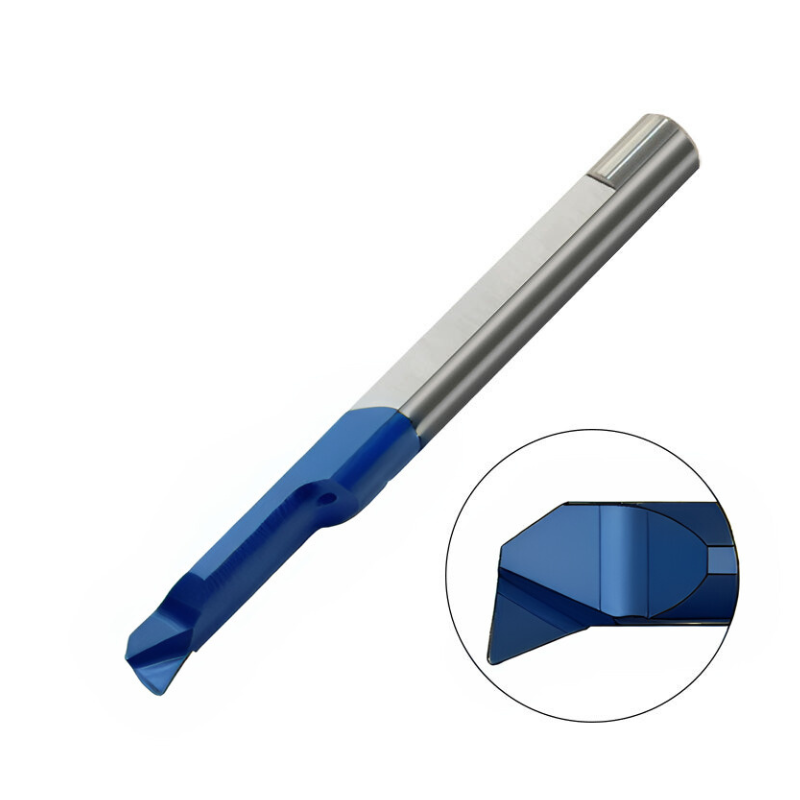

The Carmex Carbide Tiny Tools - Boring & Profiling - MPR is a precision cutting tool designed for small profiling and boring tasks. Its specialized design provides accurate, controlled shaping...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data

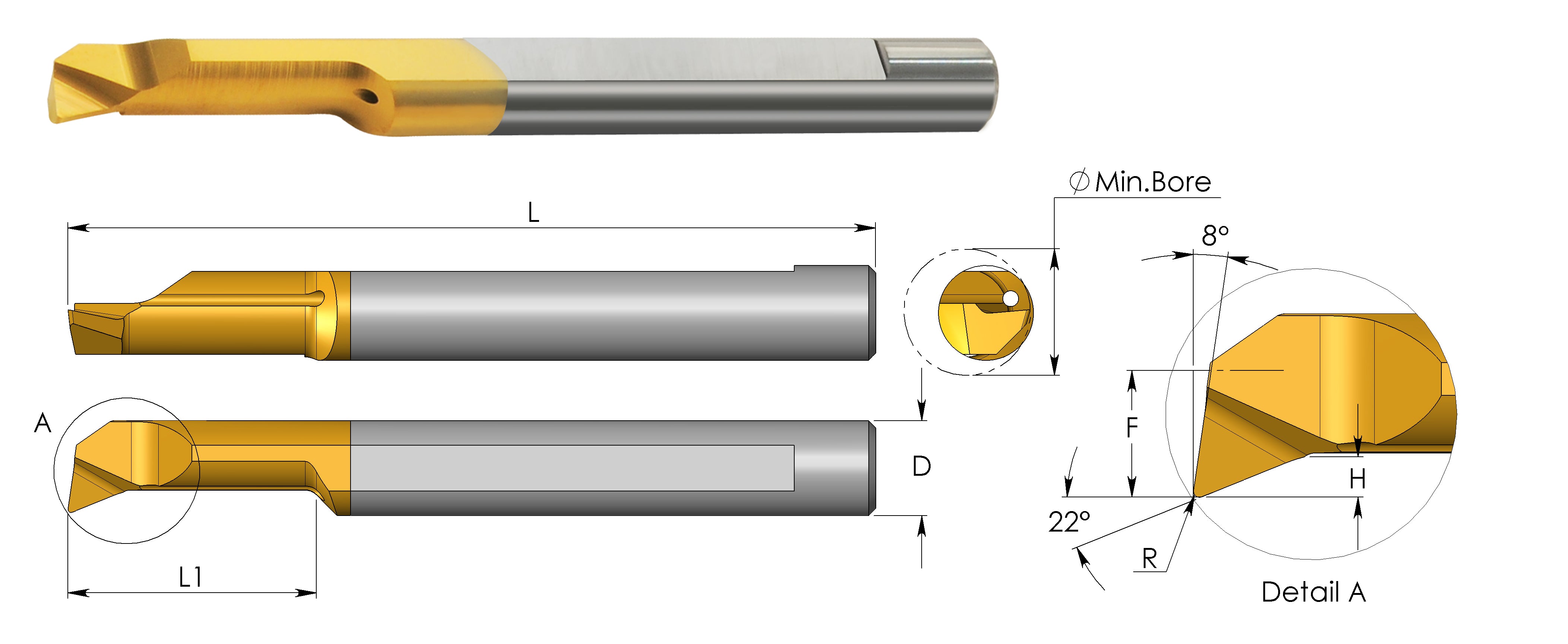

| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 5.1 |
| Reach (L1) | 40 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 0.9 |
| Grade | BMK |
£37.71
Prices shown ex. VAT
In Stock— only 1 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tools - Boring & Profiling - MPR is a precision cutting tool designed for small profiling and boring tasks. Its specialized design provides accurate, controlled shaping of intricate features in tiny parts, making it ideal for machinists, engineers, and hobbyists working in tight spaces.
Crafted from premium-grade carbide and finished for BMK-grade performance, this tool combines durability with repeatable precision. It features a 5.1 mm minimum diameter, 40 mm reach, and a 0.2 mm nose radius (R0.2), enabling clean, defined profiles in compact components with confidence.
- Small-profile precision for tight spaces: The 5.1 mm minimum diameter and 40 mm reach let you profile and bore intricate shapes in compact parts with clean edges.
- Durable premium carbide (BMK Grade): Built for wear resistance and long tool life, it maintains sharpness through high-speed profiling and boring for dependable performance.
- Defined profiling with R0.2 nose: The 0.2 mm nose radius delivers smooth finishes and accurate, repeatable corner profiles on small components.
Together, these features help you tackle small-feature profiling and boring with confidence, improving workflow by reducing rework and setup time while delivering consistent, high-precision results across parts and batches.
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 5.1 |
| Reach (L1) | 40 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 0.9 |
| Grade | BMK |
| Holder | SIM****H5 |
| L | 76 |
| F | 2.1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade BMK (MPR)
View full collection →You are viewing MPR5R0.2L40BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MPR1.2R0.1L5BMK | 1.2 | 5 | 0.1 | 0.3 | BMK | SIM****H3 | £24.18 | In Stock | |
| MPR1.2R0.1L9BMK | 1.2 | 9 | 0.1 | 0.3 | BMK | SIM****H3 | £28.04 | 5 days | |
| MPR1.5R0.05L10BMK | 1.5 | 10 | 0.05 | 0.3 | BMK | SIM****H3 | £28.04 | 5 days | |
| MPR1.5R0.1L10BMK | 1.5 | 10 | 0.1 | 0.3 | BMK | SIM****H3 | £25.98 | 5 days | |
| MPR1.5R0.1L6BMK | 1.5 | 6 | 0.1 | 0.3 | BMK | SIM****H3 | £25.49 | In Stock | |
| MPR1R0.05L4BMK | 1 | 4 | 0.05 | 0.2 | BMK | SIM****H3 | £25.49 | 5 days | |
| MPR1R0.05L8BMK | 1 | 8 | 0.05 | 0.2 | BMK | SIM****H3 | £28.04 | 5 days | |
| MPR2.5R0.1L10BMK | 2.5 | 10 | 0.1 | 0.6 | BMK | SIM****H4 | £24.23 | 5 days | |
| MPR2.5R0.1L15BMK | 2.5 | 15 | 0.1 | 0.6 | BMK | SIM****H4 | £24.23 | 5 days | |
| MPR2R0.05L10BMK | 2.1 | 10 | 0.05 | 0.5 | BMK | SIM****H3 | £24.28 | 5 days | |
| MPR2R0.15L10BMK | 2.1 | 10 | 0.15 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR2R0.15L15BMK | 2.1 | 15 | 0.15 | 0.5 | BMK | SIM****H3 | £24.23 | In Stock | |
| MPR2R0.15L5BMK | 2.1 | 5 | 0.15 | 0.5 | BMK | SIM****H3 | £23.17 | In Stock | |
| MPR2R0.1L10BMK | 2.1 | 10 | 0.1 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.05L10BMK | 3.1 | 10 | 0.05 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.05L15BMK | 3.1 | 15 | 0.05 | 0.7 | BMK | SIM****H3 | £25.17 | 5 days | |
| MPR3R0.1L10BMK | 3.1 | 10 | 0.1 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.1L15BMK | 3.1 | 15 | 0.1 | 0.7 | BMK | SIM****H3 | £25.17 | In Stock | |
| MPR3R0.1L22BMK | 3.1 | 22 | 0.1 | 0.7 | BMK | SIM****H3 | £26.49 | In Stock | |
| MPR3R0.2L10BMK | 3.1 | 10 | 0.2 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.2L15BMK | 3.1 | 15 | 0.2 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPR3R0.2L22BMK | 3.1 | 22 | 0.2 | 0.7 | BMK | SIM****H3 | £26.49 | 5 days | |
| MPR4R0.1L10BMK | 4.1 | 10 | 0.1 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPR4R0.1L15BMK | 4.1 | 15 | 0.1 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPR4R0.1L22BMK | 4.1 | 22 | 0.1 | 0.8 | BMK | SIM****H4 | £26.89 | 5 days | |
| MPR4R0.2L10BMK | 4.1 | 10 | 0.2 | 0.8 | BMK | SIM****H4 | £23.71 | In Stock | |
| MPR4R0.2L15BMK | 4.1 | 15 | 0.2 | 0.8 | BMK | SIM****H4 | £25.61 | In Stock | |
| MPR4R0.2L22BMK | 4.1 | 22 | 0.2 | 0.8 | BMK | SIM****H4 | £26.89 | In Stock | |
| MPR4R0.2L30BMK | 4.1 | 30 | 0.2 | 0.8 | BMK | SIM****H4 | £29.84 | 5 days | |
| MPR5R0.1L22BMK | 5.1 | 22 | 0.1 | 1.2 | BMK | SIM****H5 | £29.89 | In Stock | |
| MPR5R0.1L30BMK | 5.1 | 30 | 0.1 | 1.2 | BMK | SIM****H5 | £34.29 | In Stock | |
| MPR5R0.2L10BMK | 5.1 | 10 | 0.2 | 1.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MPR5R0.2L15BMK | 5.1 | 15 | 0.2 | 1.2 | BMK | SIM****H5 | £22.61 | 5 days | |
| MPR5R0.2L22BMK | 5.1 | 22 | 0.2 | 1.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MPR5R0.2L30BMK | 5.1 | 30 | 0.2 | 1.2 | BMK | SIM****H5 | £34.29 | 5 days | |
| MPR5R0.2L40BMK Viewing | 5.1 | 40 | 0.2 | 0.9 | BMK | SIM****H5 | £37.71 | In Stock | |
| MPR6R0.2L15BMK | 6.1 | 15 | 0.2 | 1.4 | BMK | SIM****H6 | £26.91 | In Stock | |
| MPR6R0.2L22BMK | 6.1 | 22 | 0.2 | 1.4 | BMK | SIM****H6 | £30.48 | 5 days | |
| MPR6R0.2L30BMK | 6.1 | 30 | 0.2 | 1.4 | BMK | SIM****H6 | £35.08 | In Stock | |
| MPR6R0.2L40BMK | 6.1 | 40 | 0.2 | 1 | BMK | SIM****H6 | £38.52 | 5 days | |
| MPR7R0.2L22BMK | 7.1 | 22 | 0.2 | 1.5 | BMK | SIM****H7 | £33.53 | In Stock | |
| MPR7R0.2L30BMK | 7.1 | 30 | 0.2 | 1.5 | BMK | SIM****H7 | £37.02 | In Stock | |
| MPR7R0.2L35BMK | 7.1 | 35 | 0.2 | 1.5 | BMK | SIM****H7 | £38.87 | In Stock | |
| MPR8R0.2L15BMK | 8.1 | 15 | 0.2 | 1.6 | BMK | SIM****H8 | £32.40 | 5 days | |
| MPR8R0.2L22BMK | 8.1 | 22 | 0.2 | 1.6 | BMK | SIM****H8 | £36.58 | In Stock | |
| MPR8R0.2L35BMK | 8.1 | 35 | 0.2 | 1.6 | BMK | SIM****H8 | £40.05 | 5 days | |
| MPR10R0.2L35BMK | 10.1 | 35 | 0.2 | 2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MPL1.2R0.1L5BMK | 1.2 | 5 | 0.1 | 0.3 | BMK | SIM****H3 | £24.19 | 5 days | |
| MPL1.2R0.1L9BMK | 1.2 | 9 | 0.1 | 0.3 | BMK | SIM****H3 | £28.05 | 5 days | |
| MPL1.5R0.05L10BMK | 1.5 | 10 | 0.05 | 0.3 | BMK | SIM****H3 | £28.05 | 5 days | |
| MPL1.5R0.1L10BMK | 1.5 | 10 | 0.1 | 0.3 | BMK | SIM****H3 | £25.98 | 5 days | |
| MPL1.5R0.1L6BMK | 1.5 | 6 | 0.1 | 0.3 | BMK | SIM****H3 | £25.49 | 5 days | |
| MPL10R0.2L35BMK | 10.1 | 35 | 0.2 | 2 | BMK | SIM****H10 | £41.21 | 5 days | |
| MPL1R0.05L4BMK | 1 | 4 | 0.05 | 0.2 | BMK | SIM****H3 | £25.49 | 5 days | |
| MPL1R0.05L8BMK | 1 | 8 | 0.05 | 0.2 | BMK | SIM****H3 | £28.04 | 5 days | |
| MPL2.5R0.1L10BMK | 2.5 | 10 | 0.1 | 0.6 | BMK | SIM****H3 | £24.25 | 5 days | |
| MPL2.5R0.1L15BMK | 2.5 | 15 | 0.1 | 0.6 | BMK | SIM****H3 | £24.25 | 5 days | |
| MPL2R0.05L10BMK | 2.1 | 10 | 0.05 | 0.5 | BMK | SIM****H3 | £24.28 | 5 days | |
| MPL2R0.15L10BMK | 2.1 | 10 | 0.15 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL2R0.15L15BMK | 2.1 | 15 | 0.15 | 0.5 | BMK | SIM****H3 | £24.23 | 5 days | |
| MPL2R0.15L5BMK | 2.1 | 5 | 0.15 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL2R0.1L10BMK | 2.1 | 10 | 0.1 | 0.5 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL3R0.05L10BMK | 3.1 | 10 | 0.05 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL3R0.05L15BMK | 3.1 | 15 | 0.05 | 0.7 | BMK | SIM****H3 | £25.17 | 5 days | |
| MPL3R0.1L10BMK | 3.1 | 10 | 0.1 | 0.7 | BMK | SIM****H3 | £19.98 | 5 days | |
| MPL3R0.1L15BMK | 3.1 | 15 | 0.1 | 0.7 | BMK | SIM****H3 | £25.17 | 5 days | |
| MPL3R0.1L22BMK | 3.1 | 22 | 0.1 | 0.7 | BMK | SIM****H3 | £26.49 | 5 days | |
| MPL3R0.2L10BMK | 3.1 | 10 | 0.2 | 0.7 | BMK | SIM****H3 | £23.17 | 5 days | |
| MPL3R0.2L15BMK | 3.1 | 15 | 0.2 | 0.7 | BMK | SIM****H3 | £25.17 | 5 days | |
| MPL3R0.2L22BMK | 3.1 | 22 | 0.2 | 0.7 | BMK | SIM****H3 | £26.49 | 5 days | |
| MPL4R0.1L10BMK | 4.1 | 10 | 0.1 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPL4R0.1L15BMK | 4.1 | 15 | 0.1 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPL4R0.1L22BMK | 4.1 | 22 | 0.1 | 0.8 | BMK | SIM****H4 | £26.89 | 5 days | |
| MPL4R0.2L10BMK | 4.1 | 10 | 0.2 | 0.8 | BMK | SIM****H4 | £23.71 | 5 days | |
| MPL4R0.2L15BMK | 4.1 | 15 | 0.2 | 0.8 | BMK | SIM****H4 | £25.61 | 5 days | |
| MPL4R0.2L22BMK | 4.1 | 22 | 0.2 | 0.8 | BMK | SIM****H4 | £26.89 | 5 days | |
| MPL4R0.2L30BMK | 4.1 | 30 | 0.2 | 0.8 | BMK | SIM****H4 | £29.83 | 5 days | |
| MPL5R0.1L22BMK | 5.1 | 22 | 0.1 | 1.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MPL5R0.1L30BMK | 5.1 | 30 | 0.1 | 1.2 | BMK | SIM****H5 | £34.29 | 5 days | |
| MPL5R0.2L10BMK | 5.1 | 10 | 0.2 | 1.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MPL5R0.2L15BMK | 5.1 | 15 | 0.2 | 1.2 | BMK | SIM****H5 | £26.20 | 5 days | |
| MPL5R0.2L22BMK | 5.1 | 22 | 0.2 | 1.2 | BMK | SIM****H5 | £29.89 | 5 days | |
| MPL5R0.2L30BMK | 5.1 | 30 | 0.2 | 1.2 | BMK | SIM****H5 | £34.29 | 5 days | |
| MPL5R0.2L40BMK | 5.1 | 40 | 0.2 | 0.9 | BMK | SIM****H5 | £37.71 | 5 days | |
| MPL6R0.2L15BMK | 6.1 | 15 | 0.2 | 1.4 | BMK | SIM****H6 | £26.91 | 5 days | |
| MPL6R0.2L22BMK | 6.1 | 22 | 0.2 | 1.4 | BMK | SIM****H6 | £30.48 | 5 days | |
| MPL6R0.2L30BMK | 6.1 | 30 | 0.2 | 1.4 | BMK | SIM****H6 | £35.08 | 5 days | |
| MPL6R0.2L40BMK | 6.1 | 40 | 0.2 | 1 | BMK | SIM****H6 | £38.52 | 5 days | |
| MPL7R0.2L22BMK | 7.1 | 22 | 0.2 | 1.5 | BMK | SIM****H7 | £33.53 | 5 days | |
| MPL7R0.2L30BMK | 7.1 | 30 | 0.2 | 1.5 | BMK | SIM****H7 | £37.02 | 5 days | |
| MPL7R0.2L35BMK | 7.1 | 35 | 0.2 | 1.5 | BMK | SIM****H7 | £38.87 | 5 days | |
| MPL8R0.2L15BMK | 8.1 | 15 | 0.2 | 1.6 | BMK | SIM****H8 | £32.40 | 5 days | |
| MPL8R0.2L22BMK | 8.1 | 22 | 0.2 | 1.6 | BMK | SIM****H8 | £36.58 | 5 days | |
| MPL8R0.2L35BMK | 8.1 | 35 | 0.2 | 1.6 | BMK | SIM****H8 | £40.05 | 5 days |
