Carmex Carbide Tiny Tool - Profiling & Boring 47° - MQR - BMK Grade - Minimum Diameter 6.1mm x 22mm Reach x R0.2
| Application | Profiling & Boring 47° (MQR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Profile Max Depth (F) | 2.8 |
| L | 51 |
Learn more about Klarna

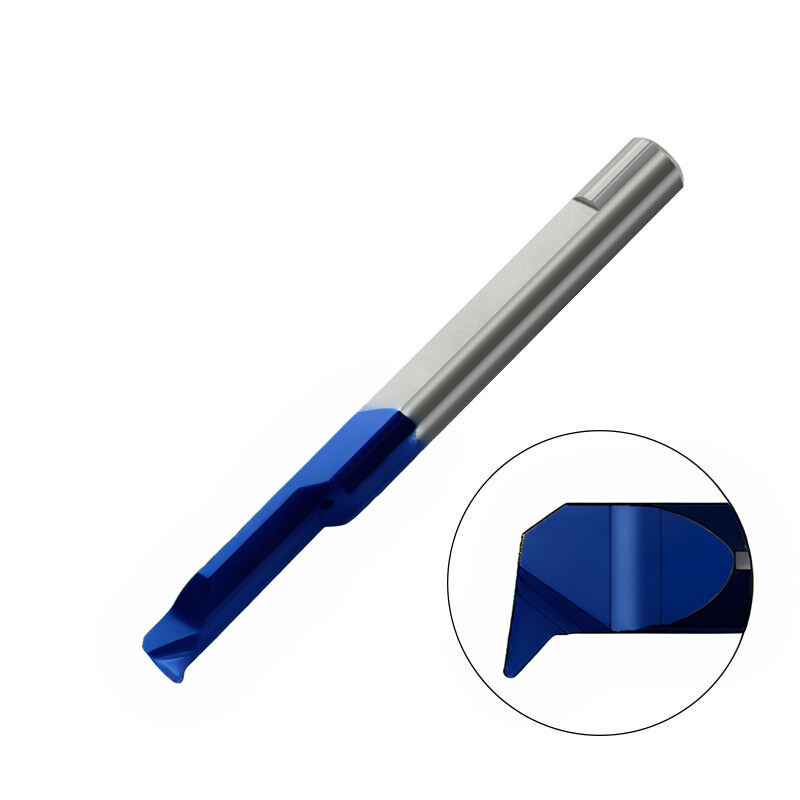

The Carmex Carbide Tiny Tool is a compact profiling and boring cutter designed for micro-scale work. Its 47° profiling geometry and blue-tipped end help you shape intricate contours and precise bore features in tiny parts with confidence. Made from premium carbide, it delivers clean results and exceptional wear resistance in demanding materials.
Designed for engineers, machinists, hobbyists, and technicians, this tool pairs BMK-grade carbide with the MQR designation to ensure consistent performance across jobs. Key specs include a minimum diameter of 6.1 mm, a reach of 22 mm, and a corner radius of R0.2, giving you the precision and reach needed for tight pockets and fine detail.
- Precision 47° Profiling Geometry: Delivers accurate contours and profiles on small parts, reducing finishing passes and delivering repeatable geometry.
- Compact 6.1 mm Diameter with 22 mm Reach: Lets you access tight pockets and through-holes while maintaining cutting stability and clearances for consistent results.
- BMK-Grade Carbide with Enhanced Wear Resistance: Provides long tool life and reliable performance in a wide range of materials, helping minimize tool changes and downtime.
The Carmex Tiny Tool helps you complete delicate profiling and boring tasks faster with better finishes. Its small size, durable carbide, and optimized geometry support improved workflow, higher throughput, and consistent results on tight geometries and small components.

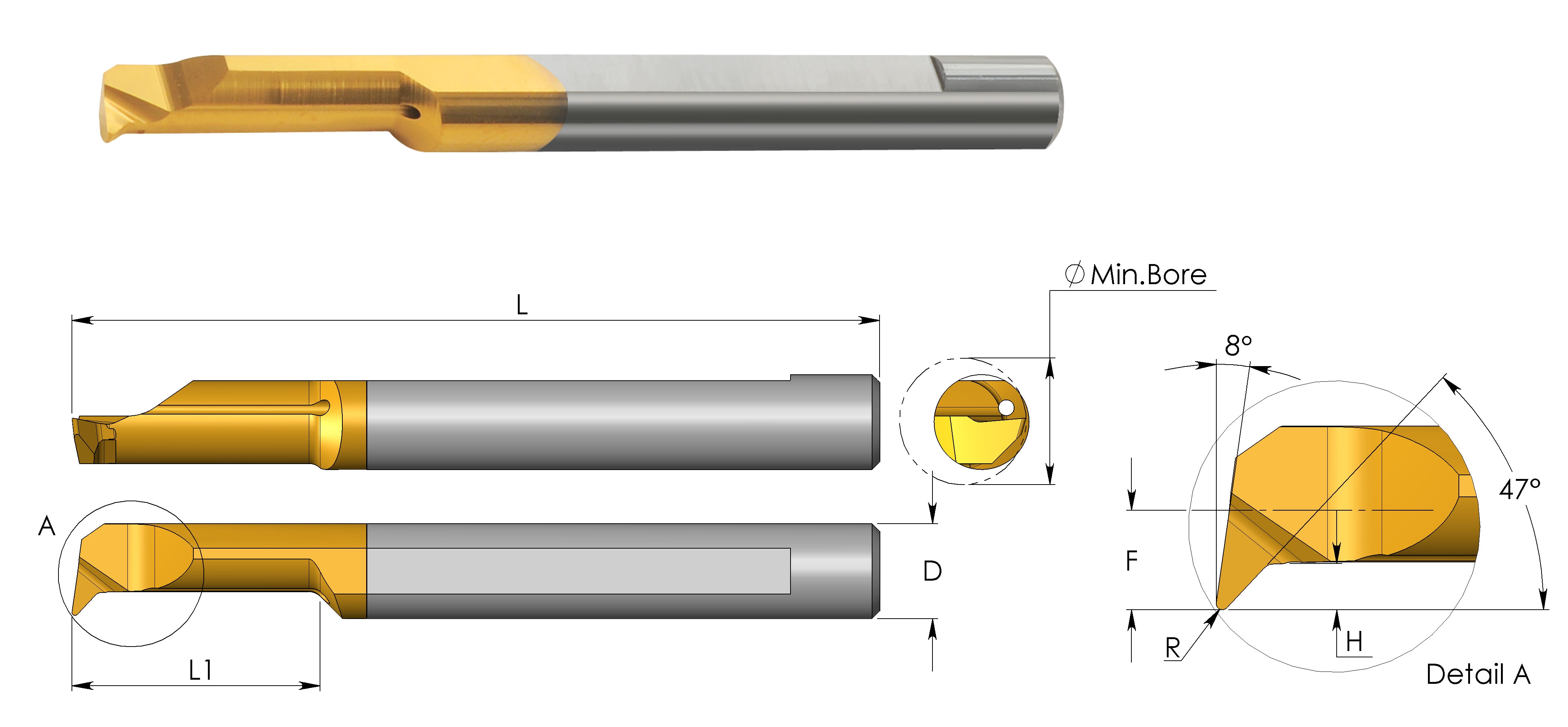

| Application | Profiling & Boring 47° (MQR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Profile Max Depth (F) | 2.8 |
| L | 51 |
| H | 1.4 |
| D | 6.0 |
| Grade | BMK |
| Holder | SIM****H6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring 47° - Grade BMK (MQR)
View full collection →You are viewing MQR6R0.2L22BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MQR3R0.1L10BMK | 3.1 | 10 | 0.1 | 1.3 | BMK | SIM****H3 | £24.10 | In Stock | |
| MQR3R0.1L15BMK | 3.1 | 15 | 0.1 | 1.3 | BMK | SIM****H3 | £26.03 | In Stock | |
| MQR4R0.1L22BMK | 4.1 | 22 | 0.1 | 1.8 | BMK | SIM****H4 | £27.00 | 5 days | |
| MQR4R0.2L10BMK | 4.1 | 10 | 0.2 | 1.8 | BMK | SIM****H4 | £24.10 | 5 days | |
| MQR4R0.2L15BMK | 4.1 | 15 | 0.2 | 1.8 | BMK | SIM****H4 | £26.03 | 5 days | |
| MQR4R0.2L22BMK | 4.1 | 22 | 0.2 | 1.8 | BMK | SIM****H4 | £27.35 | In Stock | |
| MQR5R0.2L15BMK | 5.1 | 15 | 0.2 | 2.3 | BMK | SIM****H5 | £26.63 | 5 days | |
| MQR5R0.2L22BMK | 5.1 | 22 | 0.2 | 2.3 | BMK | SIM****H5 | £30.38 | 5 days | |
| MQR6R0.2L15BMK | 6.1 | 15 | 0.2 | 2.8 | BMK | SIM****H6 | £27.35 | 5 days | |
| MQR6R0.2L22BMK Viewing | 6.1 | 22 | 0.2 | 2.8 | BMK | SIM****H6 | £30.98 | In Stock | |
| MQR6R0.2L30BMK | 6.1 | 30 | 0.2 | 2.8 | BMK | SIM****H6 | £35.65 | In Stock | |
| MQR8R0.2L22BMK | 8.1 | 22 | 0.2 | 3.8 | BMK | SIM****H8 | £37.18 | 5 days | |
| MQR8R0.2L27BMK | 8.1 | 27 | 0.2 | 3.8 | BMK | SIM****H8 | £39.05 | In Stock | |
| MQL3R0.1L10BMK | 3.1 | 10 | 0.1 | 1.3 | BMK | SIM****H3 | £20.38 | 5 days | |
| MQL3R0.1L15BMK | 3.1 | 15 | 0.1 | 1.3 | BMK | SIM****H3 | £22.00 | 5 days | |
| MQL4R0.1L22BMK | 4.1 | 22 | 0.1 | 1.8 | BMK | SIM****H4 | £27.00 | 5 days | |
| MQL4R0.2L10BMK | 4.1 | 10 | 0.2 | 1.8 | BMK | SIM****H4 | £24.10 | 5 days | |
| MQL4R0.2L15BMK | 4.1 | 15 | 0.2 | 1.8 | BMK | SIM****H4 | £26.03 | 5 days | |
| MQL4R0.2L22BMK | 4.1 | 22 | 0.2 | 1.8 | BMK | SIM****H4 | £27.35 | 5 days | |
| MQL5R0.2L15BMK | 5.1 | 15 | 0.2 | 2.3 | BMK | SIM****H5 | £26.63 | 5 days | |
| MQL5R0.2L22BMK | 5.1 | 22 | 0.2 | 2.3 | BMK | SIM****H5 | £30.38 | 5 days | |
| MQL6R0.2L15BMK | 6.1 | 15 | 0.2 | 2.8 | BMK | SIM****H6 | £27.35 | 5 days | |
| MQL6R0.2L22BMK | 6.1 | 22 | 0.2 | 2.8 | BMK | SIM****H6 | £30.98 | 5 days | |
| MQL6R0.2L30BMK | 6.1 | 30 | 0.2 | 2.8 | BMK | SIM****H6 | £35.65 | 5 days | |
| MQL8R0.2L22BMK | 8.1 | 22 | 0.2 | 3.8 | BMK | SIM****H8 | £37.18 | 5 days | |
| MQL8R0.2L27BMK | 8.1 | 27 | 0.2 | 3.8 | BMK | SIM****H8 | £39.05 | 5 days |
