Carmex Thread Mills Mini Type - Through Coolant - Metric - M5 x 0.5 - MT7
| Thread Form | Metric |
| Size | M5 |
| Pitch | 0.5 |
| Diameter (D) | 2.4 |
| Flute Length (l) | 1.5 |
| Shank Diameter (d) | 6 |
Learn more about Klarna

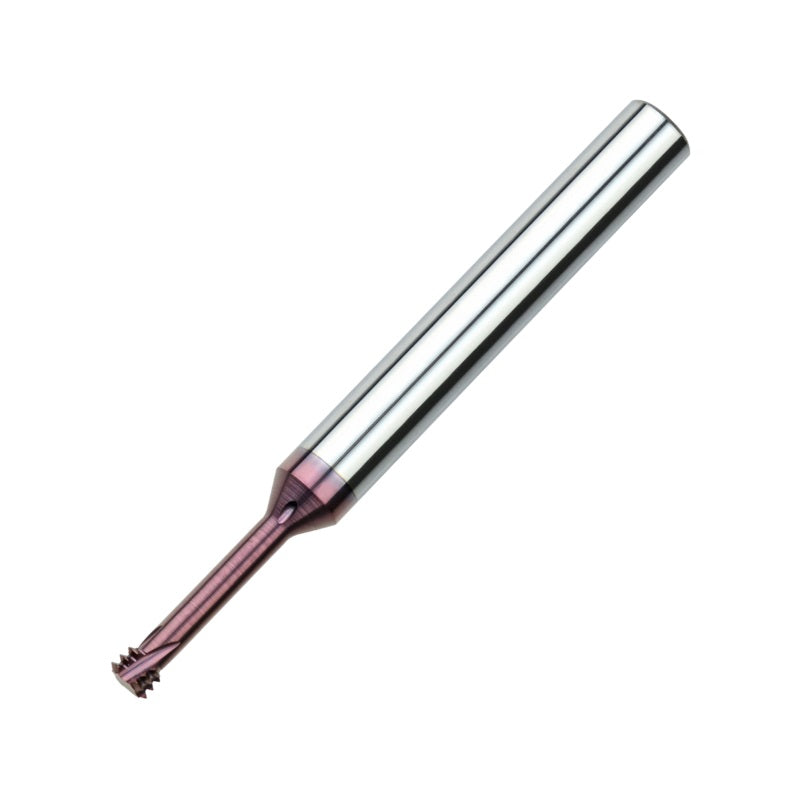

Carmex's MTSB Mini Type Through-Coolant Thread Milling Cutter is engineered for precise metric threading in tight spaces. This solid carbide tool, designed for M5 x 0.5 threads with an MT7 shank, uses an internal coolant bore to push coolant through the tool into the pre-hole—providing cooling, lubrication, and reliable chip evacuation during each threading pass.
- Tool Type: Mini through-coolant thread milling cutter (MTSB) for metric threads
- Thread Size: M5 x 0.5
- Material: Solid carbide for exceptional hardness and wear resistance
- Coolant System: Internal coolant bore delivers high-pressure coolant through the tool to the pre-hole, enhancing cooling and chip washing

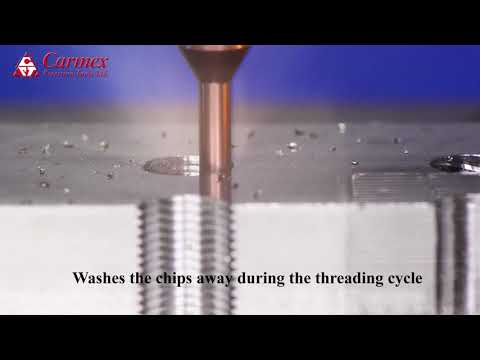

- Chip Evacuation: Chips are flushed away during the threading circle to reduce clogging and improve stability
- Cutting Edge Cooling: Coolant cools the cutting edge efficiently, helping maintain edge sharpness
The combination of a compact mini geometry, robust carbide construction, and through-coolant capability makes this MTSB cutter a dependable choice for production threading, especially when space is limited or tight tolerances are required. It supports cleaner threads, reduced cycle times, and longer tool life by maintaining stable temperatures and consistent chip flow.
| Thread Form | Metric |
| Size | M5 |
| Pitch | 0.5 |
| Diameter (D) | 2.4 |
| Flute Length (l) | 1.5 |
| Shank Diameter (d) | 6 |
| No of Flutes | 4 |
| Overall Length (L) | 58 |
| Thread Mill Style | Mini Type + Coolant |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Thread Mills - ISO Mini Type With Internal Coolant Bore (MTSB)
View full collection →You are viewing MTSB06024D60.5ISOMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTSB06009C20.25IS0MT7 | M1.2 M1.4 | 0.25 | 0.75 | 2.7 | 58 | £108.07 | 5 days | |
| MTSB06011C40.3ISOMT7 | M1.4 | 0.3 | 0.9 | 4.5 | 58 | £114.51 | 5 days | |
| MTSB06012C50.35IS0MT7 | M1.6 M2 | 0.35 | 1.05 | 5.2 | 58 | £108.07 | 5 days | |
| MTSB06016C40.4ISOMT7 | M2 | 0.4 | 1.2 | 4.4 | 58 | £114.51 | 5 days | |
| MTSB06016C60.4ISOMT7 | M2 | 0.4 | 1.2 | 6.4 | 58 | £114.51 | 5 days | |
| MTSB06024D60.5ISOMT7 Viewing | M5 | 0.5 | 1.5 | 6.5 | 58 | £114.51 | 5 days | |
| MTSB06024D90.5ISOMT7 | M5 | 0.5 | 1.5 | 9.5 | 58 | £114.51 | 5 days | |
| MTSB06028D70.6ISOMT7 | M3.5 | 0.6 | 1.8 | 7.6 | 58 | £114.51 | 5 days | |
| MTSB0602D50.45ISOMT7 | M2.5 | 0.45 | 1.35 | 5.5 | 58 | £114.51 | 5 days | |
| MTSB0602D70.45ISOMT7 | M2.5 | 0.45 | 1.35 | 7.9 | 58 | £114.51 | 5 days | |
| MTSB06032D120.7IS0MT7 | M4 | 0.7 | 2.1 | 12.7 | 58 | £108.07 | 5 days | |
| MTSB06032D80.7ISOMT7 | M4 | 0.7 | 2.1 | 8.7 | 58 | £114.51 | 5 days | |
| MTSB06038D100.8ISOMT7 | M5 | 0.8 | 2.4 | 10.8 | 58 | £114.51 | 5 days | |
| MTSB06038D150.8ISOMT7 | M5 | 0.8 | 2.4 | 15.8 | 58 | £114.51 | 5 days | |
| MTSB08048D131.0ISOMT7 | M6 M8 | 1 | 3 | 13 | 64 | £152.70 | 5 days | |
| MTSB08048D191.0ISOMT7 | M6 M8 | 1 | 3 | 19 | 64 | £152.70 | 5 days | |
| MTSB0808E311.5ISOMT7 | M10 | 1.5 | 4.5 | 31.5 | 64 | £152.70 | 5 days | |
| MTSB10095E371.75ISOMT7 | M12 | 1.75 | 5.25 | 37.8 | 73 | £197.58 | 5 days | |
| MTSB1212E502.0ISOMT7 | M16 M17 | 2 | 6 | 50 | 105 | £244.73 | 5 days |
