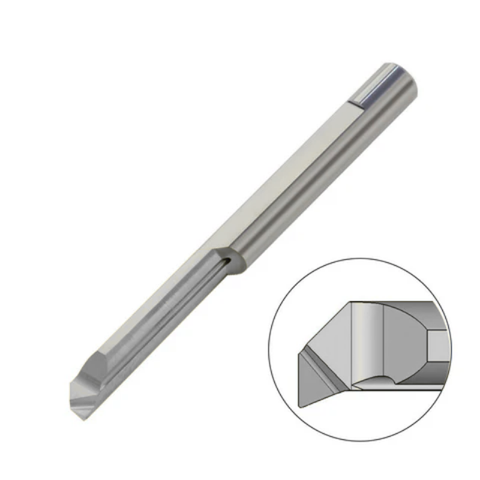

Carmex Carbide Tiny Tool - Profiling 90° face - MUL - K20 Grade - 4.1mm Minimum Diameter x 10mm Reach (Left Hand)

Carmex Carbide Tiny Tool - Profiling 90° face - MUL - K20 Grade - 4.1mm Minimum Diameter x 10mm Reach (Left Hand)

SKU:MUL4R0.1L10K20

The Carmex Carbide Tiny Tool is a compact profiling and 90° face cutting tool (MUL) designed for small, precise workpieces. With a left-hand orientation and a 4.1 mm minimum diameter and 10 mm re... Read more ↓
M
K
N
S
ApplicationProfiling 90° face (MUL)
Minimum Diameter4.1
Reach (L1)10
Radius (R)0.1
Profile Max Depth (H)0.5
L51
View all specifications ↓
Download Cutting Data
£17.60
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Carmex Carbide Tiny Tool is a compact profiling and 90° face cutting tool (MUL) designed for small, precise workpieces. With a left-hand orientation and a 4.1 mm minimum diameter and 10 mm reach, it excels at creating intricate shapes and clean face cuts on tiny components, making it ideal for engineers, machinists, and hobbyists working in tight spaces.

  • Compact profiling 90° face (MUL) geometry: The precise 90° profile supports accurate shaping of intricate contours on small parts, delivering consistent results with minimal tool passes.
  • Premium K20 carbide construction: Built from high-grade carbide for exceptional wear resistance and long tool life, even under demanding profiling tasks.
  • Left-hand orientation with easy integration: Optimized for left-handed milling setups, providing stable cuts and straightforward mounting in standard toolholders to keep your workflow efficient.

This tiny profiling tool brings precision and reliability to micro-scale milling tasks. Its compact form fits into cramped cavities, enabling consistent, high-quality profiles and clean faces with fewer passes. By combining durable carbide with thoughtful geometry, it helps you cut faster, reduce setup time, and minimize rework—raising overall productivity on small-part projects.

Application Profiling 90° face (MUL)
Minimum Diameter 4.1
Reach (L1) 10
Radius (R) 0.1
Profile Max Depth (H) 0.5
L 51
F 1.7
D 4.0
Grade K20
Holder SIM****H4

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Carmex Carbide Tiny Tools - Profiling 90° Face - Grade K20 (MUR)

View full collection →

You are viewing MUL4R0.1L10K20. Click any other SKU to view its full details.

Product SKUMinimum DiameterReachRadiusProfile Max DepthGradeHolderPriceStock Order
MUR6R0.15L22K20 6.1220.150.9K20SIM****H6£26.73 5 days
MUR5R0.15L15K20 5.1150.150.7K20SIM****H5£22.98 5 days
MUR5R0.15L22K20 5.1220.150.7K20SIM****H5£26.23 5 days
MUR3R0.05L10K20 3.1100.050.4K20SIM****H3£20.30 5 days
MUR4R0.1L15K20 4.1150.10.5K20SIM****H4£22.48 5 days
MUR4R0.1L10K20 4.1100.10.5K20SIM****H4£20.83 5 days
MUR8R0.2L22K20 8.1220.21.1K20SIM****H8£32.05 5 days
MUR3R0.05L15K20 3.1150.050.4K20SIM****H3£22.13 5 days
MUR6R0.15L15K20 6.1150.150.9K20SIM****H6£23.65 5 days
MUL3R0.05L10K20 3.1100.050.4K20SIM****H3£17.18 5 days
MUL3R0.05L15K20 3.1150.050.4K20SIM****H3£18.68 5 days
MUL4R0.1L10K20 Viewing4.1100.10.5K20SIM****H4£17.60 5 days
MUL4R0.1L15K20 4.1150.10.5K20SIM****H4£19.05 5 days
MUL5R0.15L15K20 5.1150.150.7K20SIM****H5£19.43 5 days
MUL5R0.15L22K20 5.1220.150.7K20SIM****H5£22.15 5 days
MUL6R0.15L15K20 6.1150.150.9K20SIM****H6£20.03 5 days
MUL6R0.15L22K20 6.1220.150.9K20SIM****H6£22.63 5 days
MUL8R0.2L22K20 8.1220.21.1K20SIM****H8£27.13 5 days
