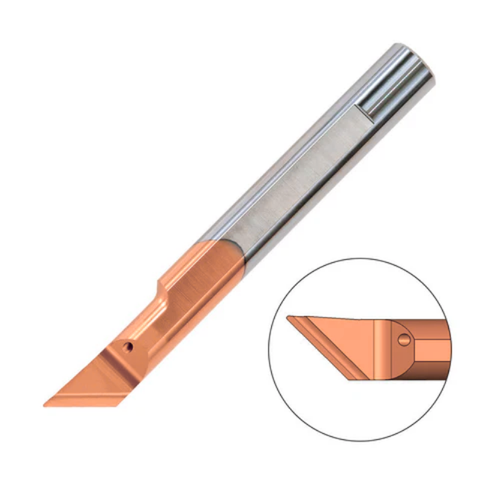

Carmex Carbide Tiny Tool - Face Chamfering & Profiling - MWL - TNX Grade - 90° Angle - 1mm Minimum Diameter x 22mm Reach (Left Hand)
| Application | Face Chamfering & Profiling (MWL) |
| Minimum Diameter | 1 |
| Reach (L1) | 22 |
| Radius (R) | 0.4 |
| Face Chamfer Angle (a) | 45° & 90° Inclusive |
| L | 51 |
Learn more about Klarna
The Carmex Carbide Tiny Tool is a precision cutting tool designed for small chamfering and profiling tasks. It’s ideal for engineers, buyers, tradespeople, hobbyists, and anyone working with tiny parts who needs clean, accurate edges.
Built from premium TNX Grade carbide and part of Carmex’s MWL lineup, this tool delivers long-lasting edge sharpness with a compact form. It features a 90° face geometry, a 1 mm minimum diameter, and a 22 mm reach, with left-hand orientation to fit specific machine setups and help you achieve consistent results in tight spaces.
- Ultra-compact reach with 1 mm minimum diameter x 22 mm reach (Left Hand): Enables chamfering and profiling in tight spots on small parts while maintaining rigidity for accurate edges, reducing the need for rework or re-setup.
- 90° face chamfering & profiling geometry: Produces clean, square chamfers and precise profiles on tiny components, delivering repeatable results and minimizing secondary finishing passes.
- Premium TNX Grade carbide with MWL design: Delivers exceptional wear resistance and tool life for repetitive small-part work, providing reliable performance across production and hobby applications.
With the Carmex Carbide Tiny Tool, you can reliably create precise chamfers and grooves on small components, speeding up setups, reducing rework, and delivering consistent, professional results across projects.
| Application | Face Chamfering & Profiling (MWL) |
| Minimum Diameter | 1 |
| Reach (L1) | 22 |
| Radius (R) | 0.4 |
| Face Chamfer Angle (a) | 45° & 90° Inclusive |
| L | 51 |
| B | 45° |
| F | 2.3 |
| D | 6.0 |
| Grade | TNX |
| Holder | SIM****H6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Face Chamfering & Profiling - Grade TNX (MWR)
View full collection →You are viewing MWL6R0.4A90TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Face Chamfer Angle | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MWR6R0.4A90TNX | 1 | 22 | 0.4 | 45° & 90° Inclusive | TNX | SIM****H6 | £34.63 | 5 days | |
| MWL6R0.4A60TNX | 1 | 22 | 0.4 | 30° & 60° Inclusive | TNX | SIM****H6 | £34.63 | 5 days | |
| MWL6R0.4A90TNX Viewing | 1 | 22 | 0.4 | 45° & 90° Inclusive | TNX | SIM****H6 | £34.63 | 5 days |
