Carmex Carbide Tiny Tool - Full Radius Face Grooving - MZL - BXC Grade - 5mm Minimum Diameter x 1mm Groove Width

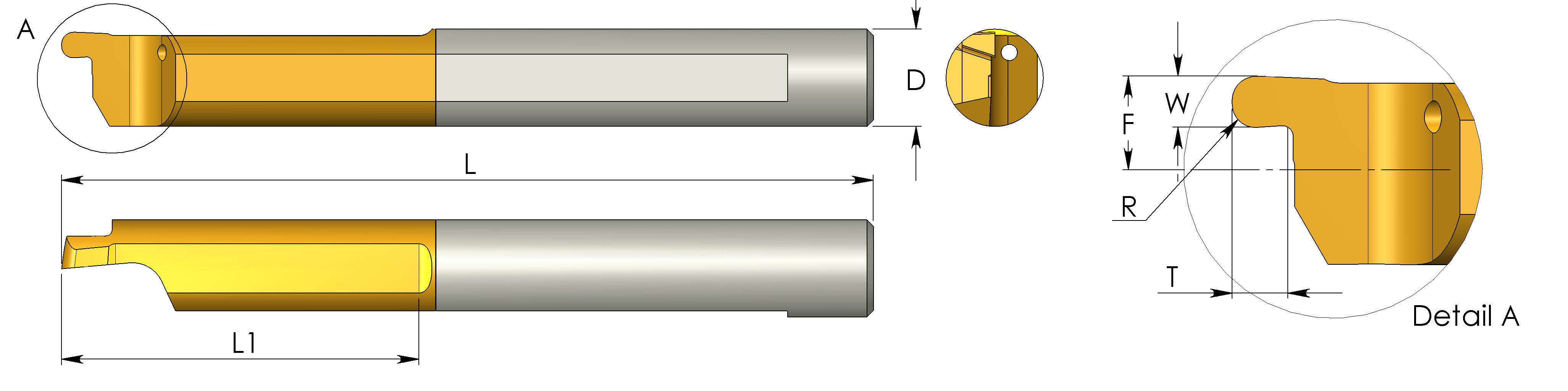

| Application | Full Radius Face Grooving (MZL) |
| Minimum Diameter | 5 |
| Groove Width (W) | 1 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 15 |
| L | 51 |
Learn more about Klarna

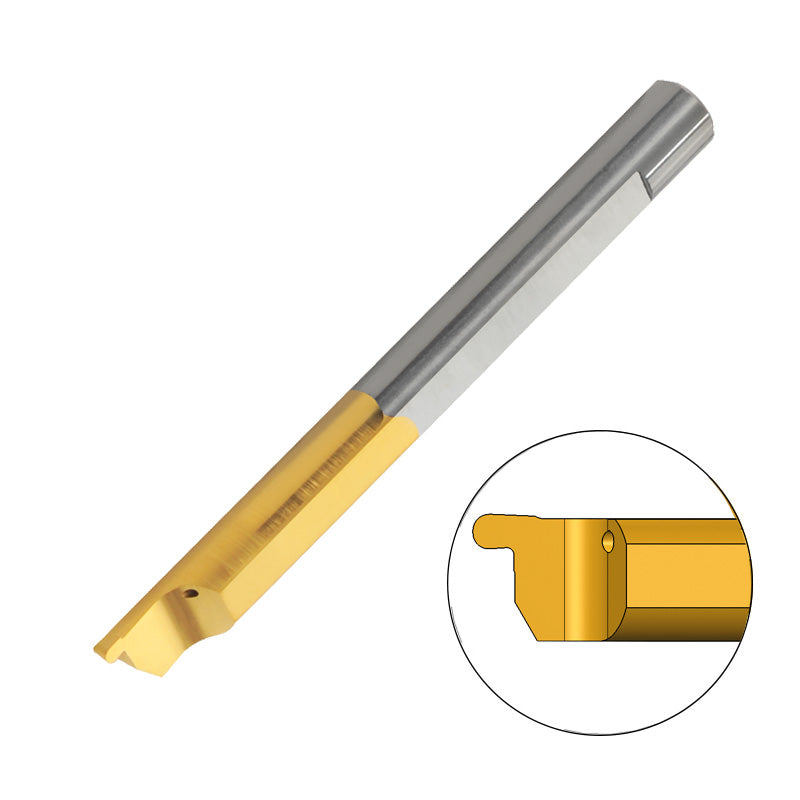

The Carmex Carbide Tiny Tool for Full Radius Face Grooving is a solid carbide bar engineered specifically for face grooving applications. It produces rounded grooves, unlike the straight grooves typical of other bar types, making it well-suited for precise mating surfaces and seals. This is a left-hand tool designed to deliver consistent performance in dedicated groove work.
- Full-radius groove geometry: Creates rounded grooves that distribute load more evenly and reduce stress concentrations at the groove corners, helping parts seat more securely and consistently.
- Left-hand cutting orientation: Optimized for left-handed operation, providing predictable chip flow and stable groove formation to minimize setup adjustments and rework.
- Durable MZL-BXC carbide with precise size: Built from MZL-BXC grade carbide for wear resistance and edge retention, while maintaining the specified 5 mm minimum diameter and 1 mm groove width for reliable, repeatable results.
This tool supports a streamlined workflow by delivering repeatable rounded grooves with durable performance. Its precise geometry and robust carbide help maintain groove width across cycles, reducing downtime and helping you achieve consistent fit and finish in your groove applications.
| Application | Full Radius Face Grooving (MZL) |
| Minimum Diameter | 5 |
| Groove Width (W) | 1 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 15 |
| L | 51 |
| R | 0.50 |
| F | 1.75 |
| D | 4.0 |
| Grade | BXC |
| Holder | SIM****H4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Full Radius Face Grooving - Grade BXC (MZL)
View full collection →You are viewing MZL4R0.5L15BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MZL4R0.5L15BXC Viewing | 5 | 1 | 1.2 | 15 | BXC | SIM****H4 | £24.43 | 5 days | |
| MZL4R0.75L15BXC | 5 | 1.5 | 1.5 | 15 | BXC | SIM****H4 | £24.43 | 5 days | |
| MZL5R0.5L22BXC | 6 | 1 | 1.2 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZL5R0.75L22BXC | 6 | 1.5 | 1.5 | 22 | BXC | SIM****H5 | £27.60 | 5 days | |
| MZL5R1.0L22BXC | 6 | 2 | 2.5 | 22 | BXC | SIM****H5 | £27.60 | In Stock | |
| MZL6R0.5L22BXC | 8 | 1 | 1.2 | 22 | BXC | SIM****H6 | £28.18 | 5 days | |
| MZL6R0.75L22BXC | 8 | 1.5 | 1.5 | 22 | BXC | SIM****H6 | £28.18 | 5 days | |
| MZL6R1.0L22BXC | 8 | 2 | 2.5 | 22 | BXC | SIM****H6 | £28.18 | 5 days |
