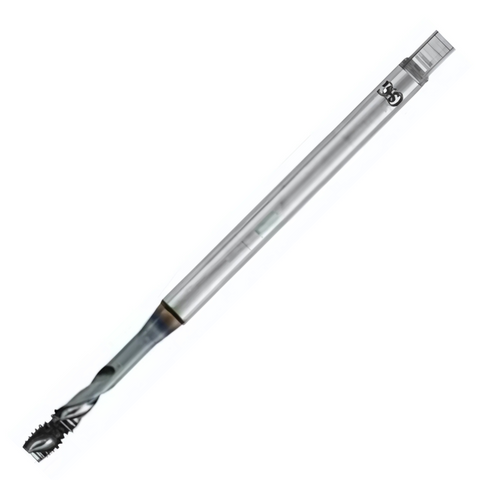

OSG Threading Tap Metric Fine A-Spiral Flute - Powder Metal Right Hand -TiCN Coated - Blind Holes DIN371 - M4 x 0.35
| Size | M4 |
| Pitch | 0.35 |
| Overall Length | 63 |
| Threading Length | 5.6 |
| Reach | 21 |
| Shank Diameter | 4.5 |
Learn more about Klarna
The OSG Threading Tap is a precision metric fine thread tap designed for cutting threads in blind holes with clean, accurate results. Built for professional workshops and production environments, it combines a rugged powder-metal body with a TiCN coating to deliver reliable performance in demanding internal threading tasks.
- Thread Type & Size: Metric fine thread, M4 x 0.35, right-hand orientation for blind-hole applications.
- Flute Design: A-Spiral flute configuration that promotes efficient chip evacuation and reduces clogging in deep blind holes.
- Material: Powder-metal substrate offering enhanced hardness and wear resistance for longer tool life.
- Coating: TiCN (Titanium Carbo-Nitride) coating to lower friction, boost hardness, and sustain performance at higher speeds and temperatures.
- DIN Standard: DIN 371 compliance ensures reliable interchangeability and consistent results across tooling setups.
- Applications: Ideal for precision internal threading in small-diameter blind holes across manufacturing, repair, and assembly environments.
Designed to deliver consistent, accurate threads in constrained spaces, this tap minimizes resistance and chatter while maximizing tool life. The TiCN coating and powder-metal construction work together to endure repetitive cutting, making it a dependable choice for fine-thread needs. Its spiral flute design aids continuous chip removal, helping you achieve clean bottom-threads in blind holes and reducing downtime due to rework or tool wear.
| Size | M4 |
| Pitch | 0.35 |
| Overall Length | 63 |
| Threading Length | 5.6 |
| Reach | 21 |
| Shank Diameter | 4.5 |
| Square | 3.4 |
| Flutes | 3 |
| DIN | 371 |
| Thread Direction | Right Hand |
| Substrate | Powder Metal |
| Coating | TiCN |
| Style | Spiral Flute |
| Form | Metric |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: OSG Threading Taps Metric Fine A-Spiral Flute - Powder Metal Right Hand -TiCN Coated - Blind Holes
View full collection →You are viewing OSG-48139146. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Overall Length | Shank Diameter | Flutes | DIN | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-48139135 | M2.5 | 0.35 | 50 | 2.8 | 2 | 371 | £41.81 | In Stock | |
| OSG-48139137 | M2.6 | 0.35 | 50 | 2.8 | 2 | 371 | £39.25 | In Stock | |
| OSG-48139141 | M3 | 0.35 | 56 | 3.5 | 3 | 371 | £37.92 | In Stock | |
| OSG-48139143 | M3.5 | 0.35 | 56 | 4 | 3 | 371 | £47.33 | In Stock | |
| OSG-48139146 Viewing | M4 | 0.35 | 63 | 4.5 | 3 | 371 | £37.26 | In Stock | |
| OSG-48139145 | M4 | 0.5 | 63 | 4.5 | 3 | 371 | £55.91 | In Stock | |
| OSG-48139148 | M4.5 | 0.5 | 70 | 6 | 3 | 371 | £37.92 | In Stock | |
| OSG-48139151 | M5 | 0.5 | 70 | 6 | 3 | 371 | £42.58 | In Stock | |
| OSG-48139602 | M6 | 0.5 | 80 | 6 | 3 | 371 | £38.74 | In Stock | |
| OSG-48139601 | M6 | 0.75 | 80 | 6 | 3 | 371 | £36.98 | In Stock | |
| OSG-48139160 | M7 | 0.75 | 80 | 7 | 3 | 371 | £37.41 | In Stock | |
| OSG-48139604 | M8 | 0.75 | 80 | 8 | 3 | 371 | £39.00 | In Stock | |
| OSG-48139603 | M8 | 1 | 90 | 8 | 3 | 371 | £46.32 | In Stock | |
| OSG-48139605 | M9 | 1 | 90 | 9 | 3 | 371 | £44.59 | In Stock | |
| OSG-48139608 | M10 | 0.75 | 90 | 10 | 3 | 371 | £42.73 | In Stock | |
| OSG-48139607 | M10 | 1 | 90 | 10 | 3 | 371 | £52.70 | In Stock | |
| OSG-48139606 | M10 | 1.25 | 100 | 10 | 3 | 371 | £50.42 | In Stock | |
| OSG-48139157 | M6 | 0.5 | 80 | 4.5 | 3 | 374 | £56.97 | In Stock | |
| OSG-48139156 | M6 | 0.75 | 80 | 4.5 | 3 | 374 | £47.03 | In Stock | |
| OSG-48139163 | M8 | 0.75 | 80 | 6 | 3 | 374 | £49.76 | In Stock | |
| OSG-48139162 | M8 | 1 | 90 | 6 | 3 | 374 | £52.36 | In Stock | |
| OSG-48139167 | M9 | 1 | 90 | 7 | 3 | 374 | £56.97 | In Stock | |
| OSG-48139172 | M10 | 0.75 | 90 | 7 | 3 | 374 | £90.86 | In Stock | |
| OSG-48139171 | M10 | 1 | 90 | 7 | 3 | 374 | £55.26 | In Stock | |
| OSG-48139170 | M10 | 1.25 | 100 | 7 | 3 | 374 | £54.15 | In Stock | |
| OSG-48139176 | M11 | 1 | 90 | 8 | 3 | 374 | £107.28 | In Stock | |
| OSG-48139182 | M12 | 1 | 100 | 9 | 3 | 374 | £63.45 | In Stock | |
| OSG-48139181 | M12 | 1.25 | 100 | 9 | 3 | 374 | £63.45 | In Stock | |
| OSG-48139180 | M12 | 1.5 | 100 | 9 | 3 | 374 | £66.05 | In Stock | |
| OSG-48139194 | M14 | 1 | 100 | 11 | 3 | 374 | £95.03 | In Stock | |
| OSG-48139193 | M14 | 1.25 | 100 | 11 | 3 | 374 | £95.03 | In Stock | |
| OSG-48139192 | M14 | 1.5 | 100 | 11 | 3 | 374 | £81.71 | In Stock | |
| OSG-48139204 | M16 | 1 | 100 | 12 | 3 | 374 | £99.43 | In Stock | |
| OSG-48139203 | M16 | 1.5 | 100 | 12 | 3 | 374 | £94.73 | In Stock | |
| OSG-48139218 | M18 | 1 | 110 | 14 | 4 | 374 | £126.99 | In Stock | |
| OSG-48139216 | M18 | 1.5 | 110 | 14 | 4 | 374 | £109.16 | In Stock | |
| OSG-48139232 | M20 | 1 | 125 | 16 | 4 | 374 | £159.47 | In Stock | |
| OSG-48139230 | M20 | 1.5 | 125 | 16 | 4 | 374 | £136.85 | In Stock | |
| OSG-48139220 | M20 | 2 | 140 | 16 | 4 | 374 | £159.47 | In Stock | |
| OSG-48139241 | M22 | 1 | 125 | 18 | 4 | 374 | £174.37 | 1-2 days | |
| OSG-48139240 | M22 | 1.5 | 125 | 18 | 4 | 374 | £141.80 | In Stock | |
| OSG-48139239 | M22 | 2 | 140 | 18 | 4 | 374 | £174.37 | In Stock | |
| OSG-48139251 | M24 | 1 | 140 | 18 | 4 | 374 | £214.17 | In Stock | |
| OSG-48139250 | M24 | 1.5 | 140 | 18 | 4 | 374 | £186.20 | In Stock | |
| OSG-48139249 | M24 | 2 | 140 | 18 | 4 | 374 | £214.17 | In Stock |
