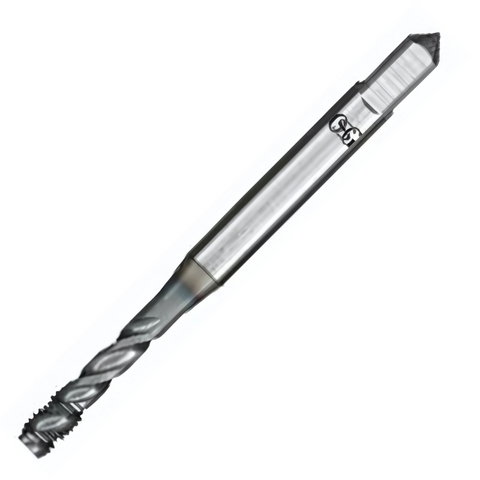

OSG Threading Tap Metric Fine A-Spiral Flute - Powder Metal Right Hand -TiCN Coated - Blind Holes DIN374 - M10 x 1
| Size | M10 |
| Pitch | 1 |
| Overall Length | 90 |
| Threading Length | 10 |
| Shank Diameter | 7 |
| Square | 5.5 |
Learn more about Klarna
The OSG Threading Tap, Metric Fine A-Spiral Flute, is a precision tool designed for clean, accurate M10 x 1 threads in blind holes. Built for professional machinists and serious DIYers, it combines durable powder-metal construction with a TiCN coating to maximize life and performance in challenging deep-hole work.
- Threading specification: Metric fine thread (M10 x 1) designed for precise engagement in blind holes, DIN374 compliant.
- Flute design: A-Spiral flute optimizes chip evacuation in restricted cavities, helping prevent clogging and re-cutting.
- Material: Powder-metal substrate delivers toughness and wear resistance for repeated use in demanding materials.
- Coating: TiCN coating enhances surface hardness and reduces friction, supporting higher cutting speeds and improved heat resistance.
- Orientation: Right-hand thread for standard tightening and compatibility with conventional tapping setups.
- Application: Ideal for fine-threading tasks in metalworking where access is limited to blind pockets and internal threads are critical.
By pairing a spiral flute with a durable, coated substrate, this tap delivers reliable thread formation with longer tool life and consistent results even in tougher metals. The TiCN coating helps maintain cutting efficiency over time, reducing wear and heat buildup, while the powder-metal body provides a stable balance of strength and cost-efficiency. This tap is well-suited for repair work, prototype builds, and production tasks that demand precise, clean M10 x 1 threads in confined spaces.
| Size | M10 |
| Pitch | 1 |
| Overall Length | 90 |
| Threading Length | 10 |
| Shank Diameter | 7 |
| Square | 5.5 |
| Flutes | 3 |
| DIN | 374 |
| Thread Direction | Right Hand |
| Substrate | Powder Metal |
| Coating | TiCN |
| Style | Spiral Flute |
| Form | Metric |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: OSG Threading Taps Metric Fine A-Spiral Flute - Powder Metal Right Hand -TiCN Coated - Blind Holes
View full collection →You are viewing OSG-48139171. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Overall Length | Shank Diameter | Flutes | DIN | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-48139135 | M2.5 | 0.35 | 50 | 2.8 | 2 | 371 | £41.81 | In Stock | |
| OSG-48139137 | M2.6 | 0.35 | 50 | 2.8 | 2 | 371 | £39.25 | In Stock | |
| OSG-48139141 | M3 | 0.35 | 56 | 3.5 | 3 | 371 | £37.92 | In Stock | |
| OSG-48139143 | M3.5 | 0.35 | 56 | 4 | 3 | 371 | £47.33 | In Stock | |
| OSG-48139146 | M4 | 0.35 | 63 | 4.5 | 3 | 371 | £37.26 | In Stock | |
| OSG-48139145 | M4 | 0.5 | 63 | 4.5 | 3 | 371 | £55.91 | In Stock | |
| OSG-48139148 | M4.5 | 0.5 | 70 | 6 | 3 | 371 | £37.92 | In Stock | |
| OSG-48139151 | M5 | 0.5 | 70 | 6 | 3 | 371 | £42.58 | In Stock | |
| OSG-48139602 | M6 | 0.5 | 80 | 6 | 3 | 371 | £38.74 | In Stock | |
| OSG-48139601 | M6 | 0.75 | 80 | 6 | 3 | 371 | £36.98 | In Stock | |
| OSG-48139160 | M7 | 0.75 | 80 | 7 | 3 | 371 | £37.41 | In Stock | |
| OSG-48139604 | M8 | 0.75 | 80 | 8 | 3 | 371 | £39.00 | In Stock | |
| OSG-48139603 | M8 | 1 | 90 | 8 | 3 | 371 | £46.32 | In Stock | |
| OSG-48139605 | M9 | 1 | 90 | 9 | 3 | 371 | £44.59 | In Stock | |
| OSG-48139608 | M10 | 0.75 | 90 | 10 | 3 | 371 | £42.73 | In Stock | |
| OSG-48139607 | M10 | 1 | 90 | 10 | 3 | 371 | £52.70 | In Stock | |
| OSG-48139606 | M10 | 1.25 | 100 | 10 | 3 | 371 | £50.42 | In Stock | |
| OSG-48139157 | M6 | 0.5 | 80 | 4.5 | 3 | 374 | £56.97 | In Stock | |
| OSG-48139156 | M6 | 0.75 | 80 | 4.5 | 3 | 374 | £47.03 | In Stock | |
| OSG-48139163 | M8 | 0.75 | 80 | 6 | 3 | 374 | £49.76 | In Stock | |
| OSG-48139162 | M8 | 1 | 90 | 6 | 3 | 374 | £52.36 | In Stock | |
| OSG-48139167 | M9 | 1 | 90 | 7 | 3 | 374 | £56.97 | In Stock | |
| OSG-48139172 | M10 | 0.75 | 90 | 7 | 3 | 374 | £90.86 | In Stock | |
| OSG-48139171 Viewing | M10 | 1 | 90 | 7 | 3 | 374 | £55.26 | In Stock | |
| OSG-48139170 | M10 | 1.25 | 100 | 7 | 3 | 374 | £54.15 | In Stock | |
| OSG-48139176 | M11 | 1 | 90 | 8 | 3 | 374 | £107.28 | In Stock | |
| OSG-48139182 | M12 | 1 | 100 | 9 | 3 | 374 | £63.45 | In Stock | |
| OSG-48139181 | M12 | 1.25 | 100 | 9 | 3 | 374 | £63.45 | In Stock | |
| OSG-48139180 | M12 | 1.5 | 100 | 9 | 3 | 374 | £66.05 | In Stock | |
| OSG-48139194 | M14 | 1 | 100 | 11 | 3 | 374 | £95.03 | In Stock | |
| OSG-48139193 | M14 | 1.25 | 100 | 11 | 3 | 374 | £95.03 | In Stock | |
| OSG-48139192 | M14 | 1.5 | 100 | 11 | 3 | 374 | £81.71 | In Stock | |
| OSG-48139204 | M16 | 1 | 100 | 12 | 3 | 374 | £99.43 | In Stock | |
| OSG-48139203 | M16 | 1.5 | 100 | 12 | 3 | 374 | £94.73 | In Stock | |
| OSG-48139218 | M18 | 1 | 110 | 14 | 4 | 374 | £126.99 | In Stock | |
| OSG-48139216 | M18 | 1.5 | 110 | 14 | 4 | 374 | £109.16 | In Stock | |
| OSG-48139232 | M20 | 1 | 125 | 16 | 4 | 374 | £159.47 | In Stock | |
| OSG-48139230 | M20 | 1.5 | 125 | 16 | 4 | 374 | £136.85 | In Stock | |
| OSG-48139220 | M20 | 2 | 140 | 16 | 4 | 374 | £159.47 | In Stock | |
| OSG-48139241 | M22 | 1 | 125 | 18 | 4 | 374 | £174.37 | 1-2 days | |
| OSG-48139240 | M22 | 1.5 | 125 | 18 | 4 | 374 | £141.80 | In Stock | |
| OSG-48139239 | M22 | 2 | 140 | 18 | 4 | 374 | £174.37 | In Stock | |
| OSG-48139251 | M24 | 1 | 140 | 18 | 4 | 374 | £214.17 | In Stock | |
| OSG-48139250 | M24 | 1.5 | 140 | 18 | 4 | 374 | £186.20 | In Stock | |
| OSG-48139249 | M24 | 2 | 140 | 18 | 4 | 374 | £214.17 | In Stock |
