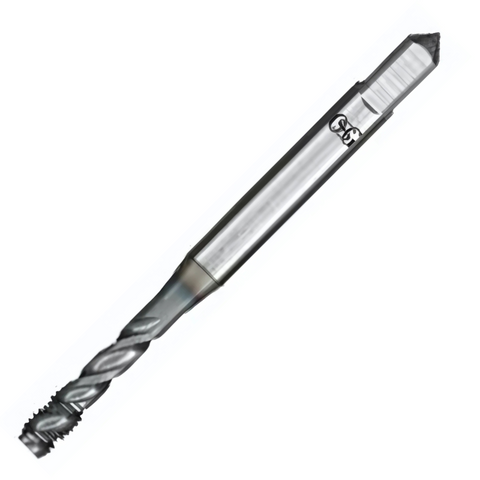

OSG Threading Tap Metric Fine A-Spiral Flute - Powder Metal Right Hand -TiCN Coated - Blind Holes DIN374 - M16 x 1
| Size | M16 |
| Pitch | 1 |
| Overall Length | 100 |
| Threading Length | 16 |
| Shank Diameter | 12 |
| Square | 9 |
Learn more about Klarna
The OSG Threading Tap is a metric fine-thread tap designed for precision in blind-hole applications. Built for machinists and engineers who demand reliable, clean threads, it delivers consistent performance and extended tool life.
- Size / pitch: M16 x 1 metric fine thread designed for DIN374 blind-hole tapping
- Flute design: A-Spiral flute enables efficient chip evacuation, reducing clogging and maintaining a clean cut in tight blind holes
- Material: Powder metal body for enhanced wear resistance and durability over many uses
- Coating: TiCN coating increases hardness and reduces friction, supporting higher cutting speeds and temperatures
- Direction: Right-hand threading for standard tapping operations
- Application: Specifically optimized for threading in blind holes in metal components, aligned with DIN374 specifications
This combination of substrate, coating, and flute geometry translates to precise thread formation, improved surface finish, and longer service life in demanding projects. The TiCN coating and spiral flute work together to deliver consistent results as speeds and materials vary, making it a reliable choice for both production and prototyping work.
| Size | M16 |
| Pitch | 1 |
| Overall Length | 100 |
| Threading Length | 16 |
| Shank Diameter | 12 |
| Square | 9 |
| Flutes | 3 |
| DIN | 374 |
| Thread Direction | Right Hand |
| Substrate | Powder Metal |
| Coating | TiCN |
| Style | Spiral Flute |
| Form | Metric |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: OSG Threading Taps Metric Fine A-Spiral Flute - Powder Metal Right Hand -TiCN Coated - Blind Holes
View full collection →You are viewing OSG-48139204. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Overall Length | Shank Diameter | Flutes | DIN | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-48139135 | M2.5 | 0.35 | 50 | 2.8 | 2 | 371 | £41.81 | In Stock | |
| OSG-48139137 | M2.6 | 0.35 | 50 | 2.8 | 2 | 371 | £39.25 | In Stock | |
| OSG-48139141 | M3 | 0.35 | 56 | 3.5 | 3 | 371 | £37.92 | In Stock | |
| OSG-48139143 | M3.5 | 0.35 | 56 | 4 | 3 | 371 | £47.33 | In Stock | |
| OSG-48139146 | M4 | 0.35 | 63 | 4.5 | 3 | 371 | £37.26 | In Stock | |
| OSG-48139145 | M4 | 0.5 | 63 | 4.5 | 3 | 371 | £55.91 | In Stock | |
| OSG-48139148 | M4.5 | 0.5 | 70 | 6 | 3 | 371 | £37.92 | In Stock | |
| OSG-48139151 | M5 | 0.5 | 70 | 6 | 3 | 371 | £42.58 | In Stock | |
| OSG-48139602 | M6 | 0.5 | 80 | 6 | 3 | 371 | £38.74 | In Stock | |
| OSG-48139601 | M6 | 0.75 | 80 | 6 | 3 | 371 | £36.98 | In Stock | |
| OSG-48139160 | M7 | 0.75 | 80 | 7 | 3 | 371 | £37.41 | In Stock | |
| OSG-48139604 | M8 | 0.75 | 80 | 8 | 3 | 371 | £39.00 | In Stock | |
| OSG-48139603 | M8 | 1 | 90 | 8 | 3 | 371 | £46.32 | In Stock | |
| OSG-48139605 | M9 | 1 | 90 | 9 | 3 | 371 | £44.59 | In Stock | |
| OSG-48139608 | M10 | 0.75 | 90 | 10 | 3 | 371 | £42.73 | In Stock | |
| OSG-48139607 | M10 | 1 | 90 | 10 | 3 | 371 | £52.70 | In Stock | |
| OSG-48139606 | M10 | 1.25 | 100 | 10 | 3 | 371 | £50.42 | In Stock | |
| OSG-48139157 | M6 | 0.5 | 80 | 4.5 | 3 | 374 | £56.97 | In Stock | |
| OSG-48139156 | M6 | 0.75 | 80 | 4.5 | 3 | 374 | £47.03 | In Stock | |
| OSG-48139163 | M8 | 0.75 | 80 | 6 | 3 | 374 | £49.76 | In Stock | |
| OSG-48139162 | M8 | 1 | 90 | 6 | 3 | 374 | £52.36 | In Stock | |
| OSG-48139167 | M9 | 1 | 90 | 7 | 3 | 374 | £56.97 | In Stock | |
| OSG-48139172 | M10 | 0.75 | 90 | 7 | 3 | 374 | £90.86 | In Stock | |
| OSG-48139171 | M10 | 1 | 90 | 7 | 3 | 374 | £55.26 | In Stock | |
| OSG-48139170 | M10 | 1.25 | 100 | 7 | 3 | 374 | £54.15 | In Stock | |
| OSG-48139176 | M11 | 1 | 90 | 8 | 3 | 374 | £107.28 | In Stock | |
| OSG-48139182 | M12 | 1 | 100 | 9 | 3 | 374 | £63.45 | In Stock | |
| OSG-48139181 | M12 | 1.25 | 100 | 9 | 3 | 374 | £63.45 | In Stock | |
| OSG-48139180 | M12 | 1.5 | 100 | 9 | 3 | 374 | £66.05 | In Stock | |
| OSG-48139194 | M14 | 1 | 100 | 11 | 3 | 374 | £95.03 | In Stock | |
| OSG-48139193 | M14 | 1.25 | 100 | 11 | 3 | 374 | £95.03 | In Stock | |
| OSG-48139192 | M14 | 1.5 | 100 | 11 | 3 | 374 | £81.71 | In Stock | |
| OSG-48139204 Viewing | M16 | 1 | 100 | 12 | 3 | 374 | £99.43 | In Stock | |
| OSG-48139203 | M16 | 1.5 | 100 | 12 | 3 | 374 | £94.73 | In Stock | |
| OSG-48139218 | M18 | 1 | 110 | 14 | 4 | 374 | £126.99 | In Stock | |
| OSG-48139216 | M18 | 1.5 | 110 | 14 | 4 | 374 | £109.16 | In Stock | |
| OSG-48139232 | M20 | 1 | 125 | 16 | 4 | 374 | £159.47 | In Stock | |
| OSG-48139230 | M20 | 1.5 | 125 | 16 | 4 | 374 | £136.85 | In Stock | |
| OSG-48139220 | M20 | 2 | 140 | 16 | 4 | 374 | £159.47 | In Stock | |
| OSG-48139241 | M22 | 1 | 125 | 18 | 4 | 374 | £174.37 | 1-2 days | |
| OSG-48139240 | M22 | 1.5 | 125 | 18 | 4 | 374 | £141.80 | In Stock | |
| OSG-48139239 | M22 | 2 | 140 | 18 | 4 | 374 | £174.37 | In Stock | |
| OSG-48139251 | M24 | 1 | 140 | 18 | 4 | 374 | £214.17 | In Stock | |
| OSG-48139250 | M24 | 1.5 | 140 | 18 | 4 | 374 | £186.20 | In Stock | |
| OSG-48139249 | M24 | 2 | 140 | 18 | 4 | 374 | £214.17 | In Stock |
