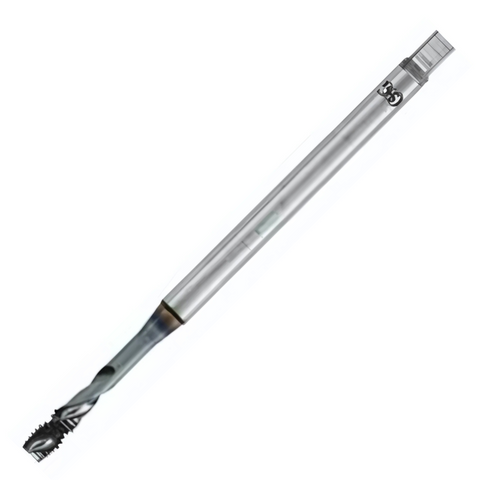

OSG Threading Tap Metric Fine A-Spiral Flute - Powder Metal Right Hand -TiCN Coated - Blind Holes DIN371 - M5 x 0.5
| Size | M5 |
| Pitch | 0.5 |
| Overall Length | 70 |
| Threading Length | 6.4 |
| Reach | 25 |
| Shank Diameter | 6 |
Learn more about Klarna
The OSG Threading Tap is a precision tool built for metric fine threading in blind holes. Designed for right-handed machines, it delivers reliable, clean threads with extended tool life thanks to a TiCN coating and a durable powder metal body.
- Size & pitch: M5 x 0.5 metric fine thread for tight, strong engagements in compact pockets
- A-Spiral flute: Optimized spiral flute for efficient chip evacuation in blind holes, reducing clogging and heat buildup
- Material: Powder metal construction provides enhanced wear resistance and longer tool life
- Coating: TiCN coating increases hardness and lowers friction for smoother cutting at higher speeds and temperatures
- Handedness: Right-hand thread designed for standard machining setups
- Application: DIN371 specification support for precise tapping in metric blind holes
This tap is engineered to minimize insert breakage and deliver consistent thread quality across the depth of blind holes. The combination of TiCN coating, powder metal durability, and the A-Spiral flute design translates to fewer tool changes, improved surface finish on threaded features, and dependable performance in challenging threading tasks.
| Size | M5 |
| Pitch | 0.5 |
| Overall Length | 70 |
| Threading Length | 6.4 |
| Reach | 25 |
| Shank Diameter | 6 |
| Square | 4.9 |
| Flutes | 3 |
| DIN | 371 |
| Thread Direction | Right Hand |
| Substrate | Powder Metal |
| Coating | TiCN |
| Style | Spiral Flute |
| Form | Metric |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: OSG Threading Taps Metric Fine A-Spiral Flute - Powder Metal Right Hand -TiCN Coated - Blind Holes
View full collection →You are viewing OSG-48139151. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Overall Length | Shank Diameter | Flutes | DIN | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-48139135 | M2.5 | 0.35 | 50 | 2.8 | 2 | 371 | £41.81 | In Stock | |
| OSG-48139137 | M2.6 | 0.35 | 50 | 2.8 | 2 | 371 | £39.25 | In Stock | |
| OSG-48139141 | M3 | 0.35 | 56 | 3.5 | 3 | 371 | £37.92 | In Stock | |
| OSG-48139143 | M3.5 | 0.35 | 56 | 4 | 3 | 371 | £47.33 | In Stock | |
| OSG-48139146 | M4 | 0.35 | 63 | 4.5 | 3 | 371 | £37.26 | In Stock | |
| OSG-48139145 | M4 | 0.5 | 63 | 4.5 | 3 | 371 | £55.91 | In Stock | |
| OSG-48139148 | M4.5 | 0.5 | 70 | 6 | 3 | 371 | £37.92 | In Stock | |
| OSG-48139151 Viewing | M5 | 0.5 | 70 | 6 | 3 | 371 | £42.58 | In Stock | |
| OSG-48139602 | M6 | 0.5 | 80 | 6 | 3 | 371 | £38.74 | In Stock | |
| OSG-48139601 | M6 | 0.75 | 80 | 6 | 3 | 371 | £36.98 | In Stock | |
| OSG-48139160 | M7 | 0.75 | 80 | 7 | 3 | 371 | £37.41 | In Stock | |
| OSG-48139604 | M8 | 0.75 | 80 | 8 | 3 | 371 | £39.00 | In Stock | |
| OSG-48139603 | M8 | 1 | 90 | 8 | 3 | 371 | £46.32 | In Stock | |
| OSG-48139605 | M9 | 1 | 90 | 9 | 3 | 371 | £44.59 | In Stock | |
| OSG-48139608 | M10 | 0.75 | 90 | 10 | 3 | 371 | £42.73 | In Stock | |
| OSG-48139607 | M10 | 1 | 90 | 10 | 3 | 371 | £52.70 | In Stock | |
| OSG-48139606 | M10 | 1.25 | 100 | 10 | 3 | 371 | £50.42 | In Stock | |
| OSG-48139157 | M6 | 0.5 | 80 | 4.5 | 3 | 374 | £56.97 | In Stock | |
| OSG-48139156 | M6 | 0.75 | 80 | 4.5 | 3 | 374 | £47.03 | In Stock | |
| OSG-48139163 | M8 | 0.75 | 80 | 6 | 3 | 374 | £49.76 | In Stock | |
| OSG-48139162 | M8 | 1 | 90 | 6 | 3 | 374 | £52.36 | In Stock | |
| OSG-48139167 | M9 | 1 | 90 | 7 | 3 | 374 | £56.97 | In Stock | |
| OSG-48139172 | M10 | 0.75 | 90 | 7 | 3 | 374 | £90.86 | In Stock | |
| OSG-48139171 | M10 | 1 | 90 | 7 | 3 | 374 | £55.26 | In Stock | |
| OSG-48139170 | M10 | 1.25 | 100 | 7 | 3 | 374 | £54.15 | In Stock | |
| OSG-48139176 | M11 | 1 | 90 | 8 | 3 | 374 | £107.28 | In Stock | |
| OSG-48139182 | M12 | 1 | 100 | 9 | 3 | 374 | £63.45 | In Stock | |
| OSG-48139181 | M12 | 1.25 | 100 | 9 | 3 | 374 | £63.45 | In Stock | |
| OSG-48139180 | M12 | 1.5 | 100 | 9 | 3 | 374 | £66.05 | In Stock | |
| OSG-48139194 | M14 | 1 | 100 | 11 | 3 | 374 | £95.03 | In Stock | |
| OSG-48139193 | M14 | 1.25 | 100 | 11 | 3 | 374 | £95.03 | In Stock | |
| OSG-48139192 | M14 | 1.5 | 100 | 11 | 3 | 374 | £81.71 | In Stock | |
| OSG-48139204 | M16 | 1 | 100 | 12 | 3 | 374 | £99.43 | In Stock | |
| OSG-48139203 | M16 | 1.5 | 100 | 12 | 3 | 374 | £94.73 | In Stock | |
| OSG-48139218 | M18 | 1 | 110 | 14 | 4 | 374 | £126.99 | In Stock | |
| OSG-48139216 | M18 | 1.5 | 110 | 14 | 4 | 374 | £109.16 | In Stock | |
| OSG-48139232 | M20 | 1 | 125 | 16 | 4 | 374 | £159.47 | In Stock | |
| OSG-48139230 | M20 | 1.5 | 125 | 16 | 4 | 374 | £136.85 | In Stock | |
| OSG-48139220 | M20 | 2 | 140 | 16 | 4 | 374 | £159.47 | In Stock | |
| OSG-48139241 | M22 | 1 | 125 | 18 | 4 | 374 | £174.37 | 1-2 days | |
| OSG-48139240 | M22 | 1.5 | 125 | 18 | 4 | 374 | £141.80 | In Stock | |
| OSG-48139239 | M22 | 2 | 140 | 18 | 4 | 374 | £174.37 | In Stock | |
| OSG-48139251 | M24 | 1 | 140 | 18 | 4 | 374 | £214.17 | In Stock | |
| OSG-48139250 | M24 | 1.5 | 140 | 18 | 4 | 374 | £186.20 | In Stock | |
| OSG-48139249 | M24 | 2 | 140 | 18 | 4 | 374 | £214.17 | In Stock |
