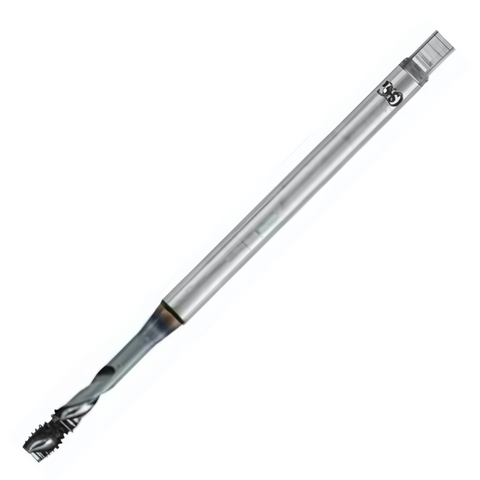

OSG Threading Tap Metric Fine A-Spiral Flute - FORM E Powder Metal Right Hand -TiCN Coated - Blind Holes DIN371 - M10 x 1
| Size | M10 |
| Pitch | 1 |
| Overall Length | 90 |
| Threading Length | 12 |
| Reach | 35 |
| Shank Diameter | 10 |
Learn more about Klarna
The OSG Threading Tap is a precision tool engineered for accurate blind-hole threading in metric fine applications. Designed for machinists who demand clean, repeatable threads in challenging interiors, this right-hand tap features FORM E geometry, a TiCN-coated powder metal body, and a compact M10 x 1 size for reliable performance in DIN371 processes.
- Size and Thread: M10 x 1 metric fine thread optimized for blind-hole tapping per DIN371
- Material: Powder metal for enhanced wear resistance, toughness, and long tool life
- Coating: TiCN coating increases hardness and lowers friction to extend cutting longevity
- Flute Design: A‑Spiral flute promotes efficient chip evacuation at high speeds
- Geometry: FORM E geometry delivers smooth cutting action and higher-quality threads
- Direction: Right-hand threading for standard, widely used applications
- Application: Ideal for blind-hole threading in metalwork, including precision assemblies
This combination of FORM E geometry, powder-metal substrate, and TiCN coating translates to consistent thread quality and reduced cycle times in demanding environments. The A‑spiral flute design minimizes chip packing in blind holes, helping maintain tool life and surface finish even on deeper tapped features. Choose this tap when you need reliable performance for metric fine threads in blind-hole applications where precision matters.
| Size | M10 |
| Pitch | 1 |
| Overall Length | 90 |
| Threading Length | 12 |
| Reach | 35 |
| Shank Diameter | 10 |
| Square | 8 |
| Flutes | 3 |
| DIN | 371 |
| Thread Direction | Right Hand |
| Substrate | Powder Metal |
| Coating | TiCN |
| Style | Spiral Flute |
| Form | Metric |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: OSG Threading Taps Metric Fine A-Spiral Flute - FORM E Powder Metal Right Hand -TiCN Coated - Blind Holes
View full collection →You are viewing OSG-48203607. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Overall Length | Shank Diameter | Flutes | DIN | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-48203135 | M2.5 | 0.35 | 50 | 2.8 | 2 | 371 | £38.90 | 1-2 days | |
| OSG-48203137 | M2.6 | 0.35 | 50 | 2.8 | 2 | 371 | £36.48 | 1-2 days | |
| OSG-48203141 | M3 | 0.35 | 56 | 3.5 | 3 | 371 | £34.06 | 1-2 days | |
| OSG-48203143 | M3.5 | 0.35 | 56 | 4 | 3 | 371 | £51.83 | 1-2 days | |
| OSG-48203146 | M4 | 0.35 | 63 | 4.5 | 3 | 371 | £35.43 | 1-2 days | |
| OSG-48203145 | M4 | 0.5 | 63 | 4.5 | 3 | 371 | £35.43 | 1-2 days | |
| OSG-48203148 | M4.5 | 0.5 | 70 | 6 | 3 | 371 | £46.89 | 1-2 days | |
| OSG-48203151 | M5 | 0.5 | 70 | 6 | 3 | 371 | £36.07 | 1-2 days | |
| OSG-48203602 | M6 | 0.5 | 80 | 6 | 3 | 371 | £43.11 | 1-2 days | |
| OSG-48203601 | M6 | 0.75 | 80 | 6 | 3 | 371 | £43.11 | 1-2 days | |
| OSG-48203160 | M7 | 0.75 | 80 | 7 | 3 | 371 | £49.10 | 1-2 days | |
| OSG-48203604 | M8 | 0.75 | 80 | 8 | 3 | 371 | £45.53 | 1-2 days | |
| OSG-48203603 | M8 | 1 | 90 | 8 | 3 | 371 | £48.06 | 1-2 days | |
| OSG-48203605 | M9 | 1 | 90 | 9 | 3 | 371 | £56.68 | 1-2 days | |
| OSG-48203608 | M10 | 0.75 | 90 | 10 | 3 | 371 | £53.10 | 1-2 days | |
| OSG-48203607 Viewing | M10 | 1 | 90 | 10 | 3 | 371 | £50.68 | 1-2 days | |
| OSG-48203606 | M10 | 1.25 | 100 | 10 | 3 | 371 | £49.73 | 1-2 days | |
| OSG-48203157 | M6 | 0.5 | 80 | 4.5 | 3 | 374 | £43.11 | 1-2 days | |
| OSG-48203156 | M6 | 0.75 | 80 | 4.5 | 3 | 374 | £43.11 | 1-2 days | |
| OSG-48203163 | M8 | 0.75 | 80 | 6 | 3 | 374 | £45.53 | 1-2 days | |
| OSG-48203162 | M8 | 1 | 90 | 6 | 3 | 374 | £48.06 | 1-2 days | |
| OSG-48203167 | M9 | 1 | 90 | 7 | 3 | 374 | £56.68 | 1-2 days | |
| OSG-48203172 | M10 | 0.75 | 90 | 7 | 3 | 374 | £53.10 | 1-2 days | |
| OSG-48203171 | M10 | 1 | 90 | 7 | 3 | 374 | £50.68 | 1-2 days | |
| OSG-48203170 | M10 | 1.25 | 100 | 7 | 3 | 374 | £49.73 | 1-2 days | |
| OSG-48203176 | M11 | 1 | 90 | 8 | 3 | 374 | £99.77 | 1-2 days | |
| OSG-48203182 | M12 | 1 | 100 | 9 | 3 | 374 | £58.15 | 1-2 days | |
| OSG-48203181 | M12 | 1.25 | 100 | 9 | 3 | 374 | £58.15 | 1-2 days | |
| OSG-48203180 | M12 | 1.5 | 100 | 9 | 3 | 374 | £60.67 | 1-2 days | |
| OSG-48203194 | M14 | 1 | 100 | 11 | 3 | 374 | £88.31 | 1-2 days | |
| OSG-48203193 | M14 | 1.25 | 100 | 11 | 3 | 374 | £88.31 | 1-2 days | |
| OSG-48203192 | M14 | 1.5 | 100 | 11 | 3 | 374 | £74.95 | 1-2 days | |
| OSG-48203204 | M16 | 1 | 100 | 12 | 3 | 374 | £92.52 | 1-2 days | |
| OSG-48203203 | M16 | 1.5 | 100 | 12 | 3 | 374 | £86.74 | 1-2 days | |
| OSG-48203218 | M18 | 1 | 110 | 14 | 4 | 374 | £118.19 | 1-2 days | |
| OSG-48203216 | M18 | 1.5 | 110 | 14 | 4 | 374 | £100.09 | 1-2 days | |
| OSG-48203232 | M20 | 1 | 125 | 16 | 4 | 374 | £148.25 | 1-2 days | |
| OSG-48203230 | M20 | 1.5 | 125 | 16 | 4 | 374 | £125.22 | 1-2 days | |
| OSG-48203220 | M20 | 2 | 140 | 16 | 4 | 374 | £148.25 | 1-2 days | |
| OSG-48203241 | M22 | 1 | 125 | 18 | 4 | 374 | £162.11 | 1-2 days | |
| OSG-48203240 | M22 | 1.5 | 125 | 18 | 4 | 374 | £129.95 | 1-2 days | |
| OSG-48203239 | M22 | 2 | 140 | 18 | 4 | 374 | £162.11 | 1-2 days | |
| OSG-48203251 | M24 | 1 | 140 | 18 | 4 | 374 | £199.02 | 1-2 days | |
| OSG-48203250 | M24 | 1.5 | 140 | 18 | 4 | 374 | £170.54 | 1-2 days | |
| OSG-48203249 | M24 | 2 | 140 | 18 | 4 | 374 | £199.02 | 1-2 days |
