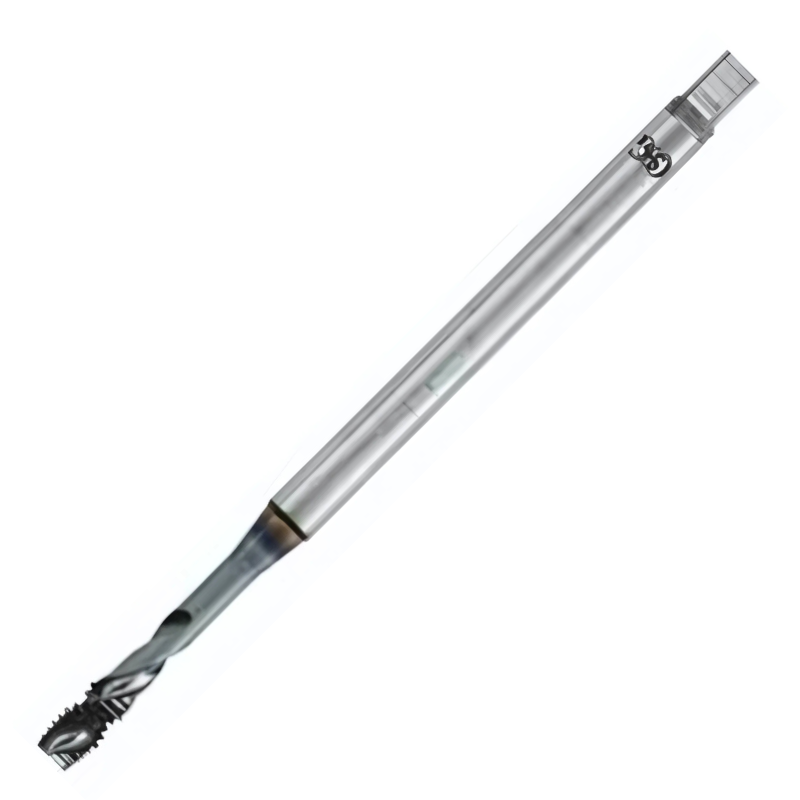

OSG Threading Taps Metric Fine A-Spiral Flute
FORM E Powder Metal Right Hand -TiCN Coated - Blind Holes
The OSG Threading Taps Metric Fine A-Spiral Flute - FORM E Powder Metal Right Hand - TiCN Coated - Blind Holes are engineered for precision threading in fine metric applications, specifically for blind holes. These taps feature a FORM E geometry, providing optimal cutting performance and improved thread quality. Made from advanced powder metal, they offer superior wear resistance and durability. The TiCN coating enhances the tool's hardness and reduces friction, increasing tool life and efficiency. With the spiral flute design, these taps excel at chip evacuation, making them ideal for high-speed, high-precision tapping operations in blind hole threads.
Browse all 45 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Size | Pitch | Overall Length | Shank Diameter | Flutes | DIN | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-48203135 | M2.5 | 0.35 | 50 | 2.8 | 2 | 371 | £38.90 | 1-2 days |
|
| OSG-48203137 | M2.6 | 0.35 | 50 | 2.8 | 2 | 371 | £36.48 | 1-2 days |
|
| OSG-48203141 | M3 | 0.35 | 56 | 3.5 | 3 | 371 | £34.06 | 1-2 days |
|
| OSG-48203143 | M3.5 | 0.35 | 56 | 4 | 3 | 371 | £51.83 | 1-2 days |
|
| OSG-48203146 | M4 | 0.35 | 63 | 4.5 | 3 | 371 | £35.43 | 1-2 days |
|
| OSG-48203145 | M4 | 0.5 | 63 | 4.5 | 3 | 371 | £35.43 | 1-2 days |
|
| OSG-48203148 | M4.5 | 0.5 | 70 | 6 | 3 | 371 | £46.89 | 1-2 days |
|
| OSG-48203151 | M5 | 0.5 | 70 | 6 | 3 | 371 | £36.07 | 1-2 days |
|
| OSG-48203602 | M6 | 0.5 | 80 | 6 | 3 | 371 | £43.11 | 1-2 days |
|
| OSG-48203601 | M6 | 0.75 | 80 | 6 | 3 | 371 | £43.11 | 1-2 days |
|
| OSG-48203160 | M7 | 0.75 | 80 | 7 | 3 | 371 | £49.10 | 1-2 days |
|
| OSG-48203604 | M8 | 0.75 | 80 | 8 | 3 | 371 | £45.53 | 1-2 days |
|
| OSG-48203603 | M8 | 1 | 90 | 8 | 3 | 371 | £48.06 | 1-2 days |
|
| OSG-48203605 | M9 | 1 | 90 | 9 | 3 | 371 | £56.68 | 1-2 days |
|
| OSG-48203608 | M10 | 0.75 | 90 | 10 | 3 | 371 | £53.10 | 1-2 days |
|
| OSG-48203607 | M10 | 1 | 90 | 10 | 3 | 371 | £50.68 | 1-2 days |
|
| OSG-48203606 | M10 | 1.25 | 100 | 10 | 3 | 371 | £49.73 | 1-2 days |
|
| OSG-48203157 | M6 | 0.5 | 80 | 4.5 | 3 | 374 | £43.11 | 1-2 days |
|
| OSG-48203156 | M6 | 0.75 | 80 | 4.5 | 3 | 374 | £43.11 | 1-2 days |
|
| OSG-48203163 | M8 | 0.75 | 80 | 6 | 3 | 374 | £45.53 | 1-2 days |
|
| OSG-48203162 | M8 | 1 | 90 | 6 | 3 | 374 | £48.06 | 1-2 days |
|
| OSG-48203167 | M9 | 1 | 90 | 7 | 3 | 374 | £56.68 | 1-2 days |
|
| OSG-48203172 | M10 | 0.75 | 90 | 7 | 3 | 374 | £53.10 | 1-2 days |
|
| OSG-48203171 | M10 | 1 | 90 | 7 | 3 | 374 | £50.68 | 1-2 days |
|
| OSG-48203170 | M10 | 1.25 | 100 | 7 | 3 | 374 | £49.73 | 1-2 days |
|
| OSG-48203176 | M11 | 1 | 90 | 8 | 3 | 374 | £99.77 | 1-2 days |
|
| OSG-48203182 | M12 | 1 | 100 | 9 | 3 | 374 | £58.15 | 1-2 days |
|
| OSG-48203181 | M12 | 1.25 | 100 | 9 | 3 | 374 | £58.15 | 1-2 days |
|
| OSG-48203180 | M12 | 1.5 | 100 | 9 | 3 | 374 | £60.67 | 1-2 days |
|
| OSG-48203194 | M14 | 1 | 100 | 11 | 3 | 374 | £88.31 | 1-2 days |
|
| OSG-48203193 | M14 | 1.25 | 100 | 11 | 3 | 374 | £88.31 | 1-2 days |
|
| OSG-48203192 | M14 | 1.5 | 100 | 11 | 3 | 374 | £74.95 | 1-2 days |
|
| OSG-48203204 | M16 | 1 | 100 | 12 | 3 | 374 | £92.52 | 1-2 days |
|
| OSG-48203203 | M16 | 1.5 | 100 | 12 | 3 | 374 | £86.74 | 1-2 days |
|
| OSG-48203218 | M18 | 1 | 110 | 14 | 4 | 374 | £118.19 | 1-2 days |
|
| OSG-48203216 | M18 | 1.5 | 110 | 14 | 4 | 374 | £100.09 | 1-2 days |
|
| OSG-48203232 | M20 | 1 | 125 | 16 | 4 | 374 | £148.25 | 1-2 days |
|
| OSG-48203230 | M20 | 1.5 | 125 | 16 | 4 | 374 | £125.22 | 1-2 days |
|
| OSG-48203220 | M20 | 2 | 140 | 16 | 4 | 374 | £148.25 | 1-2 days |
|
| OSG-48203241 | M22 | 1 | 125 | 18 | 4 | 374 | £162.11 | 1-2 days |
|
| OSG-48203240 | M22 | 1.5 | 125 | 18 | 4 | 374 | £129.95 | 1-2 days |
|
| OSG-48203239 | M22 | 2 | 140 | 18 | 4 | 374 | £162.11 | 1-2 days |
|
| OSG-48203251 | M24 | 1 | 140 | 18 | 4 | 374 | £199.02 | 1-2 days |
|
| OSG-48203250 | M24 | 1.5 | 140 | 18 | 4 | 374 | £170.54 | 1-2 days |
|
| OSG-48203249 | M24 | 2 | 140 | 18 | 4 | 374 | £199.02 | 1-2 days |
|
