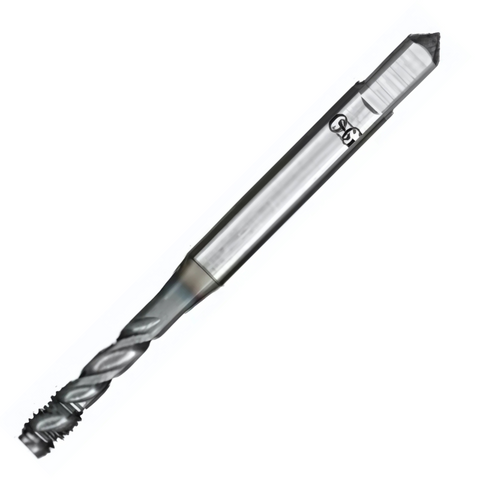

OSG Threading Tap Metric Fine A-Spiral Flute - FORM E Powder Metal Right Hand -TiCN Coated - Blind Holes DIN374 - M22 x 1.5
| Size | M22 |
| Pitch | 1.5 |
| Overall Length | 125 |
| Threading Length | 16 |
| Shank Diameter | 18 |
| Square | 14.5 |
Learn more about Klarna
The OSG Threading Tap is a metric-fine, right-hand tap designed specifically for blind-hole applications. With FORM E geometry, TiCN-coated powder-metal construction, and an A-Spiral flute, it delivers precise, clean threads in hard-to-reach locations.
- Size and pitch: M22 x 1.5 metric fine thread for blind-hole tapping
- Flute design: A-Spiral flute for efficient chip evacuation and reduced clogging
- Material: Powder-metal substrate for superior wear resistance and durability
- Coating: TiCN coating increases hardness and lowers friction
- Geometry: FORM E geometry optimizes cutting action and thread quality
- Direction: Right-hand threading for standard production setups
- Application: Engineered for blind holes and aligned with DIN374 specifications
By combining these features, this tap supports consistent, high-quality threads in blind holes with fewer passes, reduced wear and heat due to the TiCN coating, and faster, cleaner tapping thanks to the spiral flute’s efficient chip evacuation. The result is longer tool life, higher productivity, and reliable performance in precision assemblies that rely on DIN374 blind-hole threads.
| Size | M22 |
| Pitch | 1.5 |
| Overall Length | 125 |
| Threading Length | 16 |
| Shank Diameter | 18 |
| Square | 14.5 |
| Flutes | 4 |
| DIN | 374 |
| Thread Direction | Right Hand |
| Substrate | Powder Metal |
| Coating | TiCN |
| Style | Spiral Flute |
| Form | Metric |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: OSG Threading Taps Metric Fine A-Spiral Flute - FORM E Powder Metal Right Hand -TiCN Coated - Blind Holes
View full collection →You are viewing OSG-48203240. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Overall Length | Shank Diameter | Flutes | DIN | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-48203135 | M2.5 | 0.35 | 50 | 2.8 | 2 | 371 | £38.90 | 1-2 days | |
| OSG-48203137 | M2.6 | 0.35 | 50 | 2.8 | 2 | 371 | £36.48 | 1-2 days | |
| OSG-48203141 | M3 | 0.35 | 56 | 3.5 | 3 | 371 | £34.06 | 1-2 days | |
| OSG-48203143 | M3.5 | 0.35 | 56 | 4 | 3 | 371 | £51.83 | 1-2 days | |
| OSG-48203146 | M4 | 0.35 | 63 | 4.5 | 3 | 371 | £35.43 | 1-2 days | |
| OSG-48203145 | M4 | 0.5 | 63 | 4.5 | 3 | 371 | £35.43 | 1-2 days | |
| OSG-48203148 | M4.5 | 0.5 | 70 | 6 | 3 | 371 | £46.89 | 1-2 days | |
| OSG-48203151 | M5 | 0.5 | 70 | 6 | 3 | 371 | £36.07 | 1-2 days | |
| OSG-48203602 | M6 | 0.5 | 80 | 6 | 3 | 371 | £43.11 | 1-2 days | |
| OSG-48203601 | M6 | 0.75 | 80 | 6 | 3 | 371 | £43.11 | 1-2 days | |
| OSG-48203160 | M7 | 0.75 | 80 | 7 | 3 | 371 | £49.10 | 1-2 days | |
| OSG-48203604 | M8 | 0.75 | 80 | 8 | 3 | 371 | £45.53 | 1-2 days | |
| OSG-48203603 | M8 | 1 | 90 | 8 | 3 | 371 | £48.06 | 1-2 days | |
| OSG-48203605 | M9 | 1 | 90 | 9 | 3 | 371 | £56.68 | 1-2 days | |
| OSG-48203608 | M10 | 0.75 | 90 | 10 | 3 | 371 | £53.10 | 1-2 days | |
| OSG-48203607 | M10 | 1 | 90 | 10 | 3 | 371 | £50.68 | 1-2 days | |
| OSG-48203606 | M10 | 1.25 | 100 | 10 | 3 | 371 | £49.73 | 1-2 days | |
| OSG-48203157 | M6 | 0.5 | 80 | 4.5 | 3 | 374 | £43.11 | 1-2 days | |
| OSG-48203156 | M6 | 0.75 | 80 | 4.5 | 3 | 374 | £43.11 | 1-2 days | |
| OSG-48203163 | M8 | 0.75 | 80 | 6 | 3 | 374 | £45.53 | 1-2 days | |
| OSG-48203162 | M8 | 1 | 90 | 6 | 3 | 374 | £48.06 | 1-2 days | |
| OSG-48203167 | M9 | 1 | 90 | 7 | 3 | 374 | £56.68 | 1-2 days | |
| OSG-48203172 | M10 | 0.75 | 90 | 7 | 3 | 374 | £53.10 | 1-2 days | |
| OSG-48203171 | M10 | 1 | 90 | 7 | 3 | 374 | £50.68 | 1-2 days | |
| OSG-48203170 | M10 | 1.25 | 100 | 7 | 3 | 374 | £49.73 | 1-2 days | |
| OSG-48203176 | M11 | 1 | 90 | 8 | 3 | 374 | £99.77 | 1-2 days | |
| OSG-48203182 | M12 | 1 | 100 | 9 | 3 | 374 | £58.15 | 1-2 days | |
| OSG-48203181 | M12 | 1.25 | 100 | 9 | 3 | 374 | £58.15 | 1-2 days | |
| OSG-48203180 | M12 | 1.5 | 100 | 9 | 3 | 374 | £60.67 | 1-2 days | |
| OSG-48203194 | M14 | 1 | 100 | 11 | 3 | 374 | £88.31 | 1-2 days | |
| OSG-48203193 | M14 | 1.25 | 100 | 11 | 3 | 374 | £88.31 | 1-2 days | |
| OSG-48203192 | M14 | 1.5 | 100 | 11 | 3 | 374 | £74.95 | 1-2 days | |
| OSG-48203204 | M16 | 1 | 100 | 12 | 3 | 374 | £92.52 | 1-2 days | |
| OSG-48203203 | M16 | 1.5 | 100 | 12 | 3 | 374 | £86.74 | 1-2 days | |
| OSG-48203218 | M18 | 1 | 110 | 14 | 4 | 374 | £118.19 | 1-2 days | |
| OSG-48203216 | M18 | 1.5 | 110 | 14 | 4 | 374 | £100.09 | 1-2 days | |
| OSG-48203232 | M20 | 1 | 125 | 16 | 4 | 374 | £148.25 | 1-2 days | |
| OSG-48203230 | M20 | 1.5 | 125 | 16 | 4 | 374 | £125.22 | 1-2 days | |
| OSG-48203220 | M20 | 2 | 140 | 16 | 4 | 374 | £148.25 | 1-2 days | |
| OSG-48203241 | M22 | 1 | 125 | 18 | 4 | 374 | £162.11 | 1-2 days | |
| OSG-48203240 Viewing | M22 | 1.5 | 125 | 18 | 4 | 374 | £129.95 | 1-2 days | |
| OSG-48203239 | M22 | 2 | 140 | 18 | 4 | 374 | £162.11 | 1-2 days | |
| OSG-48203251 | M24 | 1 | 140 | 18 | 4 | 374 | £199.02 | 1-2 days | |
| OSG-48203250 | M24 | 1.5 | 140 | 18 | 4 | 374 | £170.54 | 1-2 days | |
| OSG-48203249 | M24 | 2 | 140 | 18 | 4 | 374 | £199.02 | 1-2 days |
