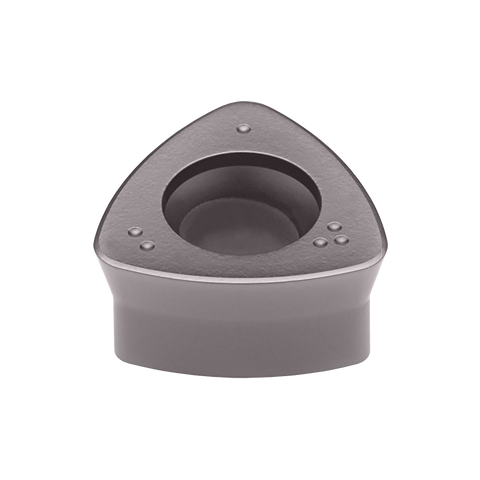

Palbit Indexable Milling Insert - for High Feed Milling - WDMW 120420-T PH7920
| ISO Code | WDMW 120420-T PH7920 |
| Insert Size and Shape | WD1204 |
| Product Line | HIFEED 50560 |
| Grade | PH7920 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 3 |
Learn more about Klarna
The Palbit WDMW indexable milling insert is engineered for high-feed milling applications, delivering maximum metal removal with precision and durability for demanding machining environments. It’s designed to maintain stability and control at aggressive feed rates.
- Product Code: WDMW 120420-T PH7920
- Geometry: Specialized geometry for high-feed milling that promotes efficient chip flow and cutting stability in demanding tasks.
- Material: Solid carbide construction offers wear resistance and long tool life in tough materials.
- Chip Control: Optimized edge design provides excellent chip control, reducing recutting for smoother operation at high feeds.
- Durability & Stability: Engineered to resist vibration and maintain precision during aggressive milling operations.
Designed for reliability in high-speed, high-feed environments, this insert enables greater material removal per pass while preserving dimensional accuracy and tool life, helping you maximize productivity on demanding milling jobs.
| ISO Code | WDMW 120420-T PH7920 |
| Insert Size and Shape | WD1204 |
| Product Line | HIFEED 50560 |
| Grade | PH7920 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 3 |
| Operation Type (CTPT) | High Feed Milling |
| Tolerance Class Insert (TCINS) | M |
| Insert Shape Code (SC) | W |
| Inscribed Circle Diameter (IC) | 12 |
| Insert Thickness (S) | 4.76 |
| Corner Radius (RE) | 2 |
| Cutting Edge Effective Length (LE) | 11.9 |
| Insert Length (INSL) | 0 |
| Fixing Hole Diameter (D1) | 5 |
| Chip Breaker (CBMD) | -T |
| Wiper Edge Length (BS) | 0 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Palbit WNMW Inserts
View full collection →You are viewing PAL-1111123G4. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1111123G4 Viewing | WDMW 120420-T PH7920 | WD1204 | HIFEED 50560 | W | 4.76 | £10.28 | 5 days | |
| PAL-1111123G6 | WDMW 120420-T PH7740 | WD1204 | HIFEED 50560 | W | 4.76 | £10.28 | 5 days | |
| PAL-112114878 | WNMW 1207-SP PH6125 | WN1207 | HIFEED 50060 | W | 7 | £11.18 | 5 days | |
| PAL-1121148G1 | WNMW 1207-SP PH7910 | WN1207 | HIFEED 50060 | W | 7 | £11.18 | 5 days | |
| PAL-112114886 | WNMW 1207-SP PH6135 | WN1207 | HIFEED 50060 | W | 7 | £11.18 | 5 days | |
| PAL-1121148G4 | WNMW 1207-SP PH7920 | WN1207 | HIFEED 50060 | W | 7 | £11.18 | 5 days |
