Palbit Indexable Milling Insert - for High Feed Milling - WDMW 120420-T PH7740
| ISO Code | WDMW 120420-T PH7740 |
| Insert Size and Shape | WD1204 |
| Product Line | HIFEED 50560 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 3 |
Learn more about Klarna

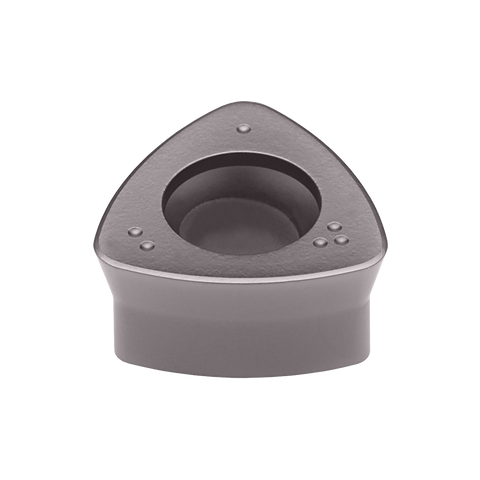

The Palbit WDMW indexable milling insert is engineered for high feed milling applications that demand maximum metal removal with precision and durability. Built with specialized geometry and a robust carbide body, it delivers reliable chip control and stability in aggressive milling tasks.
- Part number: WDMW 120420-T PH7740
- Geometry: Specially designed for high feed milling to enable efficient material removal and stable cutting
- Material: High-strength carbide construction built to endure demanding milling conditions
- Chip control: Excellent chip control to minimize buildup and maintain smooth operation under aggressive feeds
- Grade designation: PH7740
Benefits: This insert supports higher productivity by maximizing material removal per pass while maintaining dimensional precision. Its optimized geometry and carbide rigidity promote stable cutting and reduced chatter in aggressive milling, helping achieve cleaner surfaces and longer tool life. The combination of precise chip handling and durable construction minimizes downtime and enhances overall milling efficiency.
| ISO Code | WDMW 120420-T PH7740 |
| Insert Size and Shape | WD1204 |
| Product Line | HIFEED 50560 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 3 |
| Operation Type (CTPT) | High Feed Milling |
| Tolerance Class Insert (TCINS) | M |
| Insert Shape Code (SC) | W |
| Inscribed Circle Diameter (IC) | 12 |
| Insert Thickness (S) | 4.76 |
| Corner Radius (RE) | 2 |
| Cutting Edge Effective Length (LE) | 11.9 |
| Insert Length (INSL) | 0 |
| Fixing Hole Diameter (D1) | 5 |
| Chip Breaker (CBMD) | -T |
| Wiper Edge Length (BS) | 0 |
