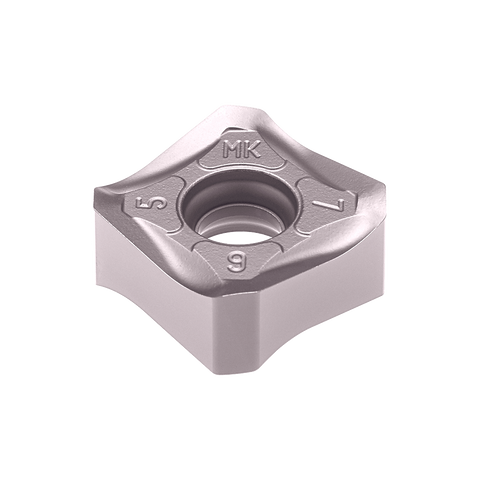

Palbit Indexable Milling Insert - for Face Milling - SNHX 1606 ANER-MK PH5740

Palbit Indexable Milling Insert - for Face Milling - SNHX 1606 ANER-MK PH5740

SKU:PAL-1111953L9
The Palbit SNHX indexable milling insert is engineered for high-efficiency face milling, delivering excellent surface finish and consistent machining performance. Built with premium carbide and op... Read more ↓
Material Compatibility
K
Specification
ISO CodeSNHX 1606 ANER-MK PH5740
Insert Size and ShapeSN1606
Product LinePLUS 91245
GradePH5740
HandRight
Cutting Edge Count (CEDC)8
View all specifications ↓
£19.19
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit SNHX indexable milling insert is engineered for high-efficiency face milling, delivering excellent surface finish and consistent machining performance. Built with premium carbide and optimized cutting geometry, the SNHX insert ensures smooth chip evacuation and long tool life across a wide range of materials.

  • Optimized cutting geometry: Enables efficient material removal and a consistently smooth surface finish across passes.
  • Premium carbide construction: Delivers durability and long tool life across a broad range of materials, helping you reduce tool changes and downtime.
  • Reliable chip evacuation: Promotes smooth chip flow to minimize clogging and maintain stable milling performance in challenging workpieces.

Designed to integrate into standard face-milling setups, this insert helps you finish parts faster with reliable results, improves workflow consistency, and supports higher throughput without compromising surface quality.

ISO Code SNHX 1606 ANER-MK PH5740
Insert Size and Shape SN1606
Product Line PLUS 91245
Grade PH5740
Hand Right
Cutting Edge Count (CEDC) 8
Operation Type (CTPT) Face Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) S
Inscribed Circle Diameter (IC) 6
Insert Thickness (S) 6.35
Corner Radius (RE) 0.8
Cutting Edge Effective Length (LE) 12.5
Fixing Hole Diameter (D1) 6
Chip Breaker (CBMD) MK
Wiper Edge Length (BS) 2.2
