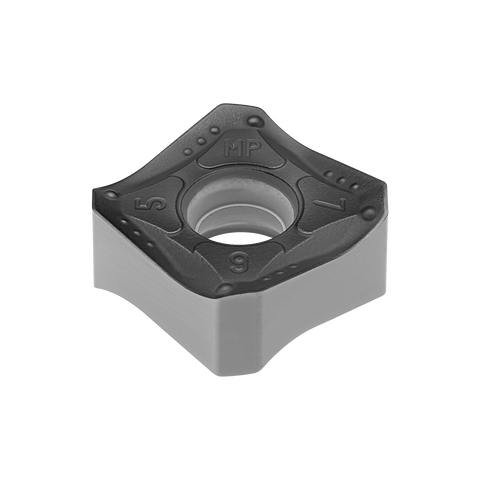

Palbit Indexable Milling Insert - for Face Milling - SNHX 1206 ANSN-MP PHS740
Palbit Vendor Logo

Palbit Indexable Milling Insert - for Face Milling - SNHX 1206 ANSN-MP PHS740

PAL-1111502T9

Availability: 5 days Estimated lead time, subject to availability

The Palbit SNHX indexable milling insert is engineered for high-efficiency face milling operations, delivering excellent surface finish and consistent machining performance. Built with premium c... Read more

Specification Value
ISO Code SNHX 1206 ANSN-MP PHS740
Insert Size and Shape SN1206
Product Line PLUS 90845;PLUS 90945
Grade PHS740
Hand Right
Cutting Edge Count (CEDC) 8
Operation Type (CTPT) Face Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) S
Inscribed Circle Diameter (IC) 12.7
Insert Thickness (S) 6.35
Corner Radius (RE) 0.8
Cutting Edge Effective Length (LE) 9.3
Fixing Hole Diameter (D1) 4.6
Chip Breaker (CBMD) MP
Wiper Edge Length (BS) 2
Steel

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

The Palbit SNHX indexable milling insert is engineered for high-efficiency face milling operations, delivering excellent surface finish and consistent machining performance. Built with premium carbide and optimized cutting geometry, the SNHX insert ensures smooth chip evacuation and long tool life across a wide range of materials.
