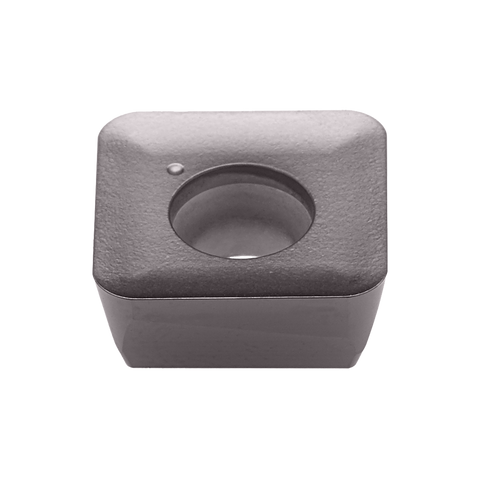

Palbit Indexable Milling Insert - for High Feed Milling - SOET 13M520-MS PH7740
| ISO Code | SOET 13M520-MS PH7740 |
| Insert Size and Shape | SO13M5 |
| Product Line | HIFEED 06690 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
Learn more about Klarna
The Palbit SOET indexable milling insert is designed for high feed milling, delivering high metal removal rates while preserving precision and tool life. Built with a robust geometry and a secure clamping design, it excels in aggressive machining and demanding production environments.
- Model: SOET 13M520-MS
- Designed for: High feed milling applications
- Geometry: Robust geometry for stability in demanding cuts
- Clamping: Secure clamping design for reliable insert seating
- Performance: Exceptional metal removal rates with maintained accuracy and tool life
- Application: Suited for aggressive machining and demanding production environments
This insert helps manufacturers boost productivity by combining aggressive material removal with dependable precision. The secure clamping reduces insert movement for consistent cuts, while the robust geometry supports longer tool life in tough production runs. Ideal for shops performing heavy milling operations that require reliable, repeatable performance.
| ISO Code | SOET 13M520-MS PH7740 |
| Insert Size and Shape | SO13M5 |
| Product Line | HIFEED 06690 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
| Operation Type (CTPT) | High Feed Milling |
| Tolerance Class Insert (TCINS) | E |
| Insert Shape Code (SC) | S |
| Inscribed Circle Diameter (IC) | 12.43 |
| Insert Thickness (S) | 5 |
| Corner Radius (RE) | 2 |
| Cutting Edge Effective Length (LE) | 0 |
| Insert Length (INSL) | 0 |
| Fixing Hole Diameter (D1) | 4.5 |
| Chip Breaker (CBMD) | MS |
| Wiper Edge Length (BS) | 0 |
