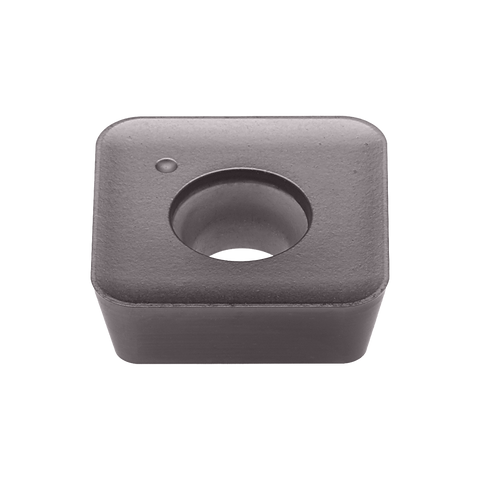

Palbit Indexable Milling Insert - for High Feed Milling - SOET 160520-MS PH7740
| ISO Code | SOET 160520-MS PH7740 |
| Insert Size and Shape | SO1605 |
| Product Line | HIFEED 06815 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
Learn more about Klarna
Palbit SOET indexable milling insert is engineered for high feed milling, delivering strong material removal rates while preserving accuracy and tool life. Built for aggressive machining and demanding production environments, it combines a robust geometry with a secure clamping design to keep inserts stable under challenging cuts.
- Model / Code: SOET 160520-MS PH7740
- Primary Application: High feed milling
- Geometry: Robust design optimized for stability during aggressive cutting
- Clamping: Secure clamping system for reliable insert seating and minimal movement
- Grade: PH7740
This combination enables efficient milling while maintaining tight tolerances and tool life, supporting reliable performance in demanding production environments. The insert’s secure interface and proven geometry help uphold part quality and consistency across long runs.
| ISO Code | SOET 160520-MS PH7740 |
| Insert Size and Shape | SO1605 |
| Product Line | HIFEED 06815 |
| Grade | PH7740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
| Operation Type (CTPT) | High Feed Milling |
| Tolerance Class Insert (TCINS) | E |
| Insert Shape Code (SC) | S |
| Inscribed Circle Diameter (IC) | 16.4 |
| Insert Thickness (S) | 5.26 |
| Corner Radius (RE) | 2 |
| Cutting Edge Effective Length (LE) | 0 |
| Insert Length (INSL) | 0 |
| Chip Breaker (CBMD) | MS |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Palbit SOET Inserts
View full collection →You are viewing PAL-1112221G6. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1112221X9 | SOET 160520-MS PHH930 | SO1605 | HIFEED 06815 | S | 5.26 | £16.81 | 5 days | |
| PAL-1112221G6 Viewing | SOET 160520-MS PH7740 | SO1605 | HIFEED 06815 | S | 5.26 | £15.74 | 5 days | |
| PAL-1112147X9 | SOET 13M520-MS PHH930 | SO13M5 | HIFEED 06690 | S | 5 | £14.23 | 5 days | |
| PAL-1112147G6 | SOET 13M520-MS PH7740 | SO13M5 | HIFEED 06690 | S | 5 | £13.36 | 5 days | |
| PAL-11121494H | SOET 080315-MS PHF530 | SO0803 | HIFEED 06410 | S | 3.47 | £15.19 | 5 days | |
| PAL-1112149G6 | SOET 080315-MS PH7740 | SO0803 | HIFEED 06410 | S | 3.47 | £11.44 | 5 days | |
| PAL-1112149X9 | SOET 080315-MS PHH930 | SO0803 | HIFEED 06410 | S | 3.47 | £12.31 | In Stock |
