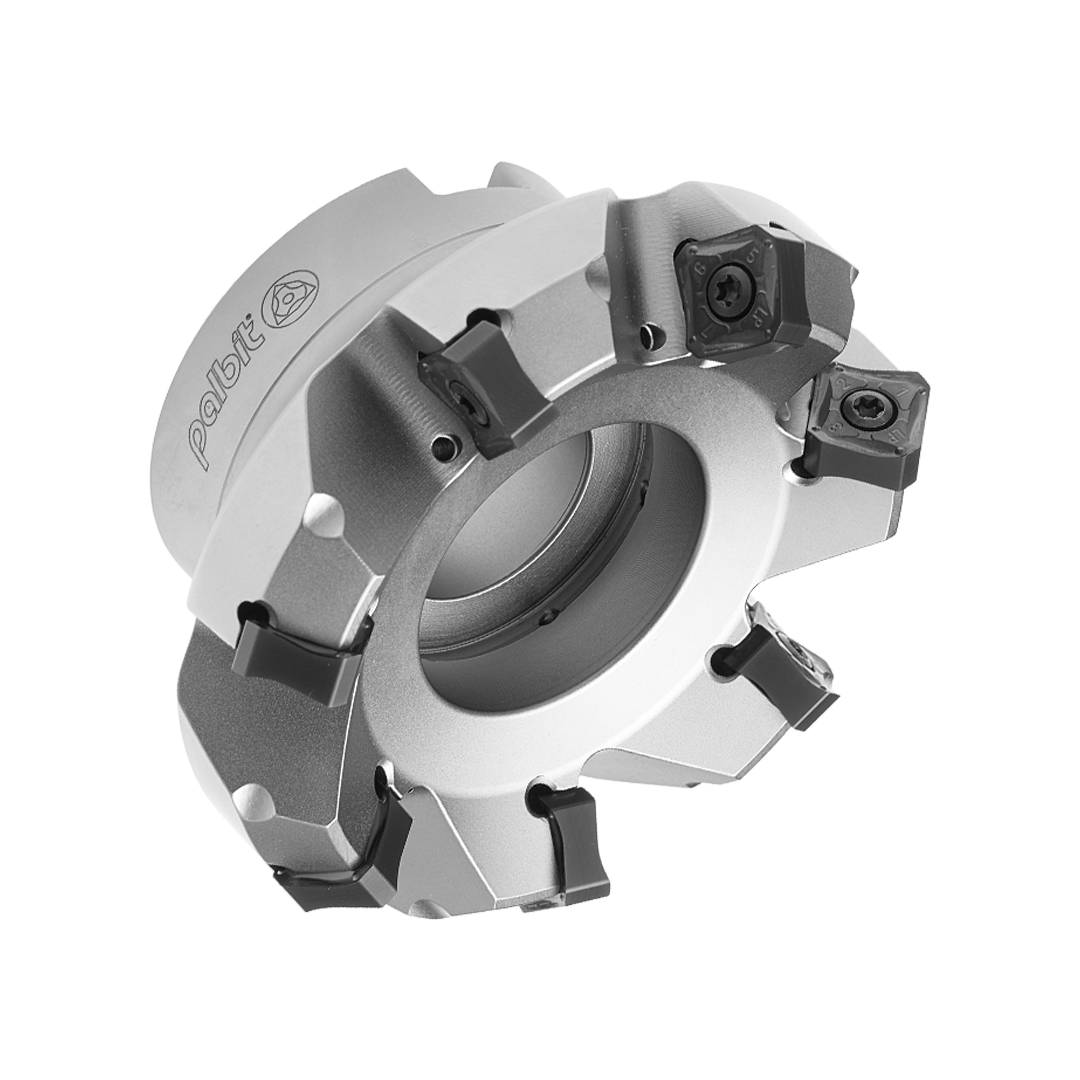

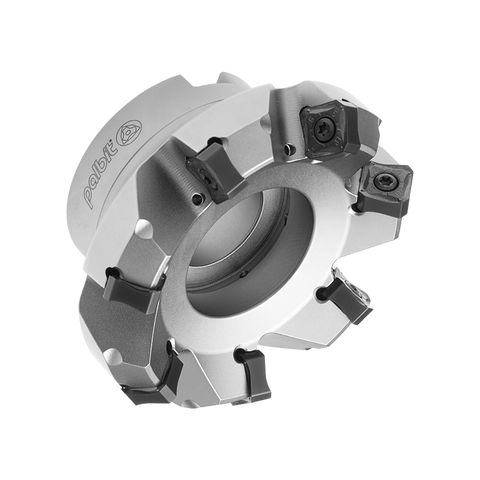

Palbit Arbor Mounting Holder - For SN1206 ON0505 Inserts - 80mm Cutter Diameter - 181067200

Palbit Arbor Mounting Holder - For SN1206 ON0505 Inserts - 80mm Cutter Diameter - 181067200

SKU:PAL-181067200
Palbit Arbor Mounting Holder for SN1206 ON0505 Inserts is a precision mounting solution for versatile grooving and parting in CNC operations. Designed for an 80 mm cutter diameter, it securely ac... Read more ↓
Specification
Insert Size & ShapeSN1206 ON0505
Depth of Cut Maximum (APMX)6
Cutting Item Count (CICT)10
Connection Diameter (DCONMS)27
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)60
View all specifications ↓
£353.45
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Arbor Mounting Holder for SN1206 ON0505 Inserts is a precision mounting solution for versatile grooving and parting in CNC operations. Designed for an 80 mm cutter diameter, it securely accepts SN1206 and ON0505 inserts to deliver rigid, accurate cutting performance in demanding production environments.

  • Secure Insert Retention: Keeps SN1206 and ON0505 inserts locked in place under heavy cutting loads, reducing vibration and helping maintain tight tolerances for consistent workpiece quality.
  • Rigid, Durable Body: Engineered to minimize deflection and wear, delivering long tool life and reliable performance in challenging production environments.
  • Versatile Grooving & Parting Compatibility: Optimized for grooving and parting with SN1206 and ON0505 inserts, enabling quick changeovers, stable cuts, and consistent results across jobs.

By delivering secure insert retention, a rigid body, and versatile grooving/parting capability, this holder minimizes downtime, reduces scrap, and supports consistent, high‑quality finishes across repeated runs. Install, set, and go with confidence—your CNC workflow benefits from steadier cuts, longer tool life, and fewer tool changes.

Insert Size & Shape SN1206 ON0505
Depth of Cut Maximum (APMX) 6
Cutting Item Count (CICT) 10
Connection Diameter (DCONMS) 27
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 60
Tool Cutting Edge Angle (KAPR) 45
Cutting Diameter (DC) 80
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 87.6
Functional Length (LF) 50
Axial Rake Angel (GAMP) -6
Rdial Rake Angle (GAMF) -9

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: PLUS 90945 - Arbor Mounting

View full collection →

You are viewing PAL-181067200. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181067200 ViewingSN1206 ON0505Facing CuttersArbor Mounting8050£353.45 5 days
PAL-181048400 SN1206 ON0505Facing CuttersArbor Mounting8050£261.90 5 days
PAL-181067100 SN1206 ON0505Facing CuttersArbor Mounting6340£324.48 5 days
PAL-181048300 SN1206 ON0505Facing CuttersArbor Mounting6340£229.03 5 days
PAL-181067000 SN1206 ON0505Facing CuttersArbor Mounting5040£229.03 5 days
PAL-181048200 SN1206 ON0505Facing CuttersArbor Mounting5040£183.07 5 days
PAL-181064700 SN1206 ON0505Facing CuttersArbor Mounting25063£1,537.36 5 days
PAL-181052800 SN1206 ON0505Facing CuttersArbor Mounting20063£1,038.69 5 days
PAL-181048700 SN1206 ON0505Facing CuttersArbor Mounting16063£540.39 5 days
PAL-181048600 SN1206 ON0505Facing CuttersArbor Mounting12563£353.45 5 days
PAL-181067300 SN1206 ON0505Facing CuttersArbor Mounting10050£540.39 5 days
PAL-181048500 SN1206 ON0505Facing CuttersArbor Mounting10050£324.48 5 days
