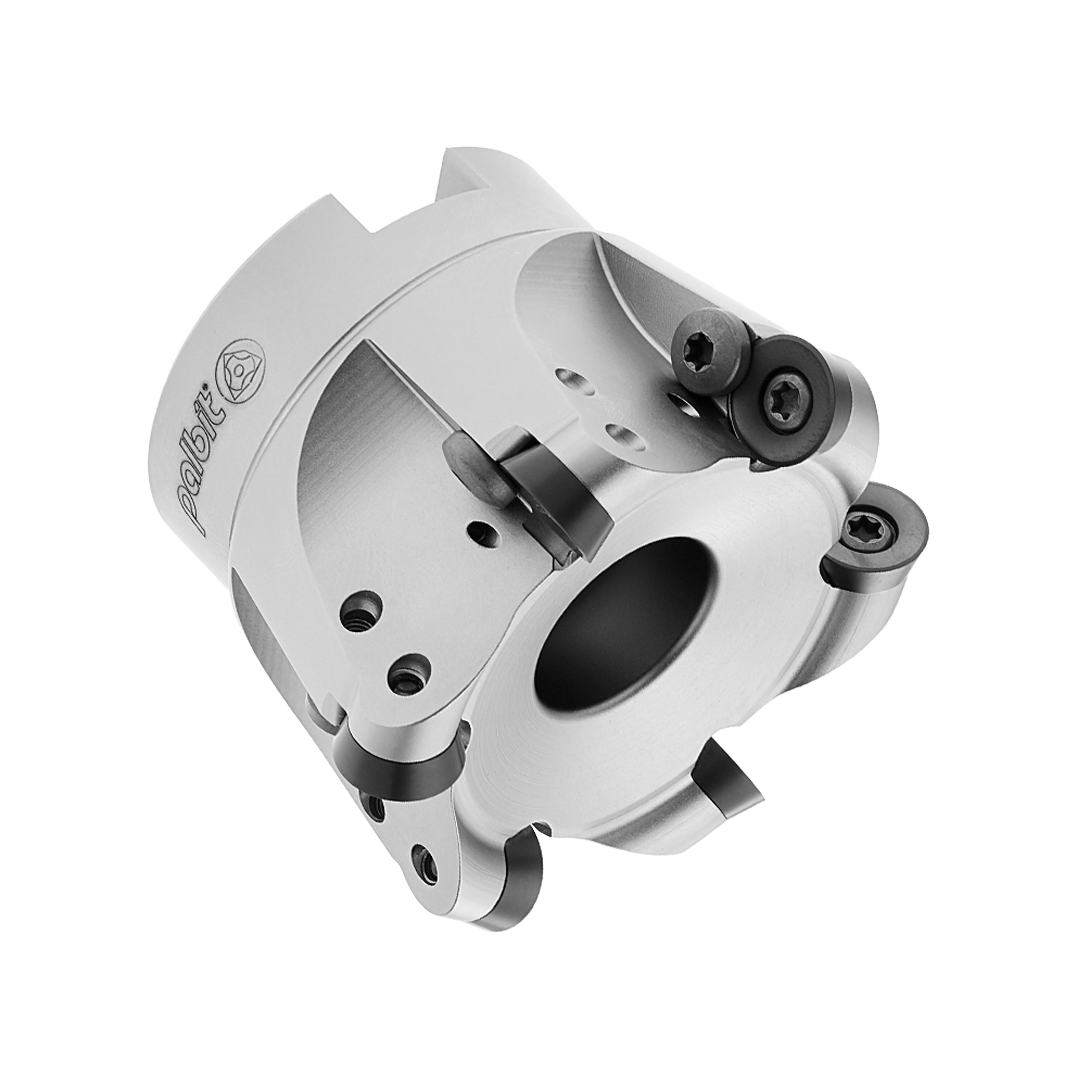

Palbit Arbor Mounting Holder - For RD1003 Inserts - 32mm Cutter Diameter - 181010600
| Insert Size & Shape | RD1003 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 44 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 36 |
Learn more about Klarna
Palbit Arbor Mounting Holder for RD1003 inserts is a precision attachment engineered to optimize turning and grooving on CNC machines. Designed for a 32mm cutter diameter, it delivers secure insert seating, exceptional rigidity, and consistent performance in demanding production environments.
- Compatibility with RD1003 Inserts: precisely designed interface ensures proper seating and alignment for reliable tool performance.
- Secure Clamping System: robust insert clamp minimizes movement during high-speed cutting for stable operation.
- Rigid Housing: engineered body minimizes deflection and vibration to maintain accuracy under load.
- 32mm Cutter Diameter Support: specifically shaped to accommodate 32mm cutters for controlled geometry and finish.
- Repeatable Precision: maintains consistent insert position across cycles for uniform results.
By combining precise insert clamping with a stiff, well‑engineered body, this holder extends tool life, improves surface finish, and reduces downtime in high‑speed turning and grooving jobs. Trusted by engineers and machinists, it delivers dependable performance in demanding CNC production environments.
| Insert Size & Shape | RD1003 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 44 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 36 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 32 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 42 |
| Functional Length (LF) | 44 |
| Axial Rake Angel (GAMP) | 0 |
| Rdial Rake Angle (GAMF) | -5 |
